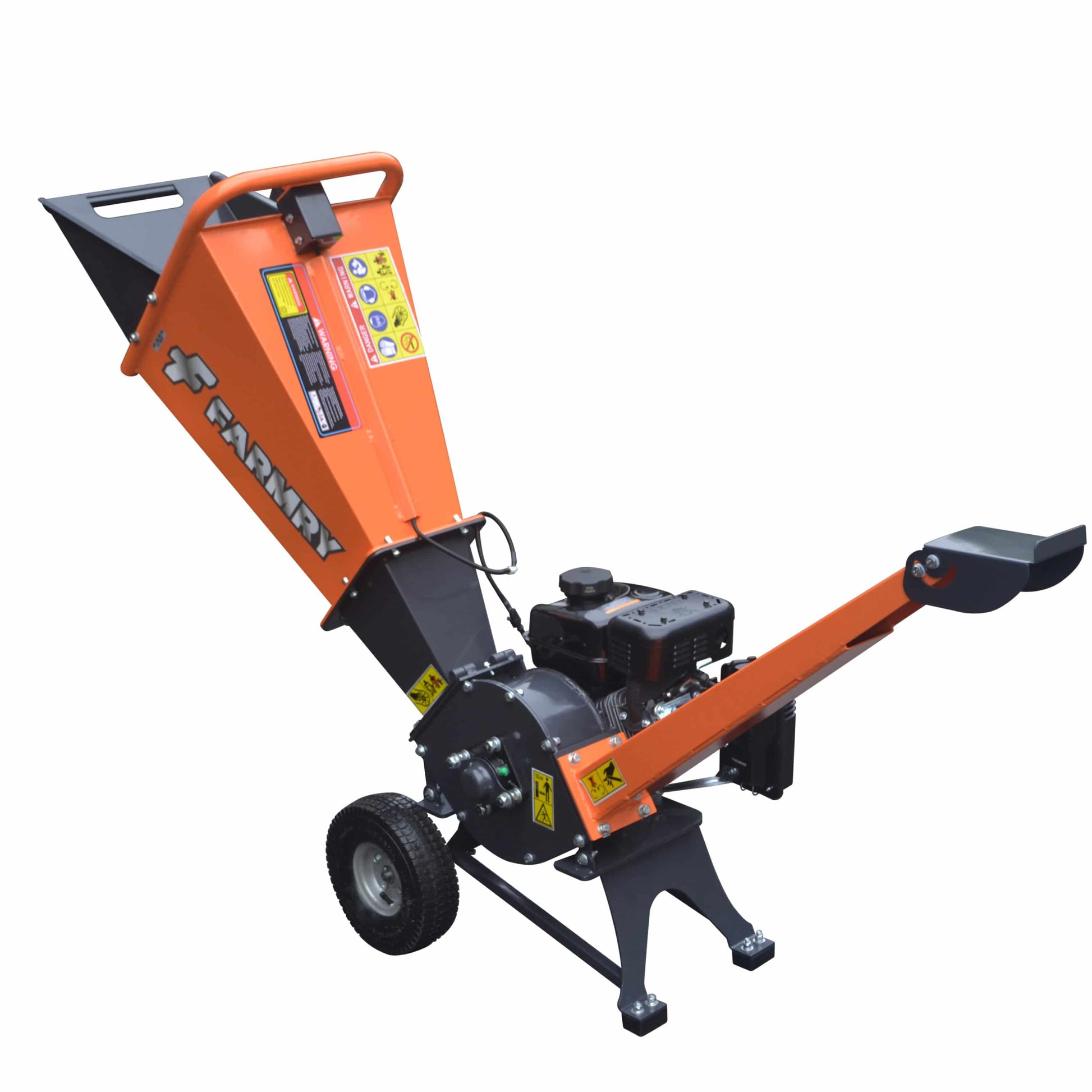

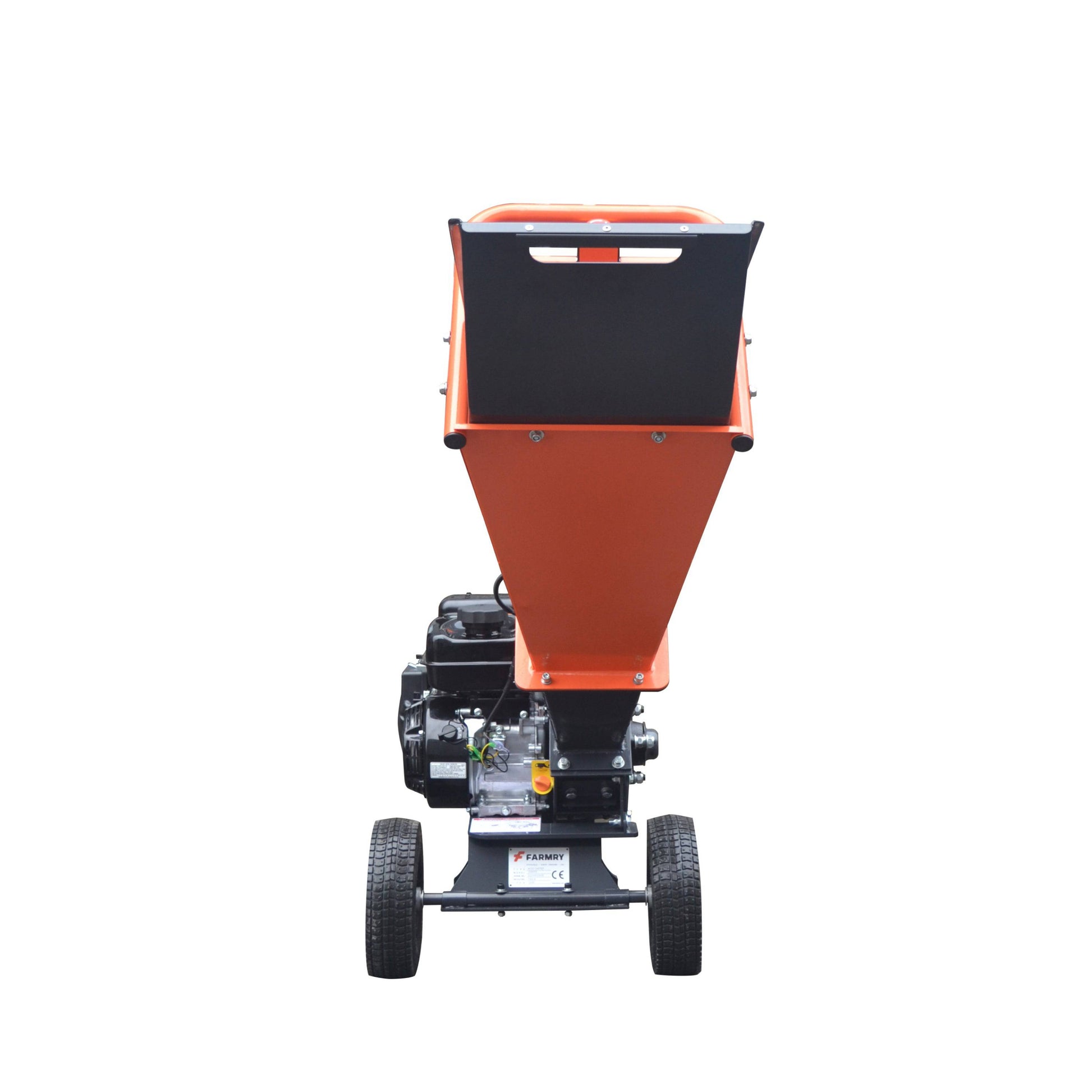

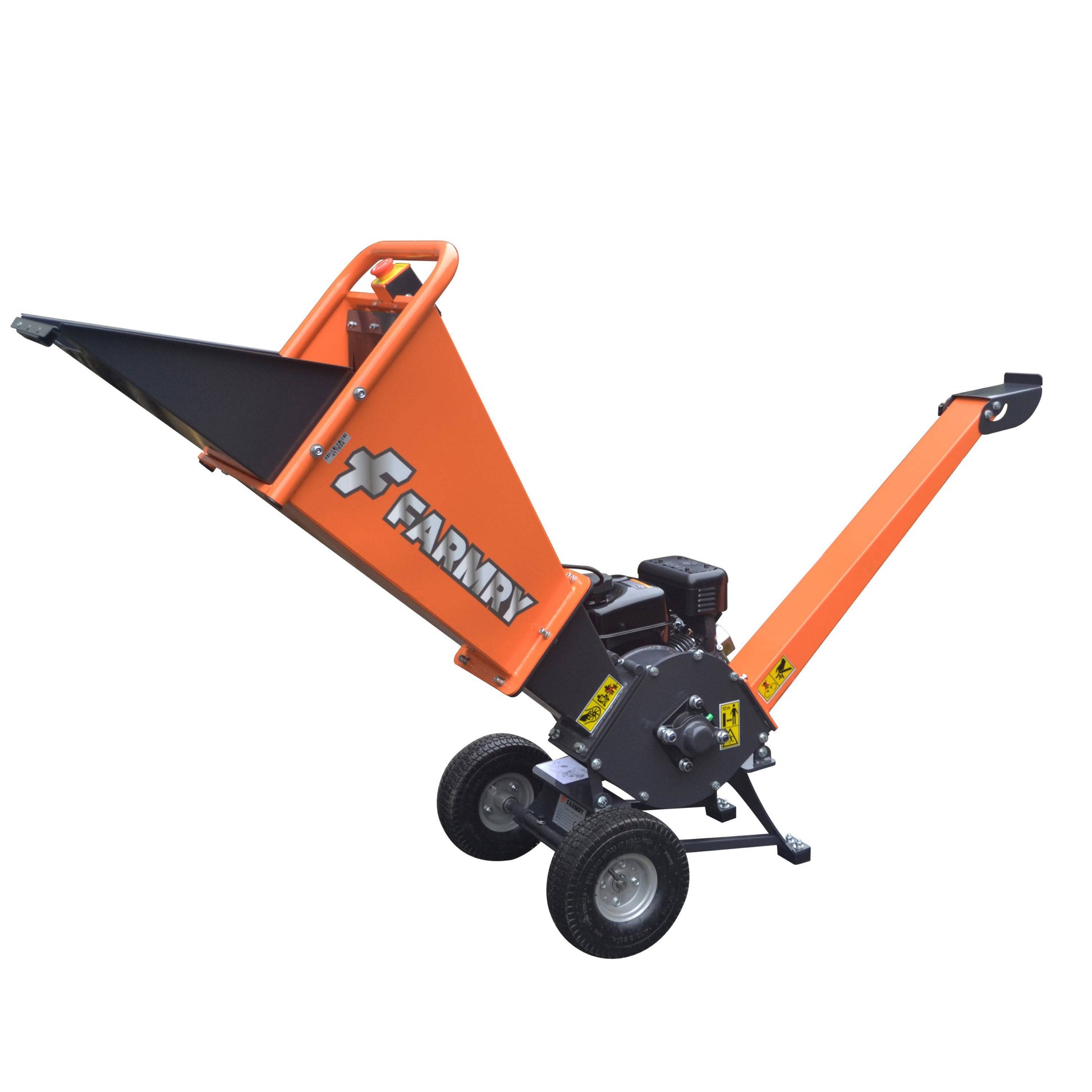

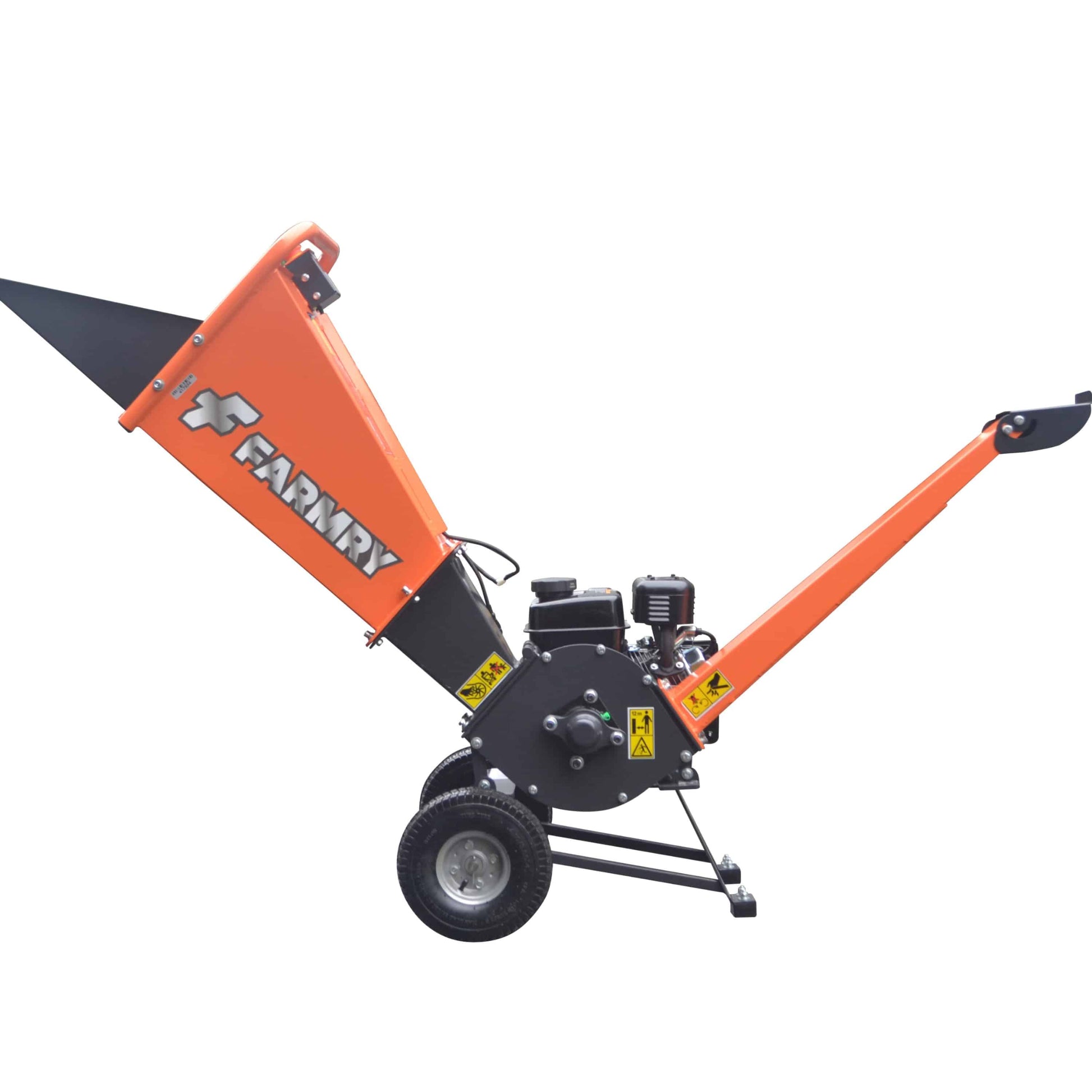

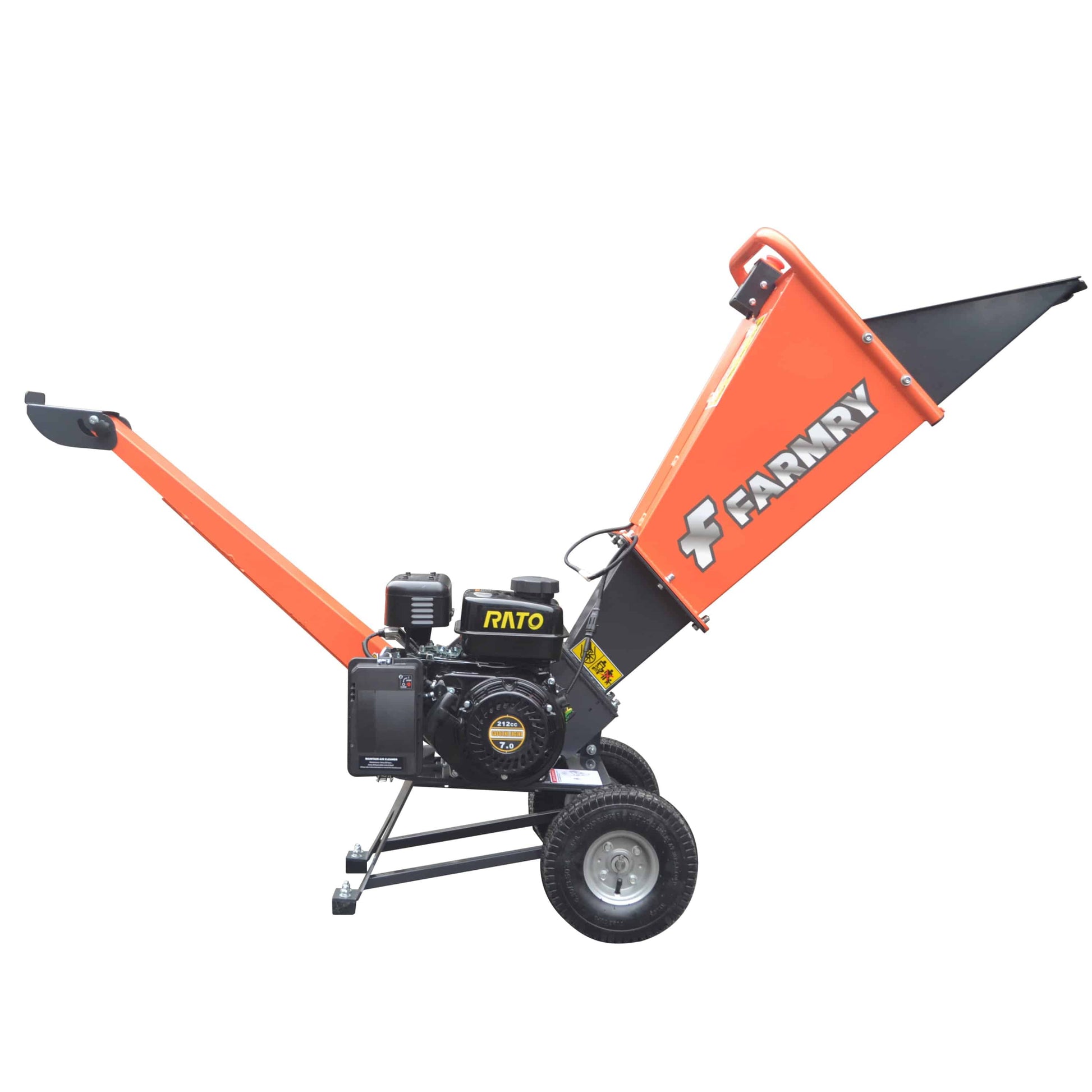

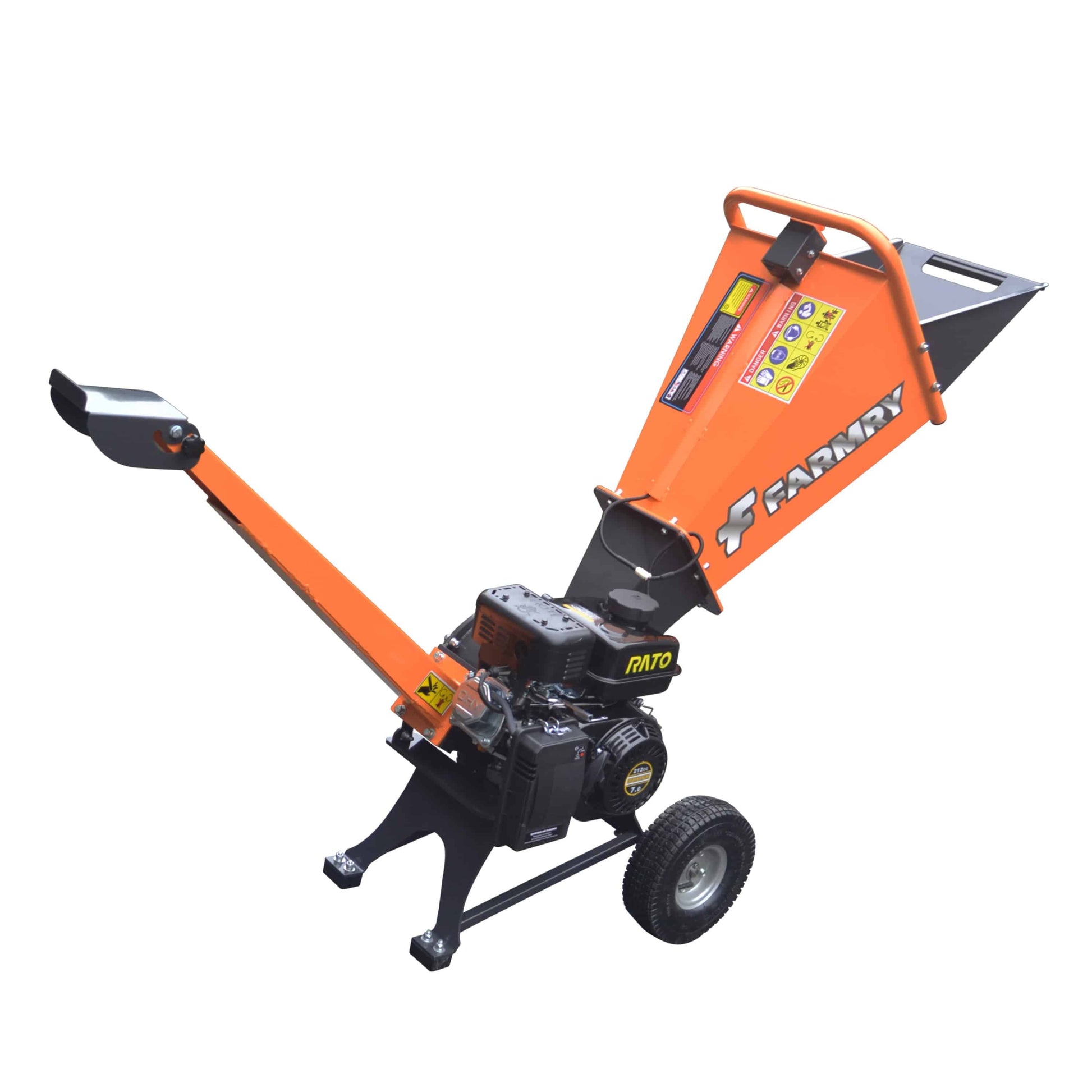

| MODEL NAME |
WOOD CHIPPER |
Drum Size |
Diameter: 9.1 inch Length: 4 inch |
| MODEL NO. |
DR-GS-65S |
Drum Rotation speed |
3600RPM |

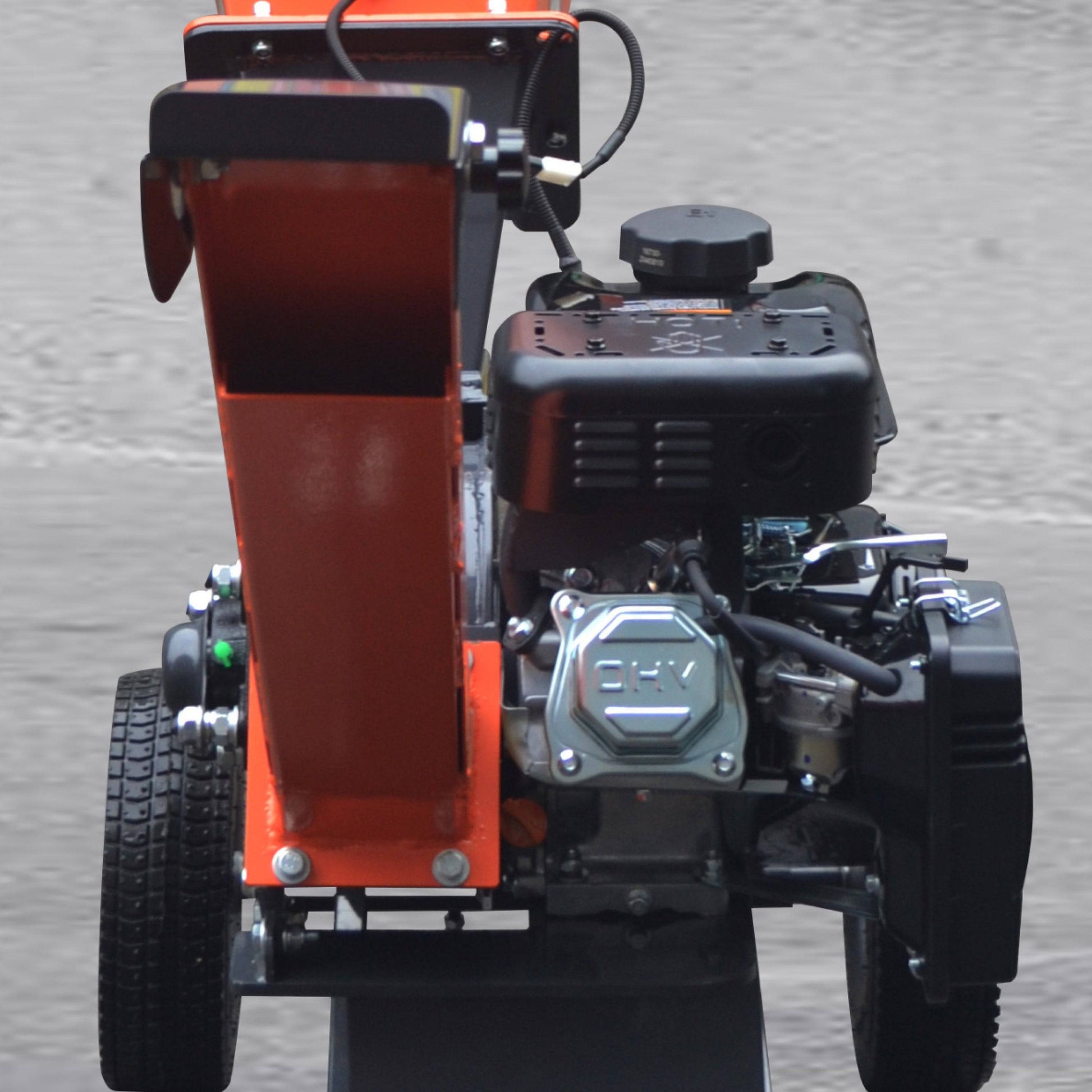

| Engine |
Rato |
Tow bar |
optional |
| Power |
7HP |
Wheel |
4.1/3.5-4 |
| Displacement |
212cc |
Drive train |
dual v belt drive |
| Start |
pull |
Clutch mechanism |
direct drive |
| Emergency stop device |
YES |
Product size, L ×W× H |
59.1*45.4*47.4 inch |
| Certificate |
SGS CE |
Weight(less fuel/water containers) |
193.6lbs |
| Chipping capacity |
2 inch |
Crate dimensions L×W×H |
3.1*22.2*26 |
| Chipping disc/drum diameter |
9.1 inch |
Loading Qty |
72pcs/20ft 204 pcs/40HQ |
| Infeed throat opening |
3.9*4.1 inch |
Tool Bo* |
optional |
| Feed hopper size |
13.4*13.8 inch |
360°discharge |
No |
| Hinge on Feed hopper |
press-button control |
Other Engine option |
Ducar, loncin, B&S, Kohler, Honda |
| Discharge chute height |
27.6 to 34.6 inch |
Typical schredded wood |
length: 0-10mm thickness:0-3mm |
| Cutting type |
twin blade drum system |
Working volume |
1.0CBM/hour to 2.0CBM/hour |
| Cutting blades |
double edge reversible hardened steel cutting blade |
Heigt of the entry bucket |
44.1 inch |
| Number of Blades |
2 |
Height of the e*it |
27.6 inch |
| Counter blade/Anvil size |
3.9*1.2*0.6 inch |
Fuel comsumption |
2.35L(0.62gal)/hour |
| Blade size |
3.9*2.2*0.2 inch |
|
|
