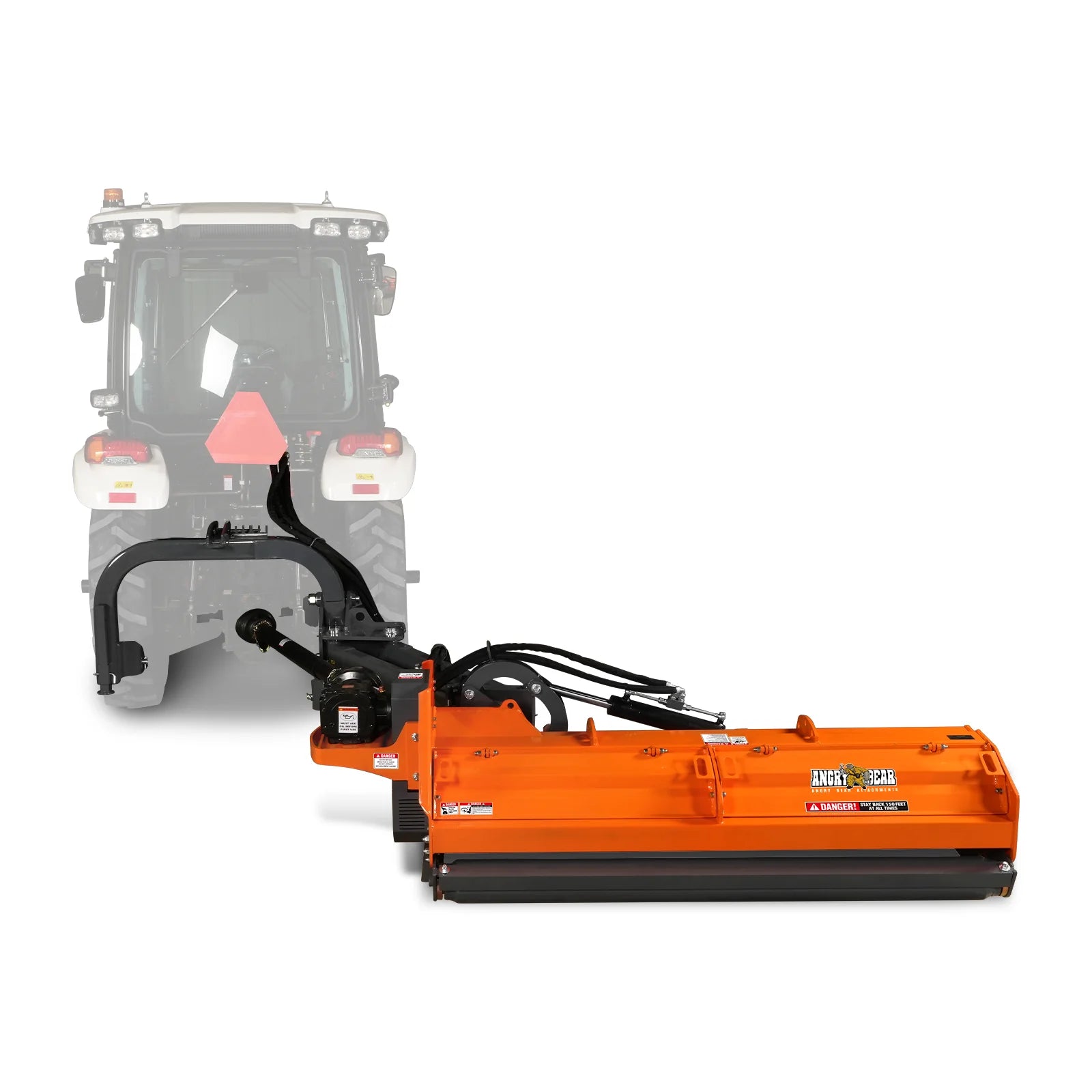

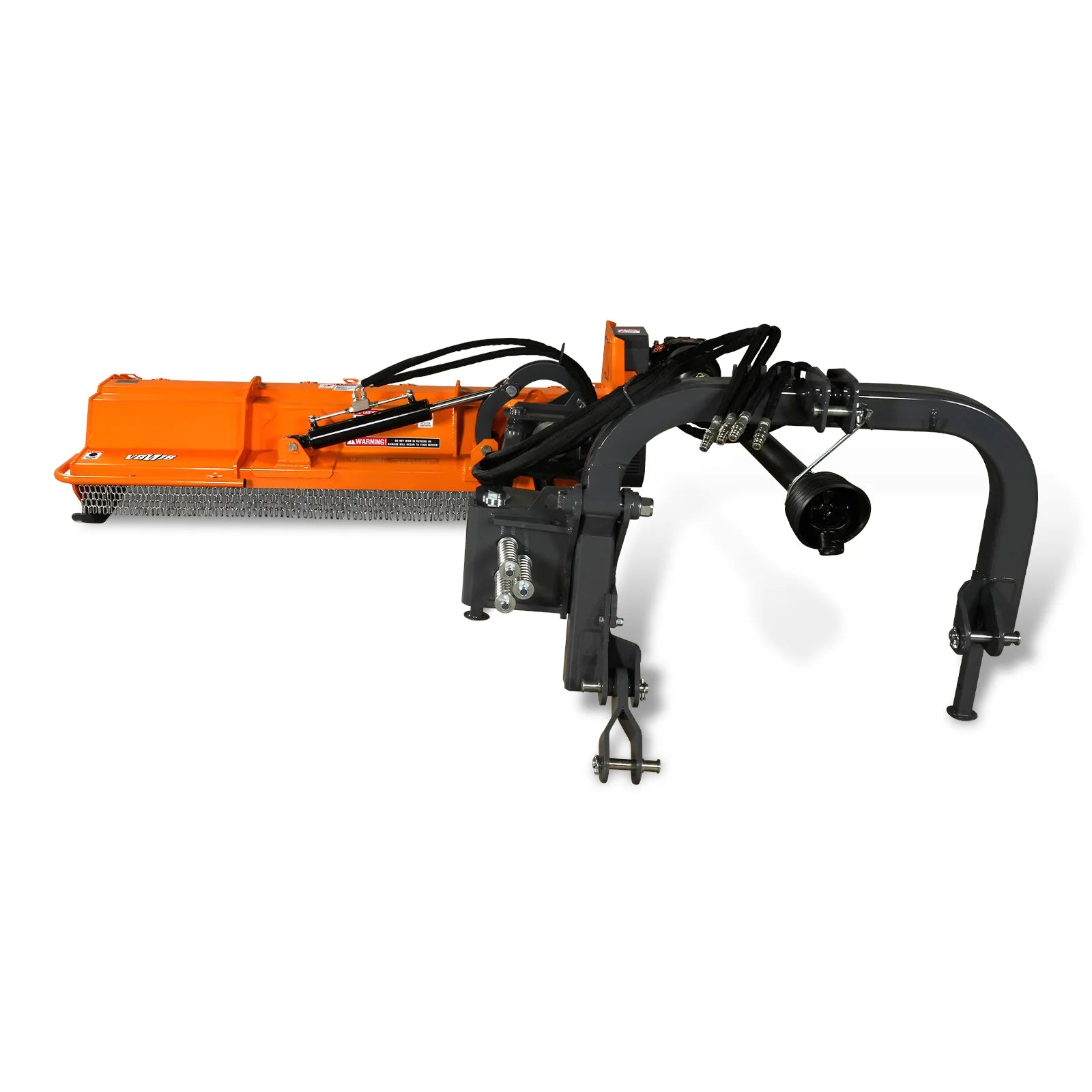

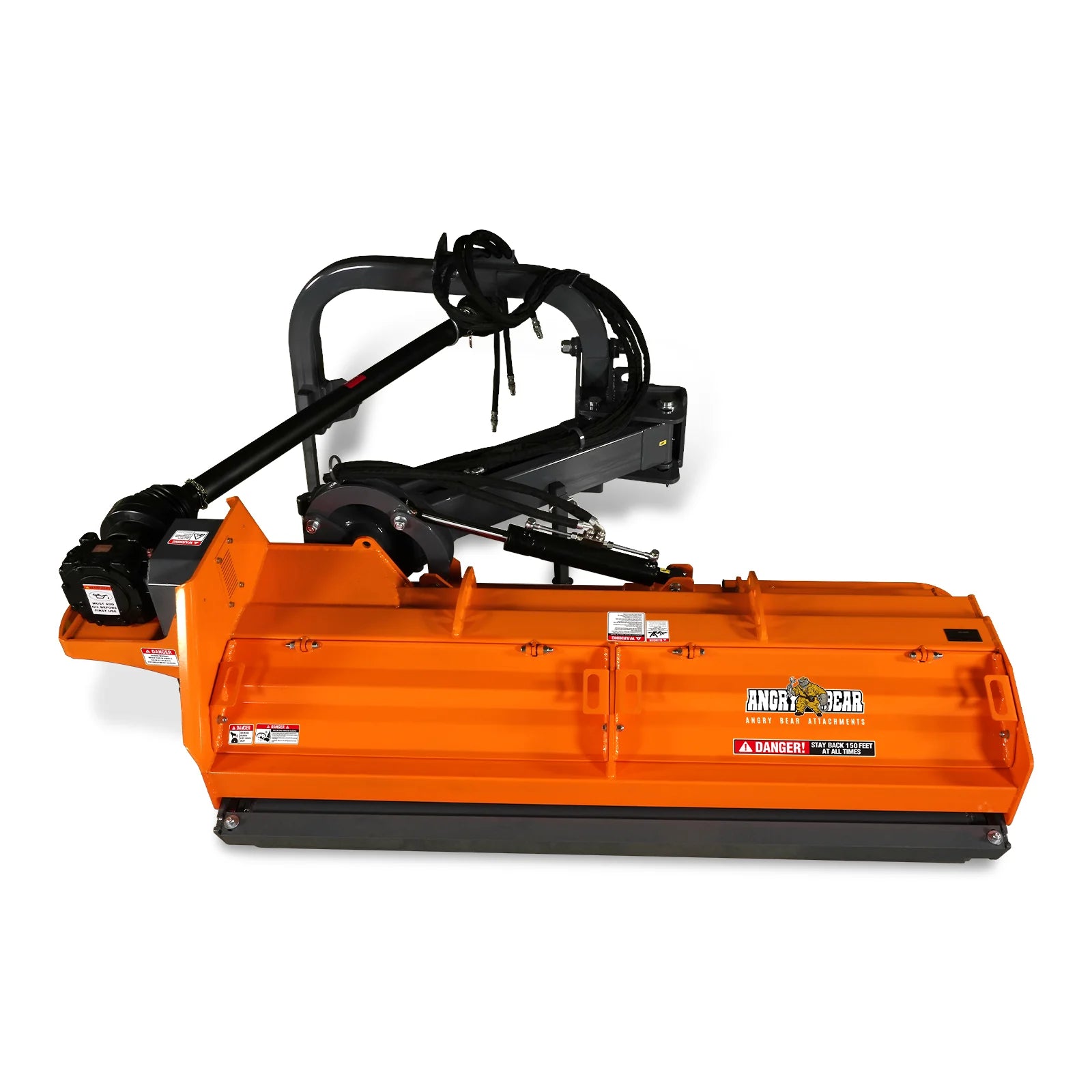

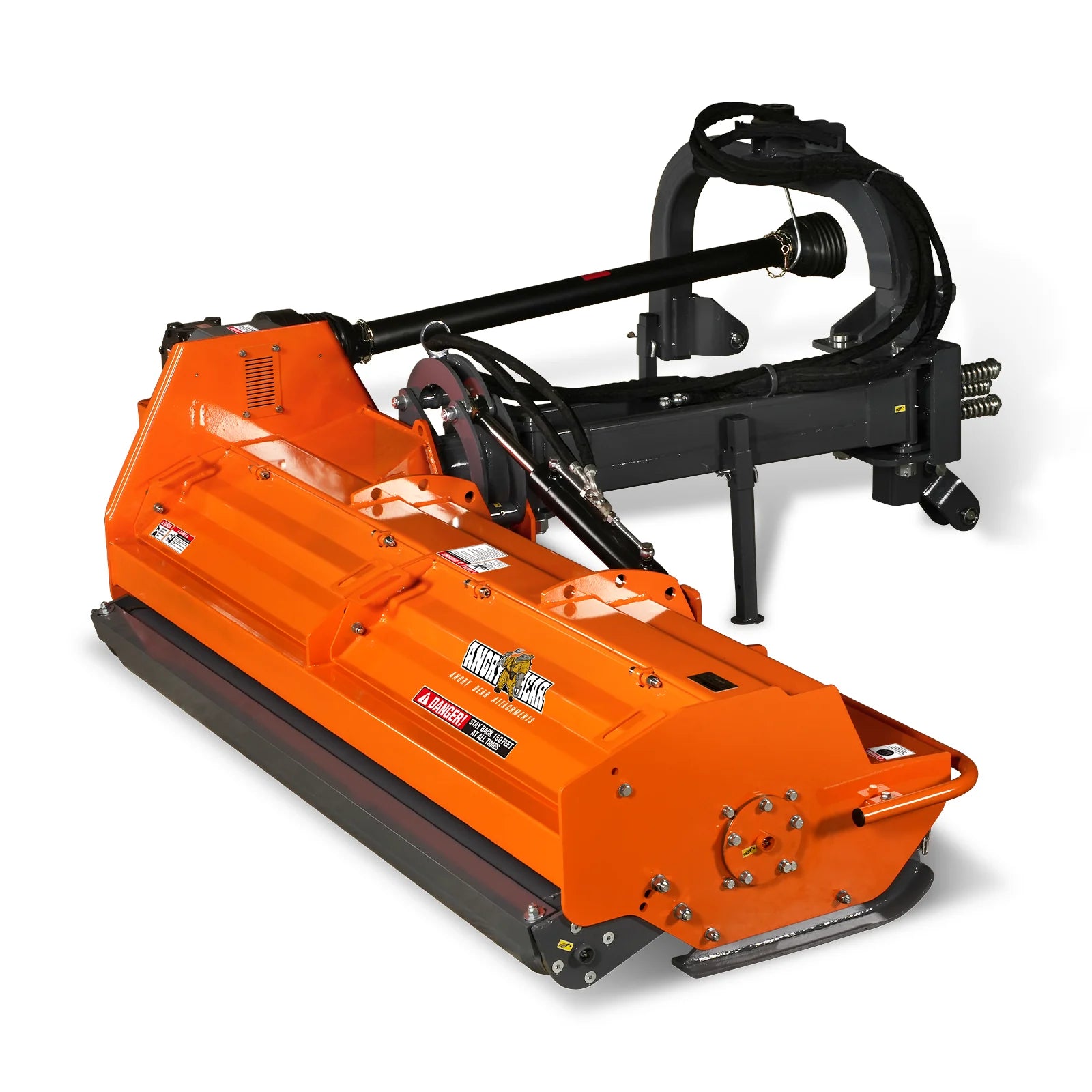

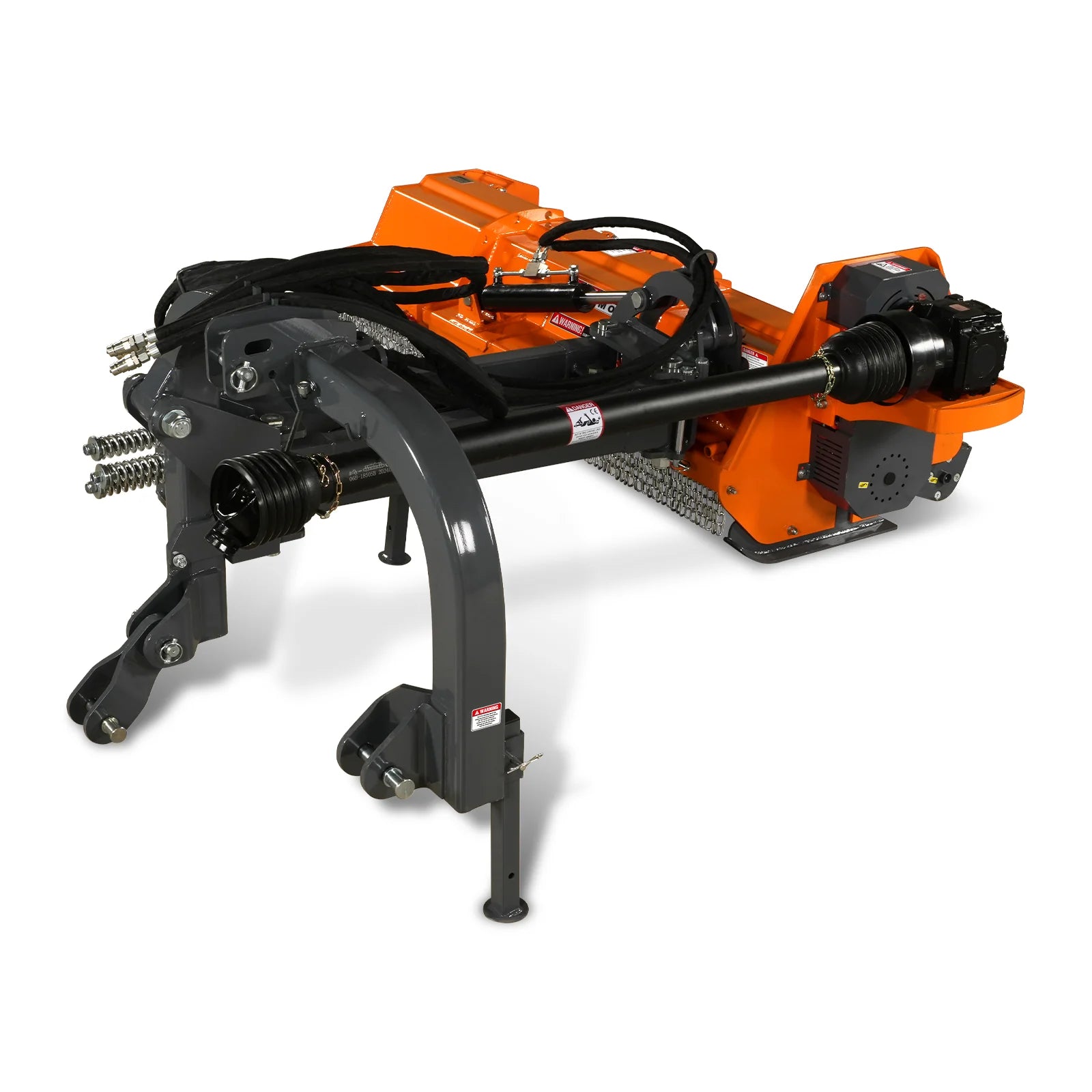

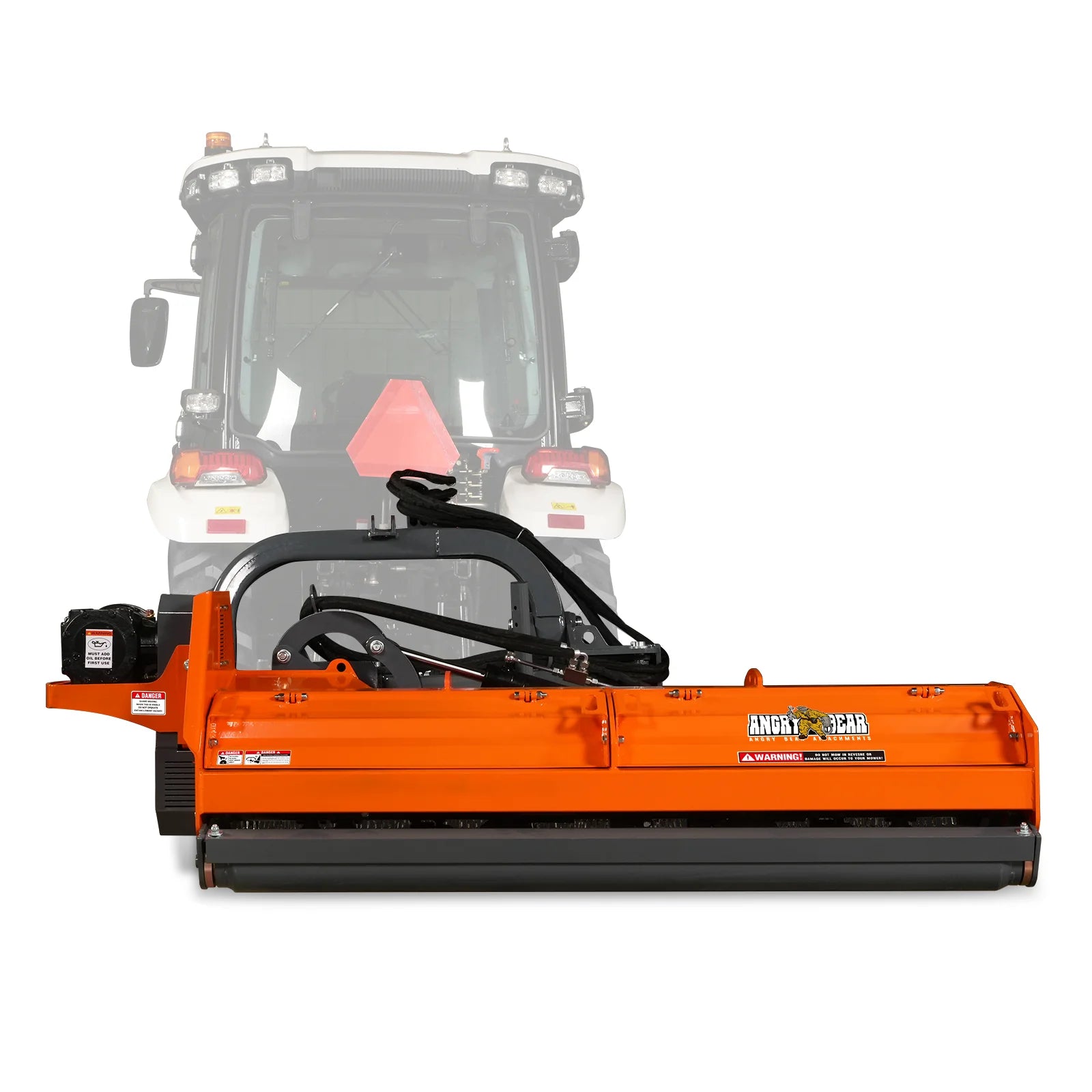

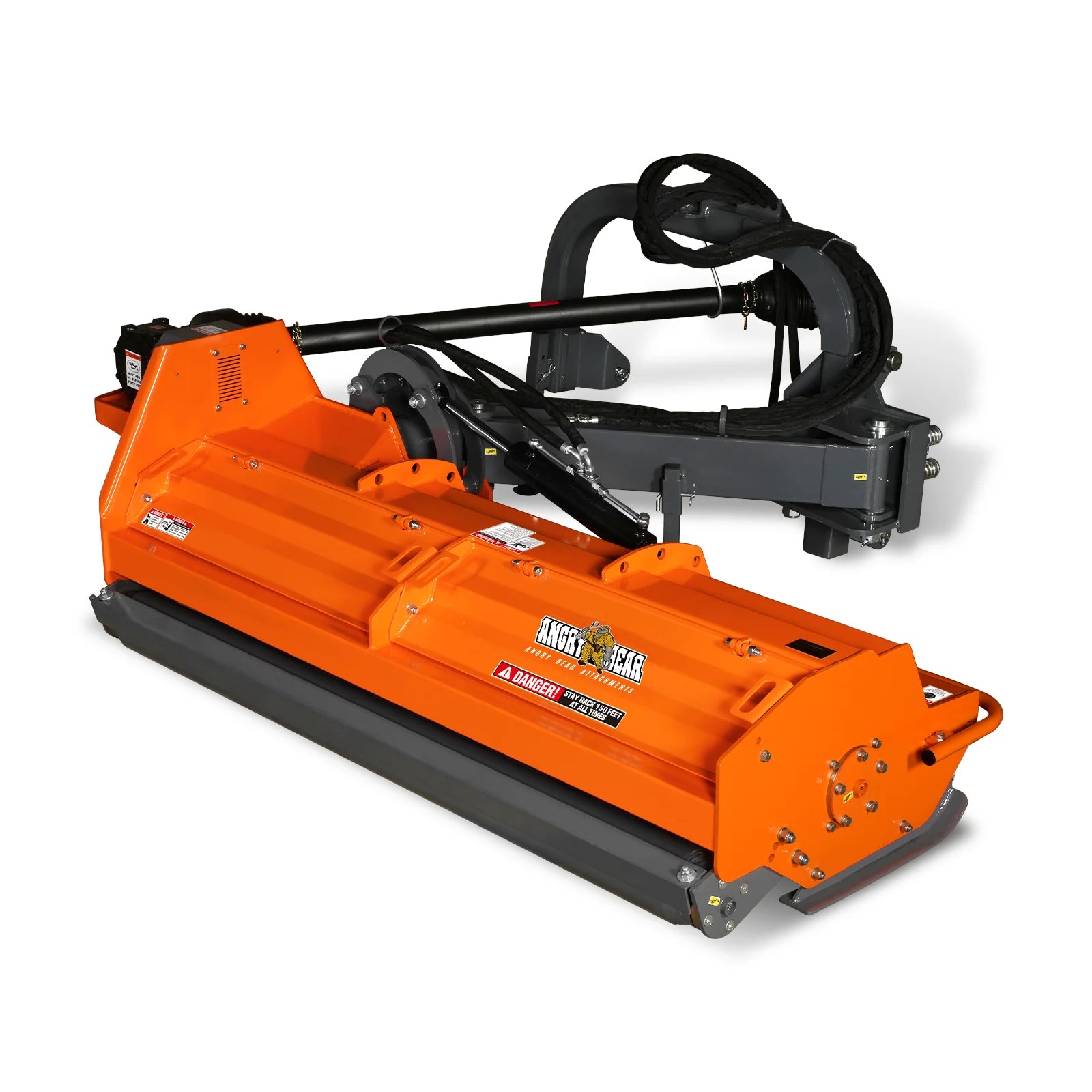

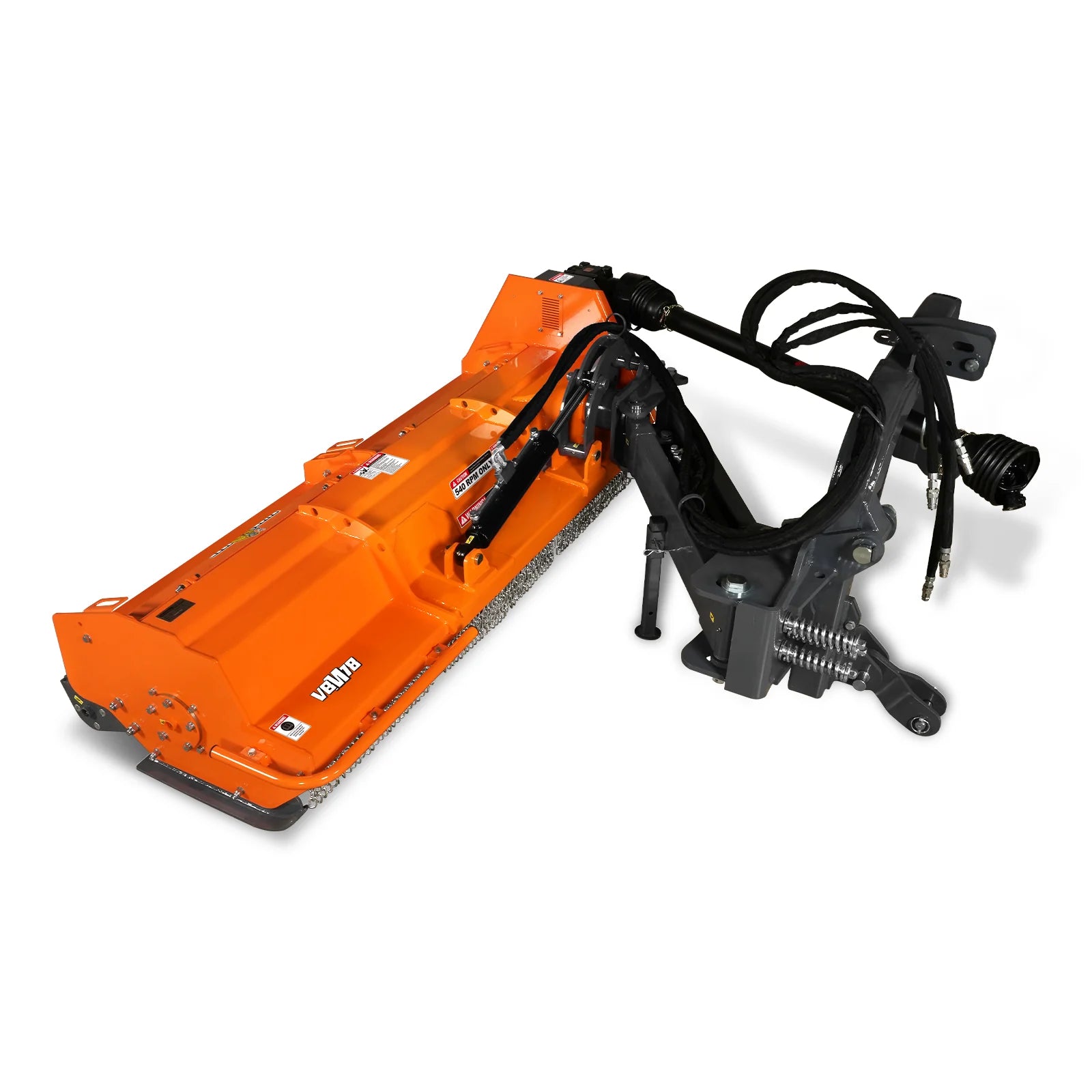

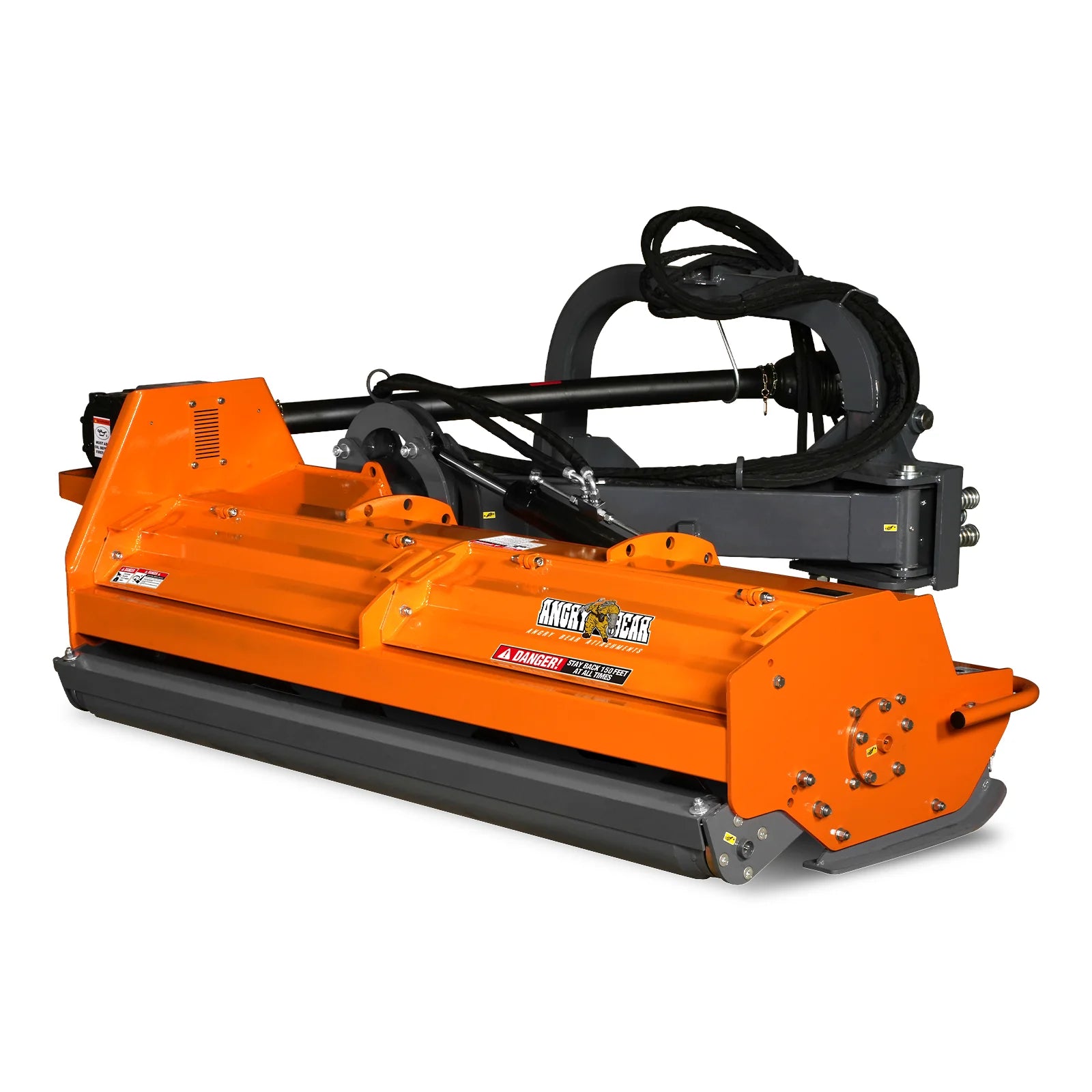

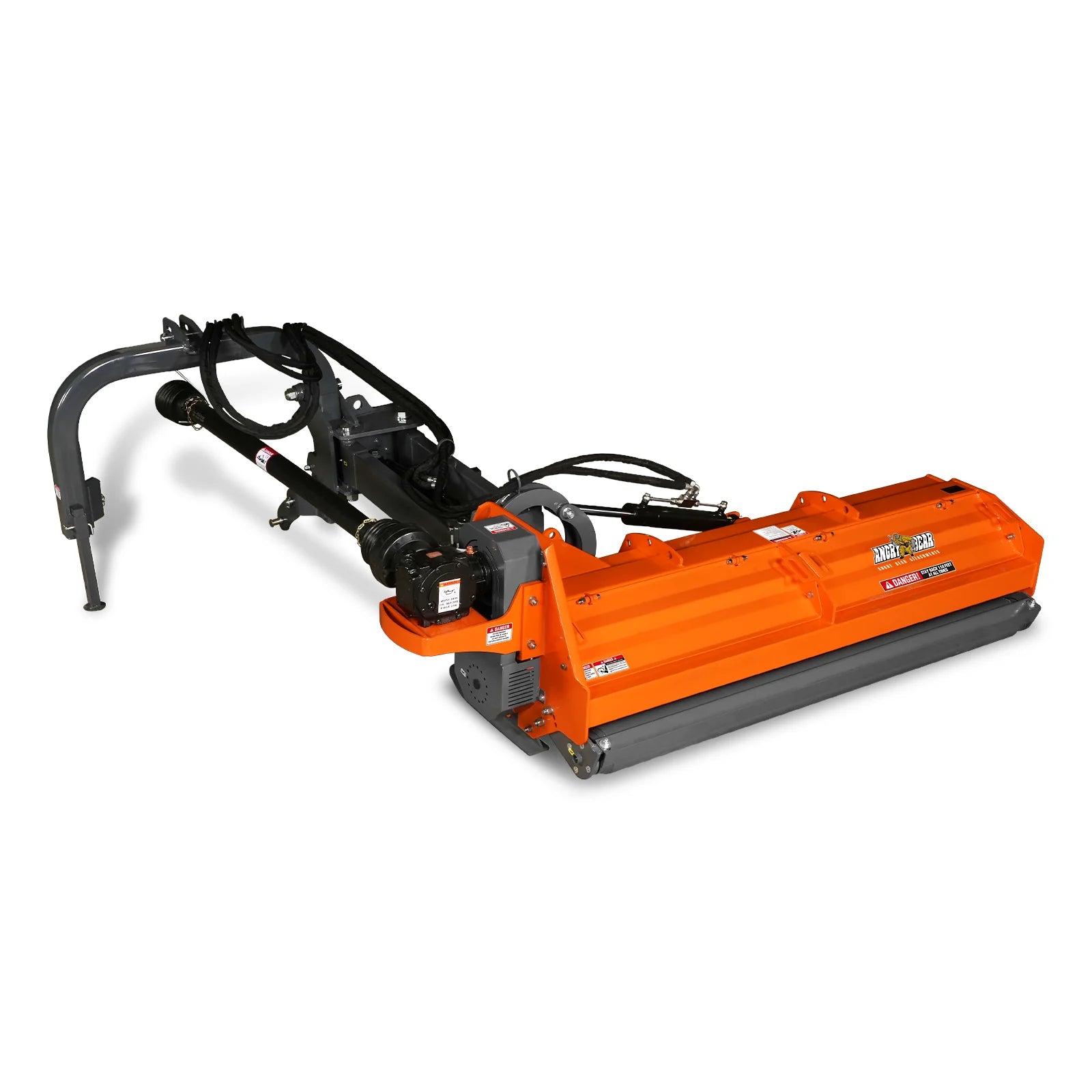

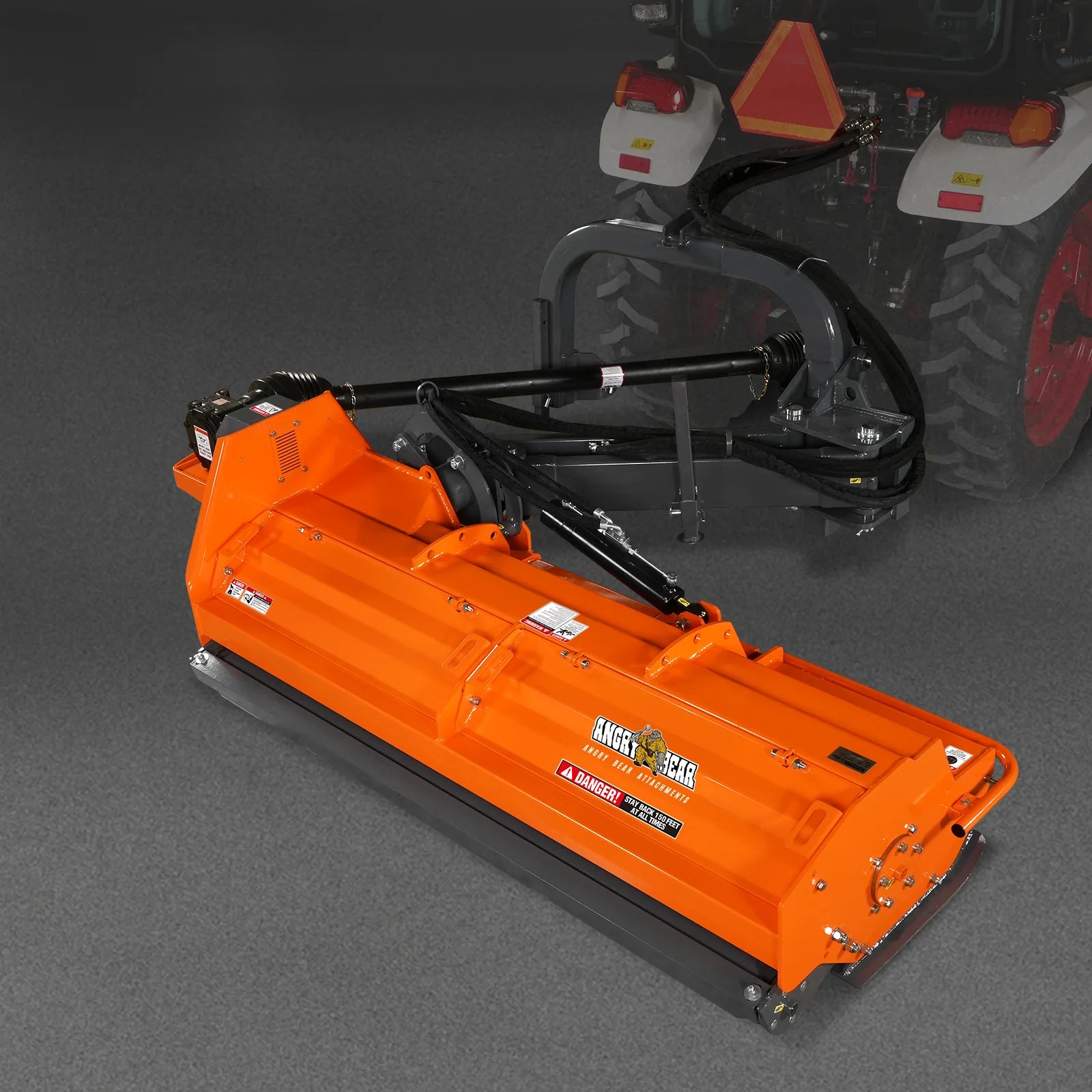

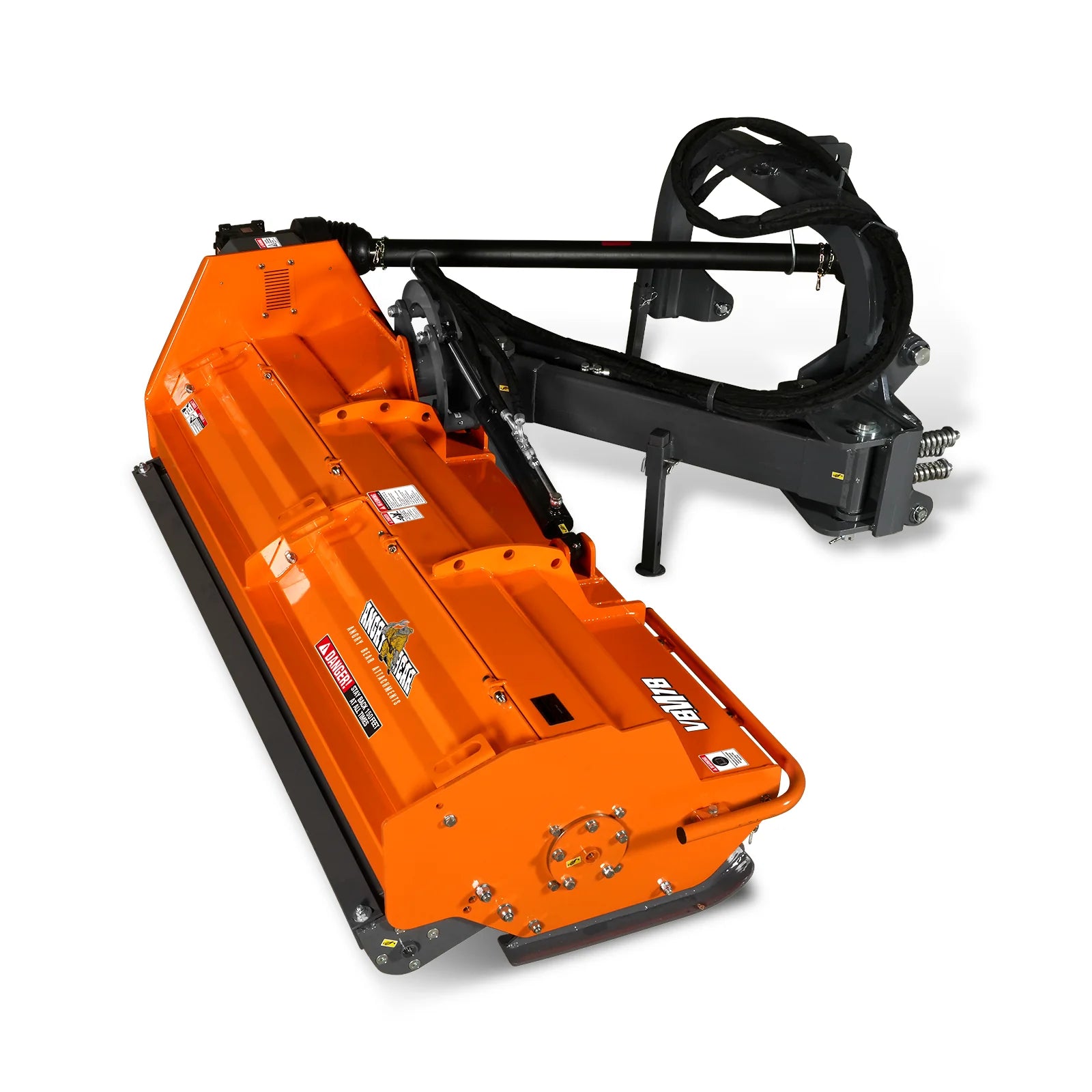

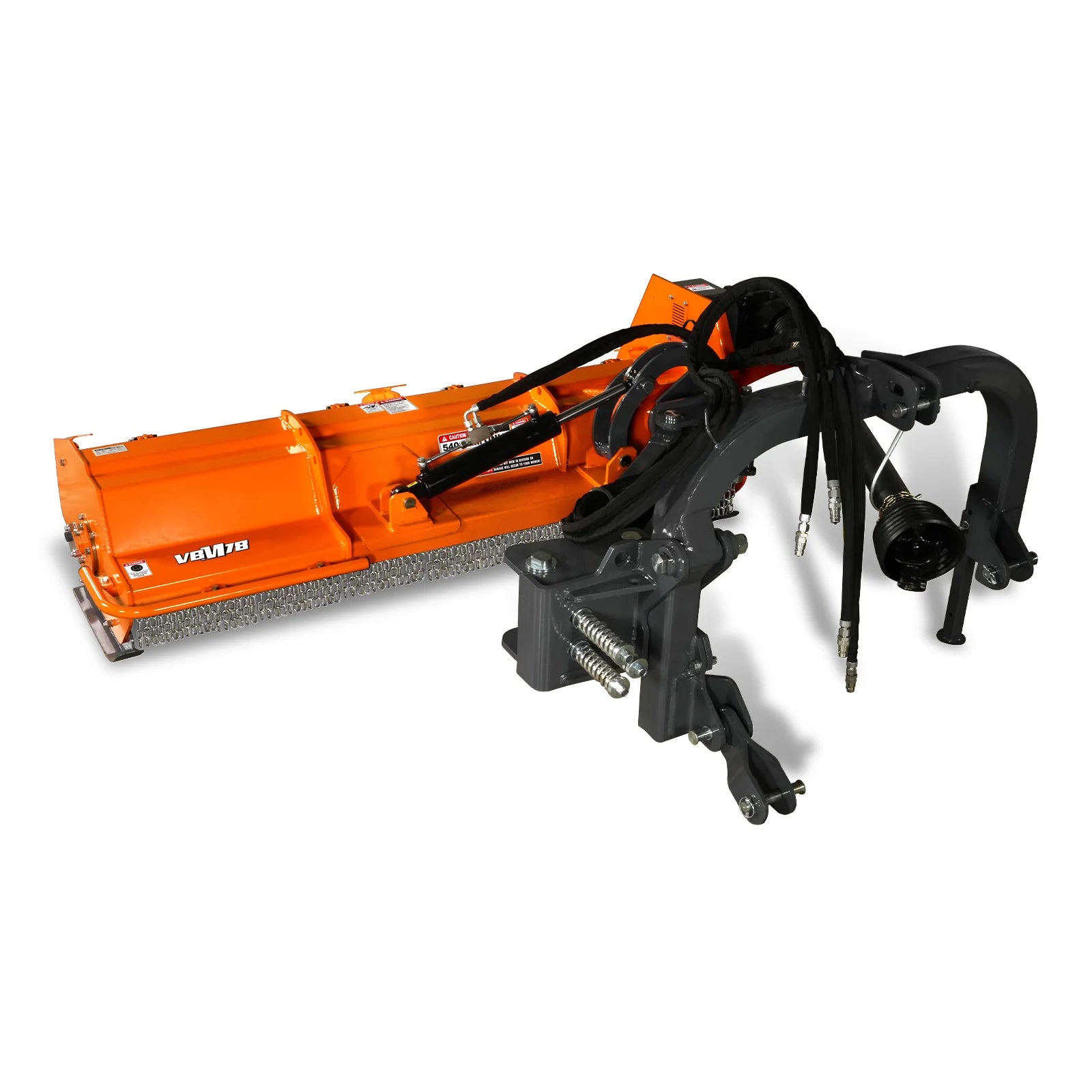

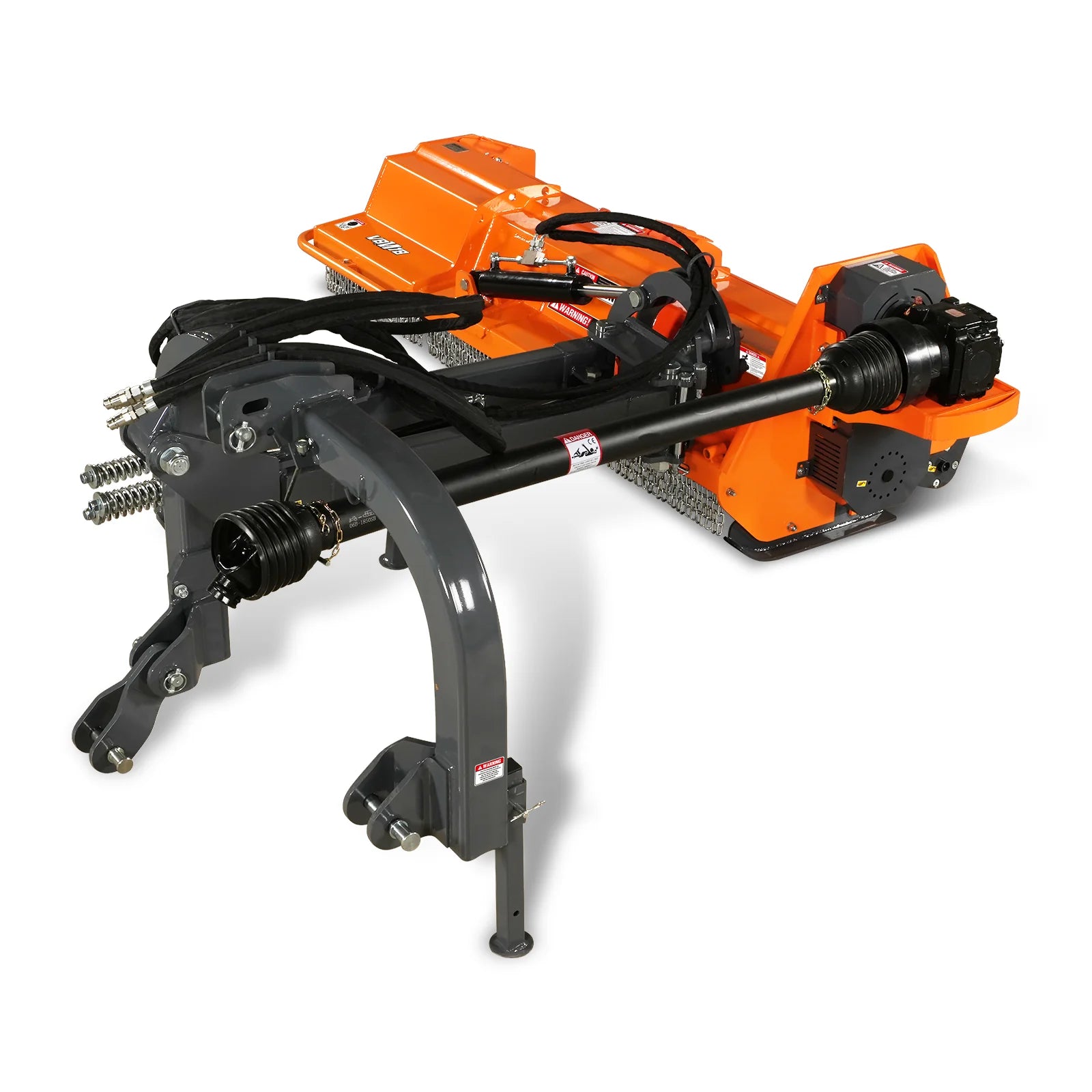

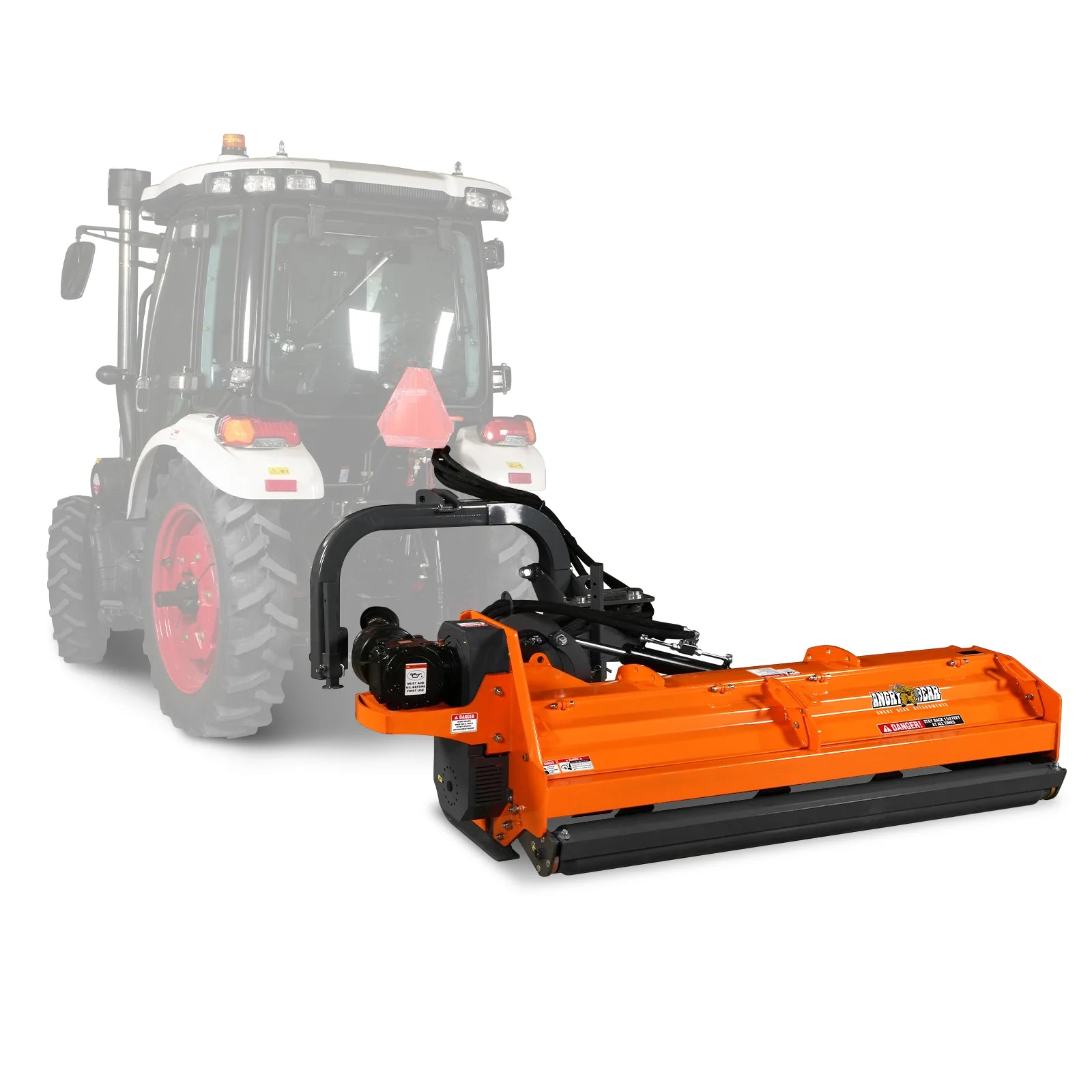

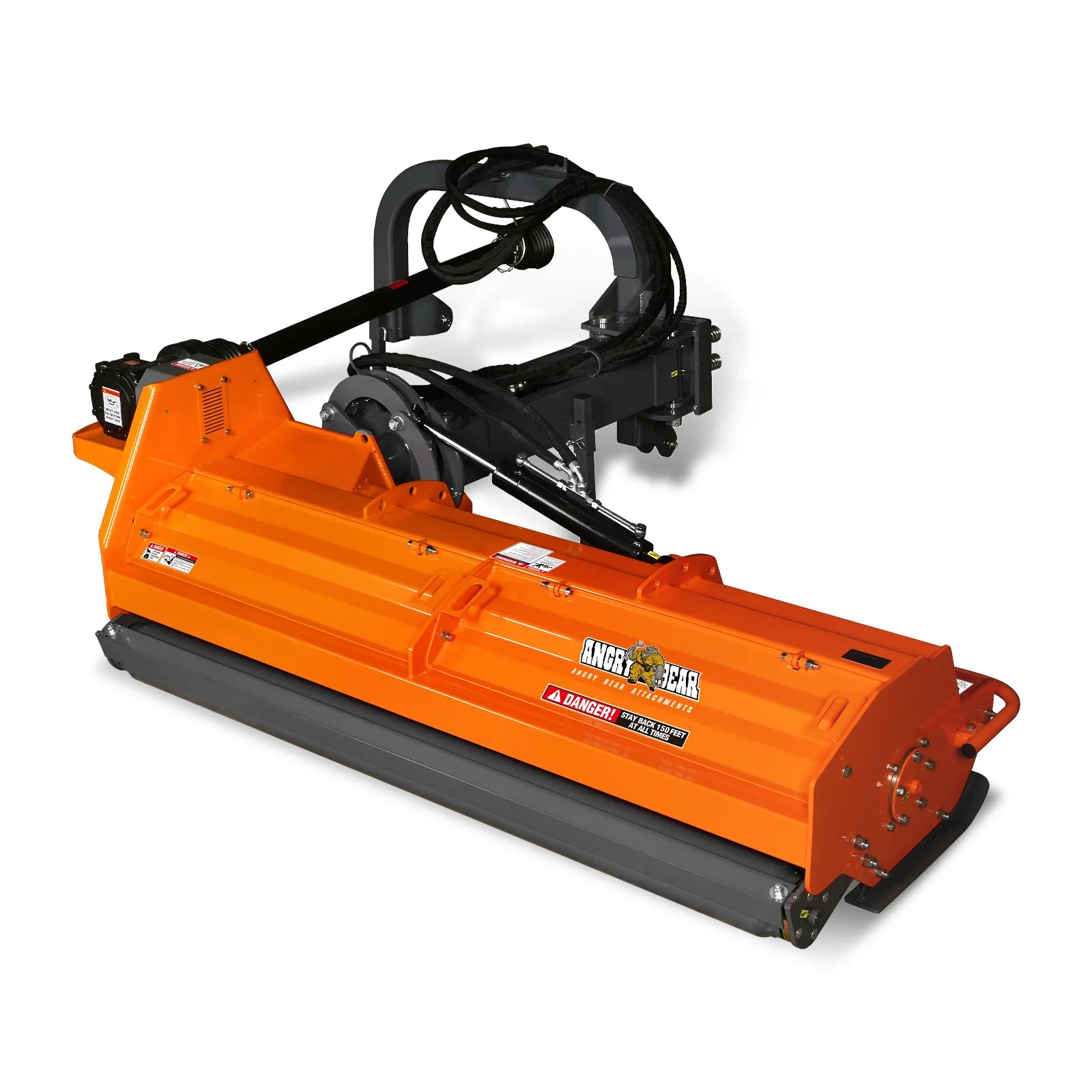

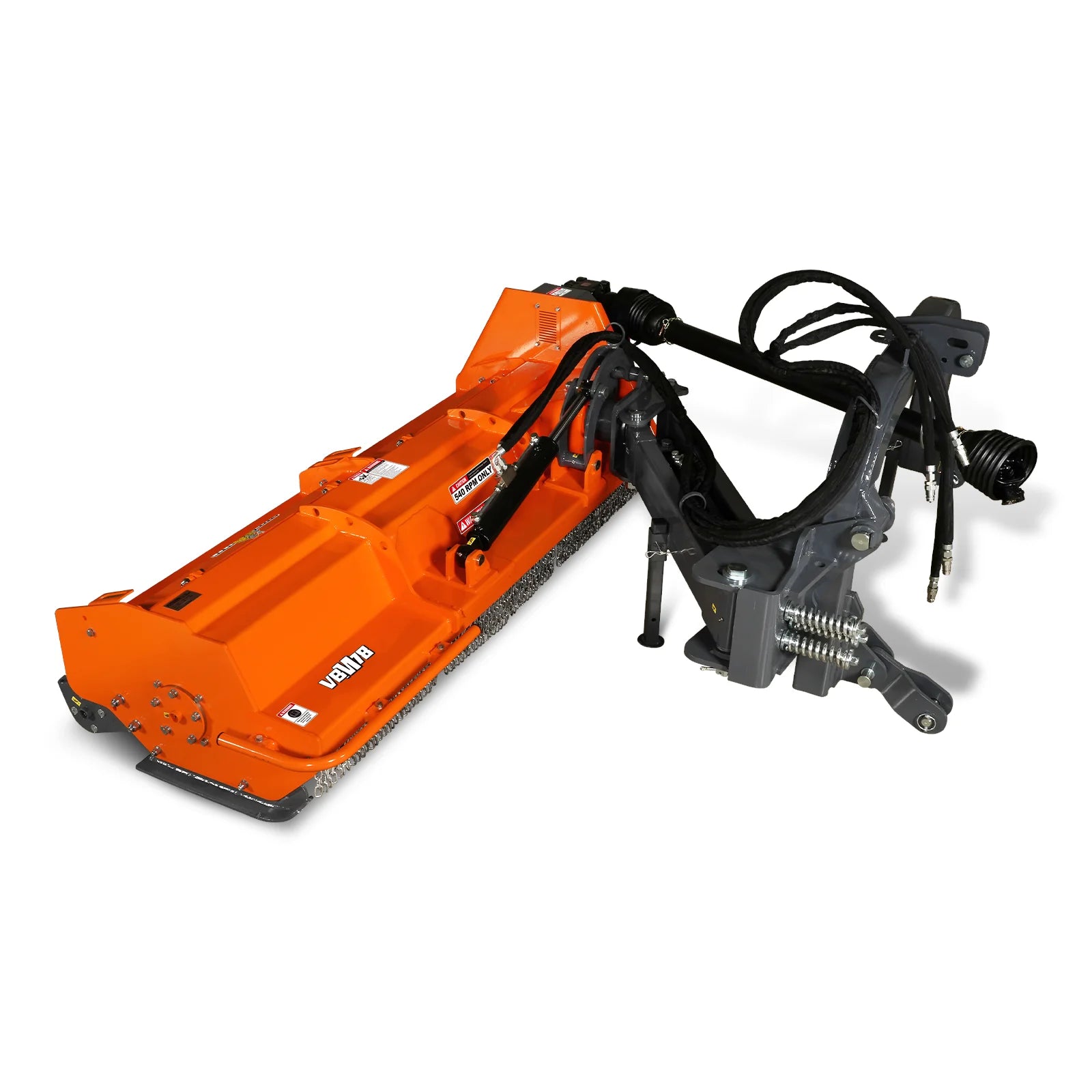

78" Heavy Duty 3 Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 80-110HP, PTO Driven, VBM78

78" Heavy Duty 3 Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 80-110HP, PTO Driven, VBM78

Regular price $3,527.99 USD
Regular price $5,699.00 USD Sale price $3,527.99 USD
Sale Sold out

🖤 BLACK FRIDAY –30% OFF

⚠️ Quantity is very low

Offer ends in:

00h : 00m : 00s
Taxes included. Shipping calculated at checkout.
Quantity
Engine Power Required 80-110 Hp Rotor Diameter 5.5 in
Working Width 78 in Rotor Thickness 0.5 in
Overall Width 94 in Rear Roller Diameter 6 in
Blade Ground Clearance (Four Gears) 0.2-0.9-1.7-2.4 in Rear Roller Thickness 0.25 in
Max. Cutting Diameter

Depends On The Type Of Grass

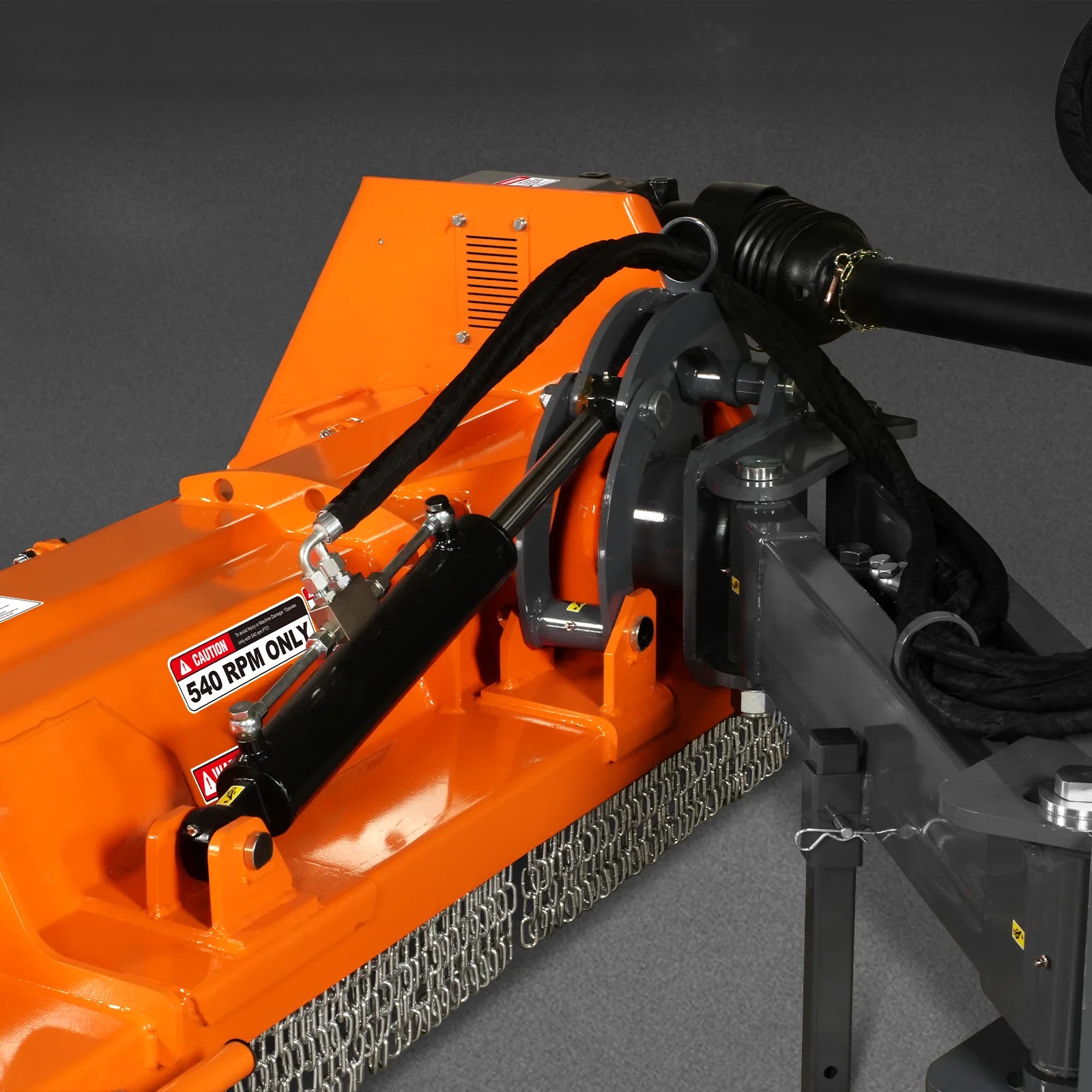

PTO Shaft Speed 540 rpm

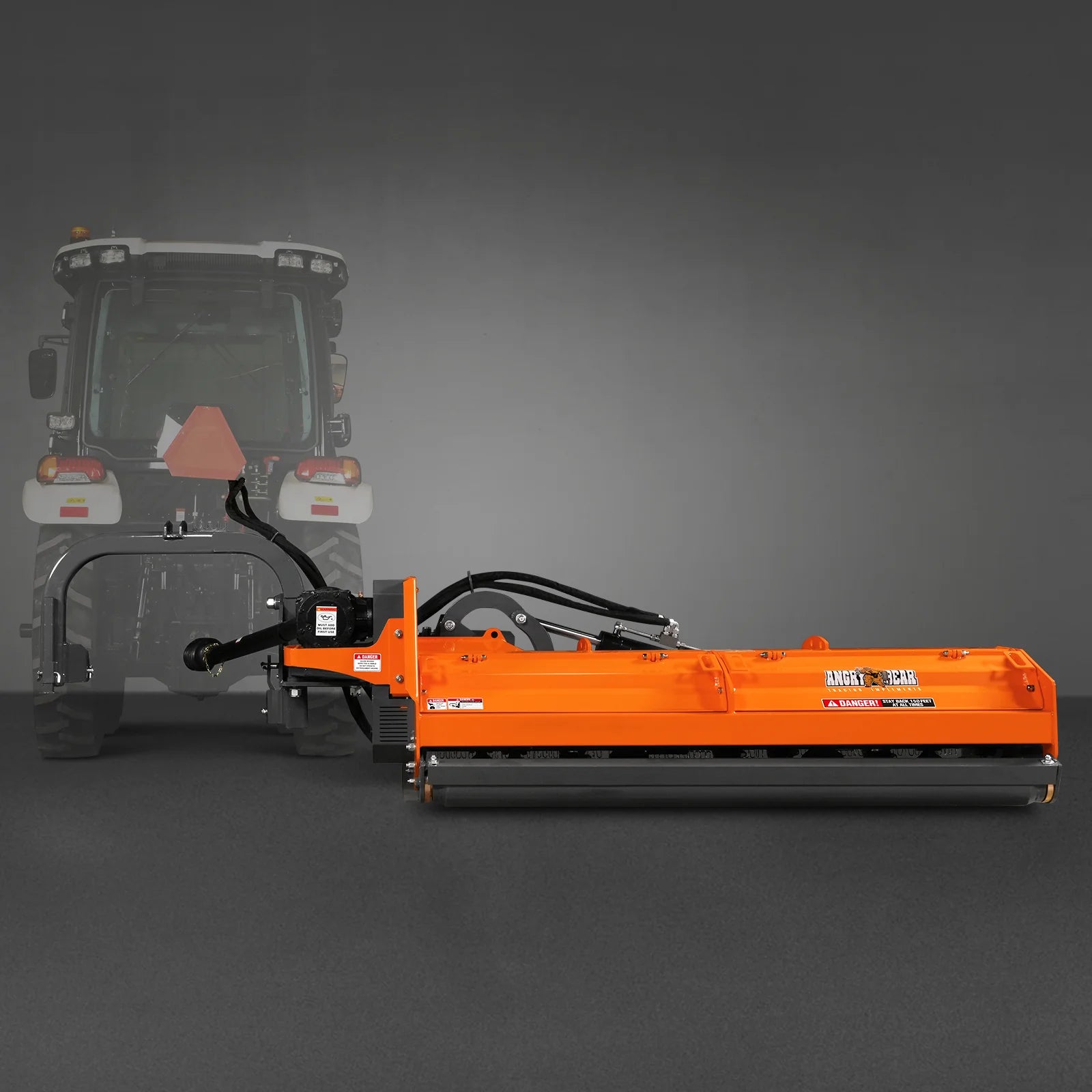

Offset Distance from The Center (Maximum) 122 in Deck Thickness 2 in

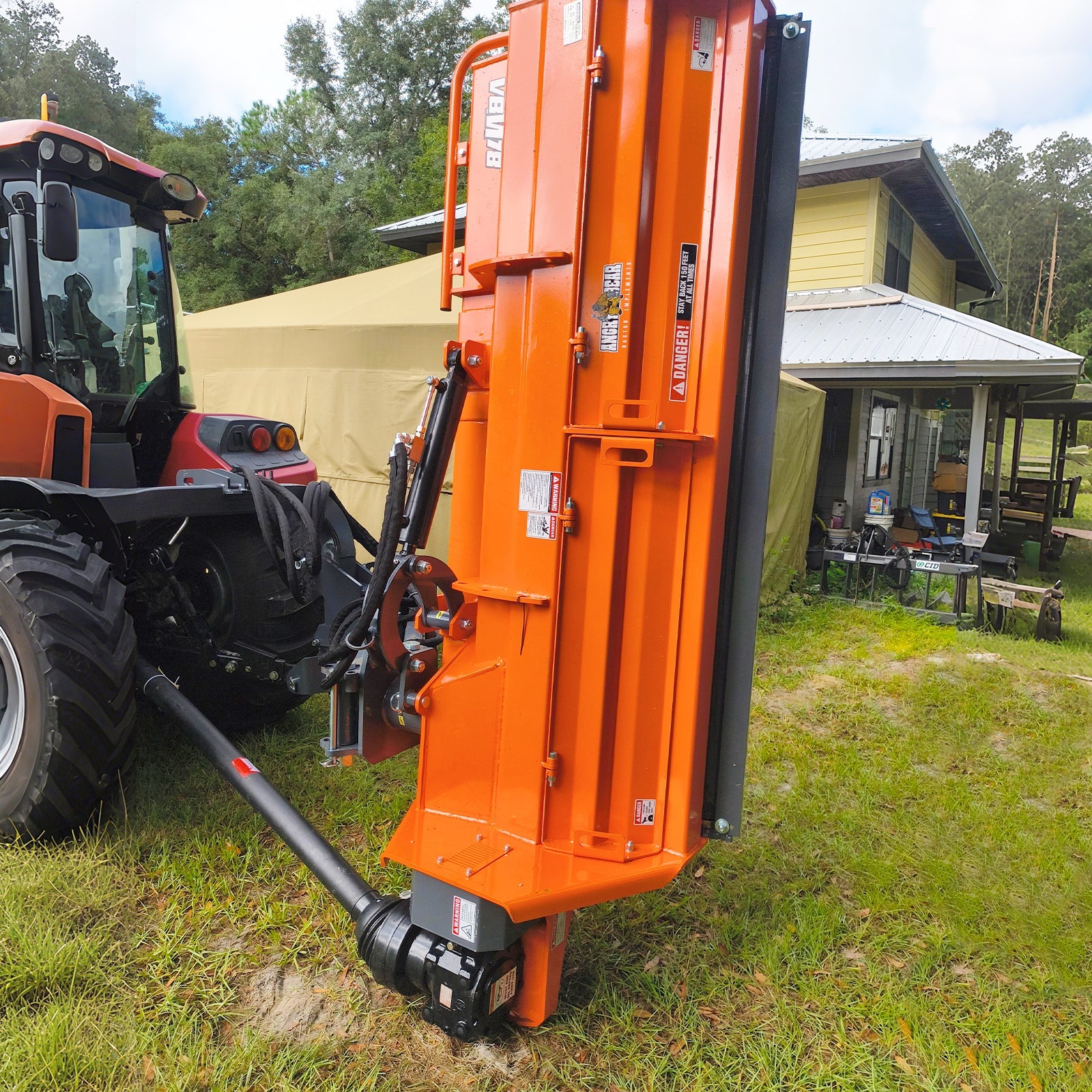

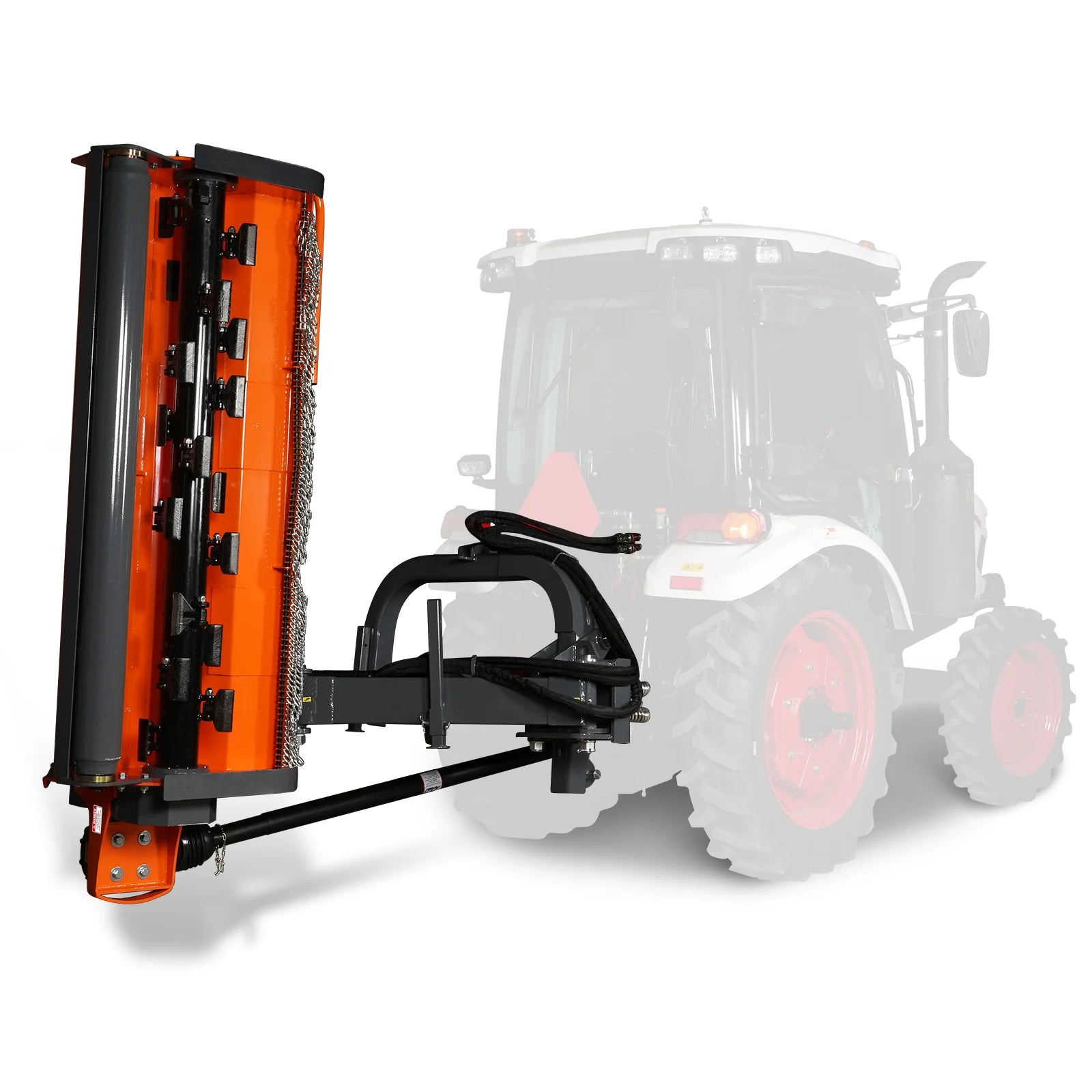

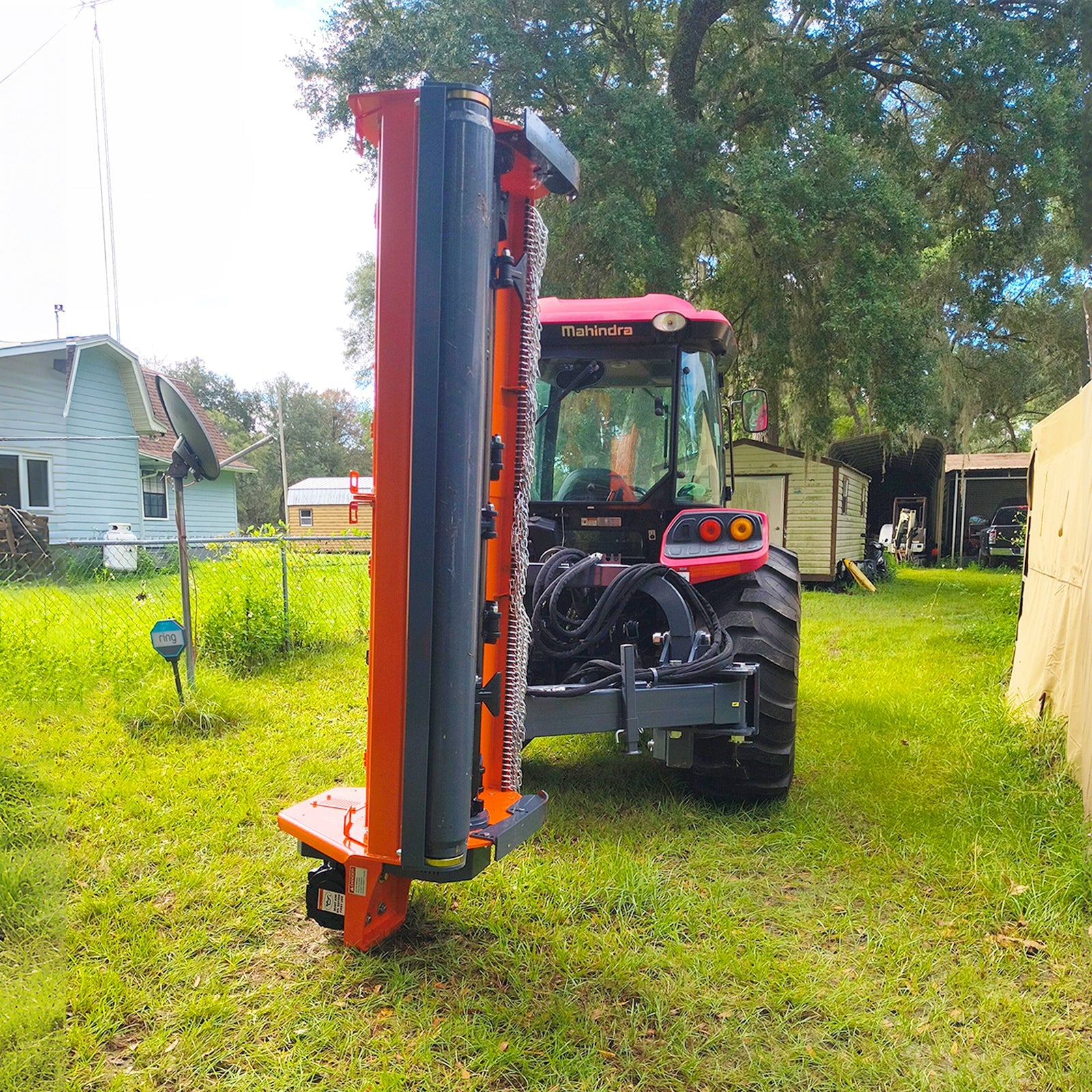

Tilt-Up Angle 90° Side Plate Thickness 0.25 in

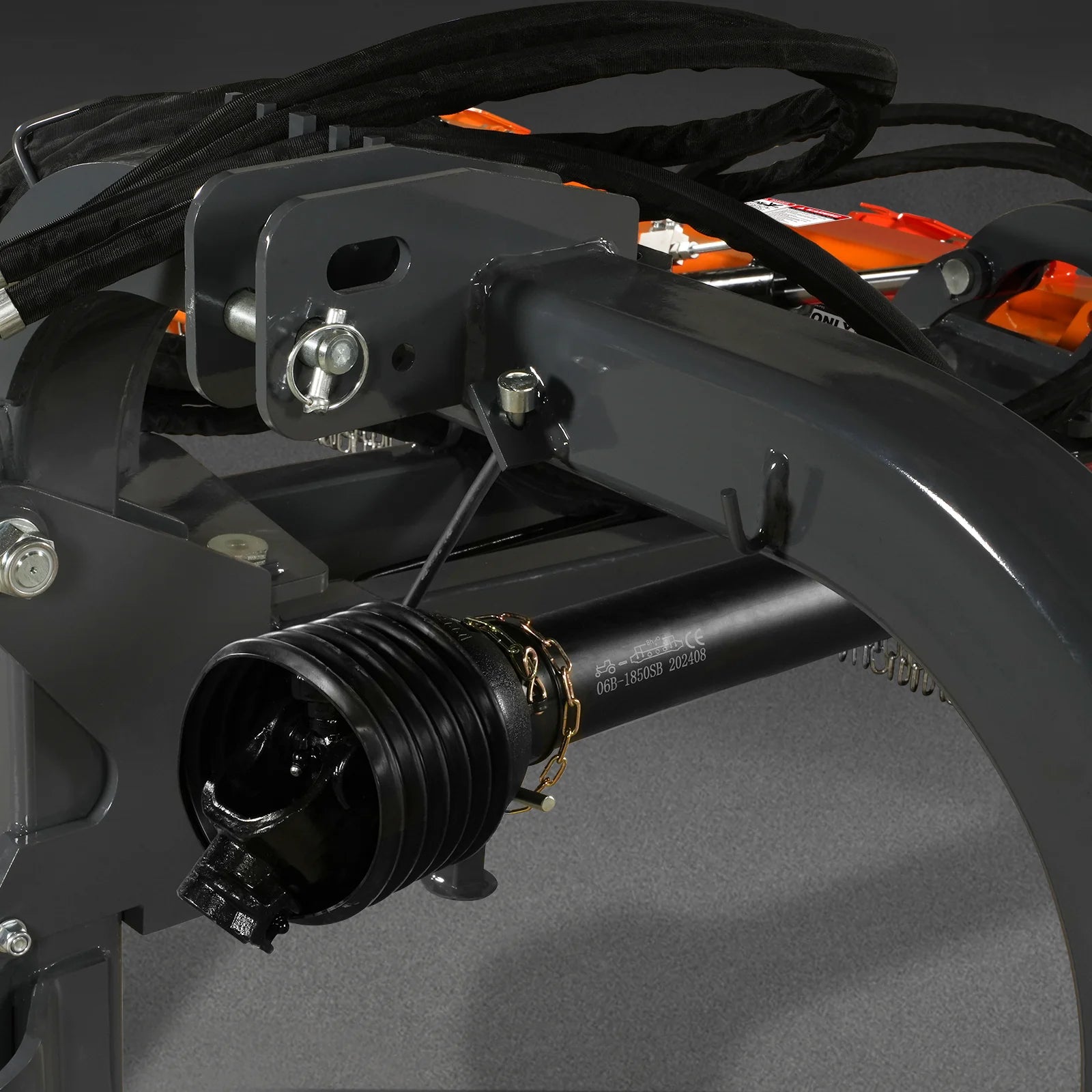

Tilt-Down Angle 55° Driveline Shaft Length T6-LF-73  With Shear Bolt ; 73in-126in

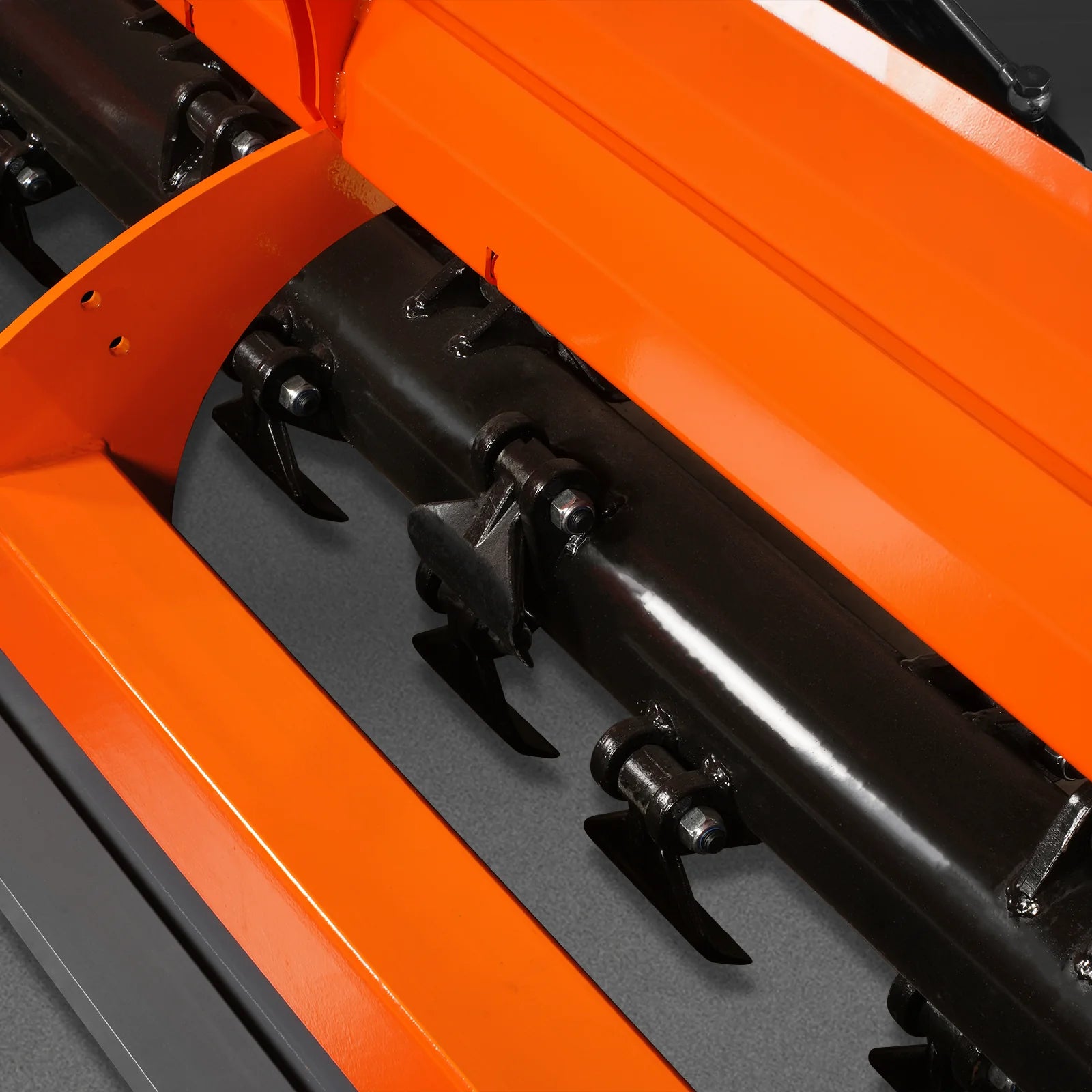

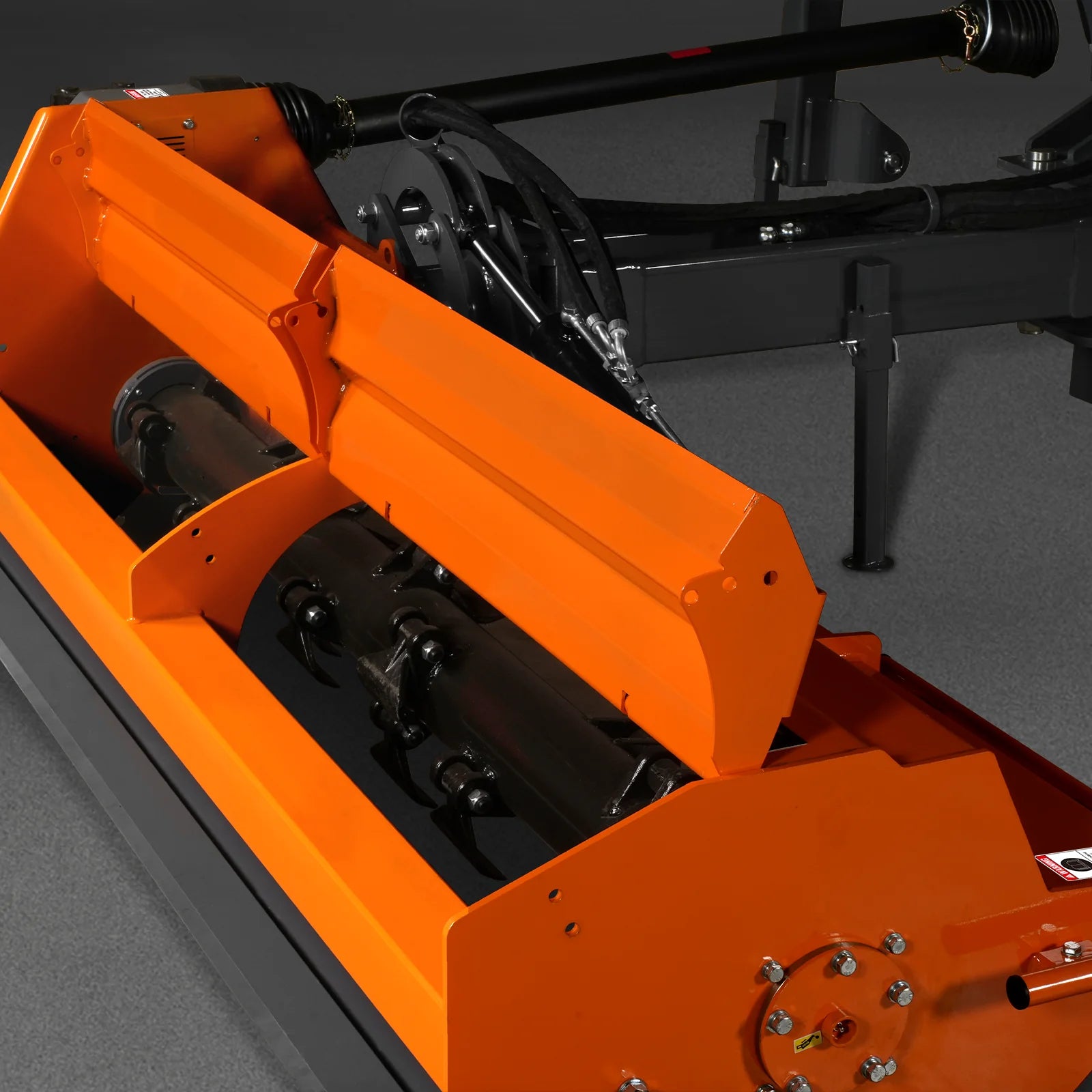

Number Of Blades 18 Spline End 1.375in  Z6
Number of Belts 4 3-Point Hitch CAT 2

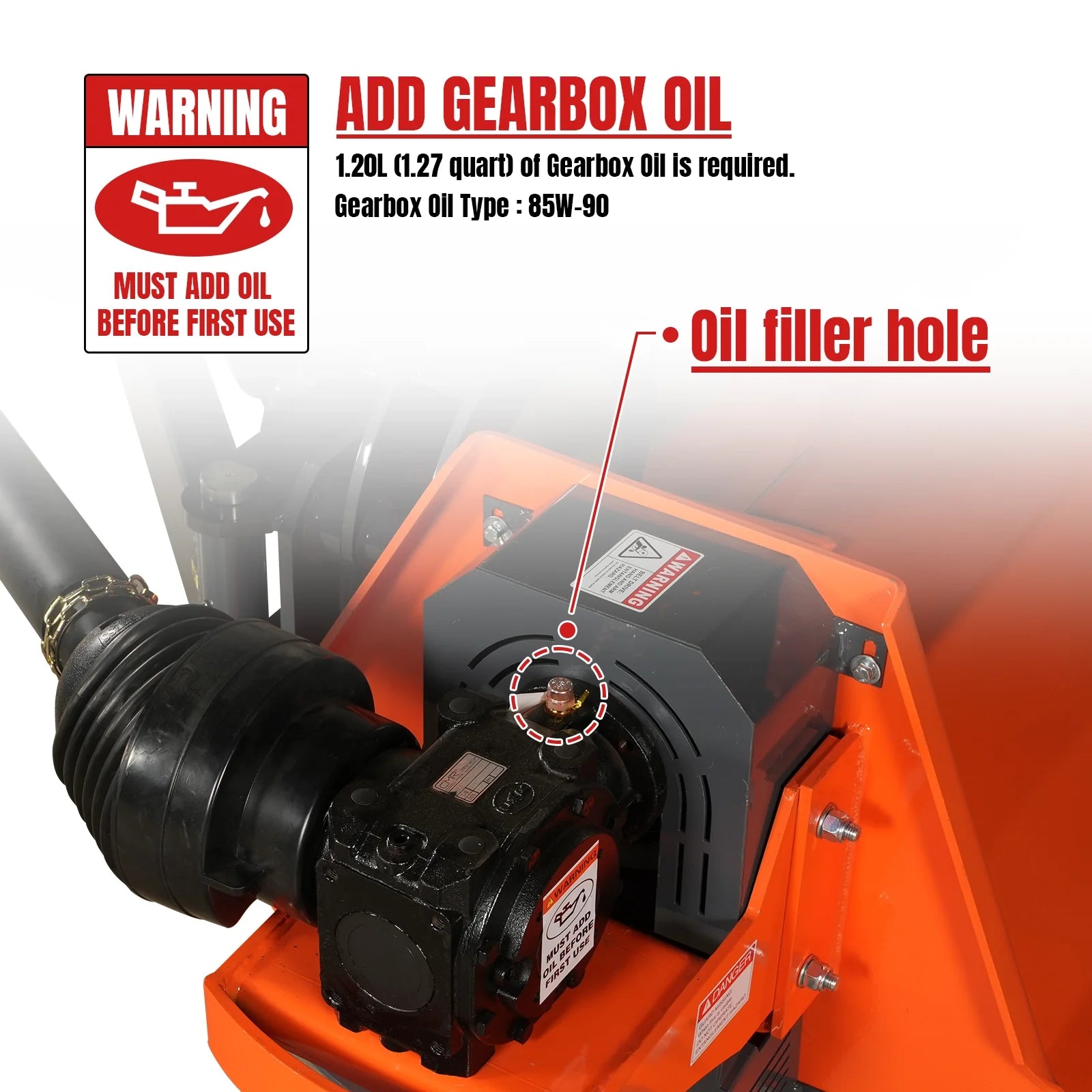

Blade Type Hammer Gearbox 0il Type 85W-90
Blade Weight 2.6 lbs Finish Powder Coating
Blade Material Cast Steel Warranty 1 Year
Belt Adjustment Bolt Tightening Shipping Box 100x41x31 in
Working Efficiency450 cu.ft./Hr. 450 cu.ft./Hr. Weight (N.W./G.W.) 1848 /2040 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
