Kunz Till Ease Model 543 Chisel Plow

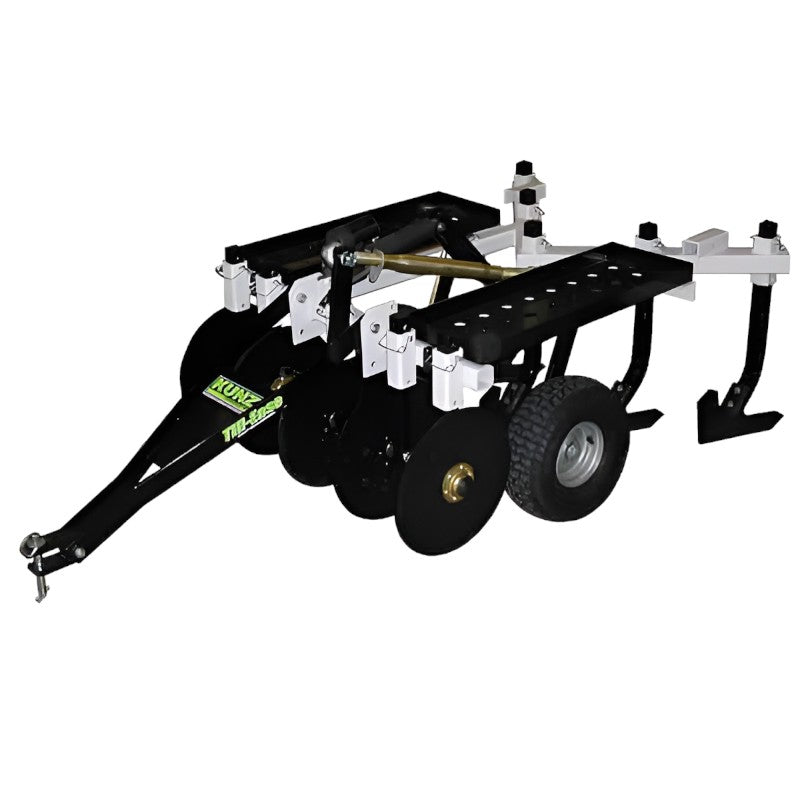

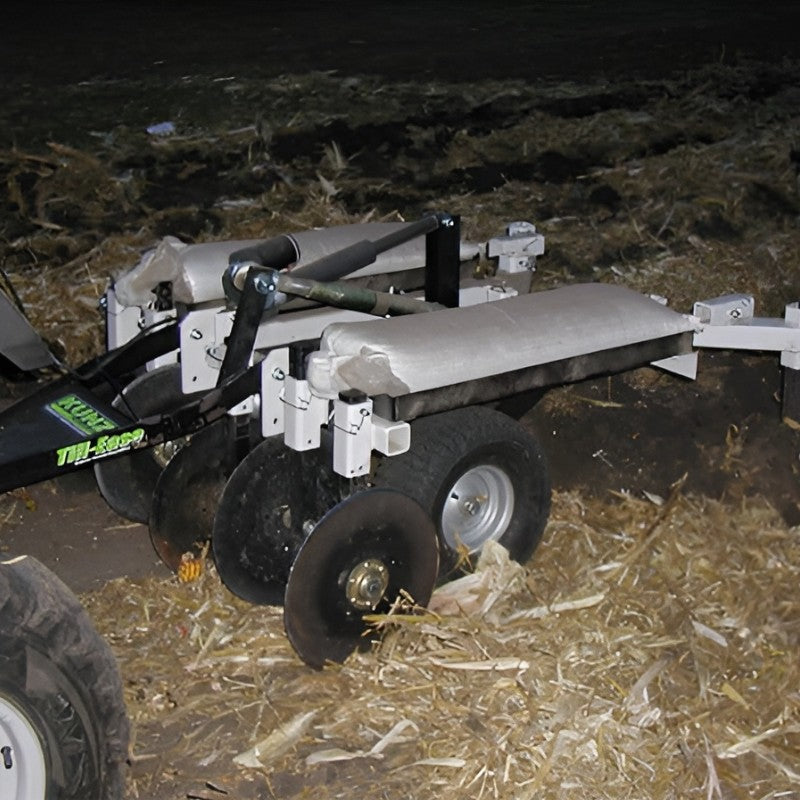

Kunz Engineering Chisel Plow Overview
The Kunz Engineering Chisel Plow Till-Ease Model 543 is a top-of-the-line ATV tillage tool designed for deep tillage work.
With a width of 43 inches, this cultivator features rigid shanks, cutting coulters, and an electric lift with ATV operator controls.
It is capable of tilling up to 6 inches deep, making it perfect for various agricultural applications.
The narrow chisel points and 9-inch wide field cultivator sweeps included with this plow ensure better ground penetration and efficient soil preparation.

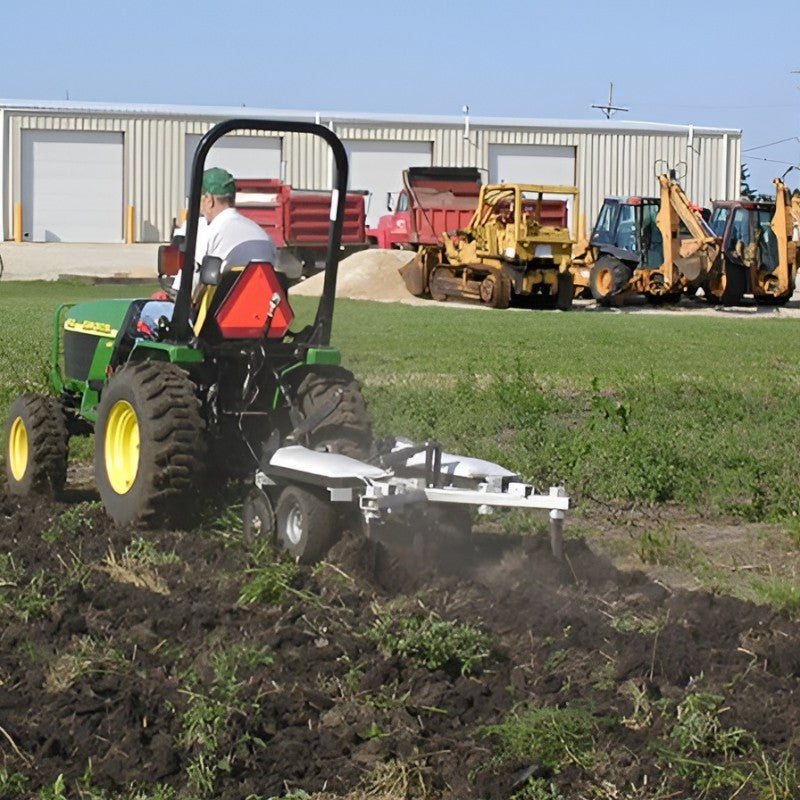

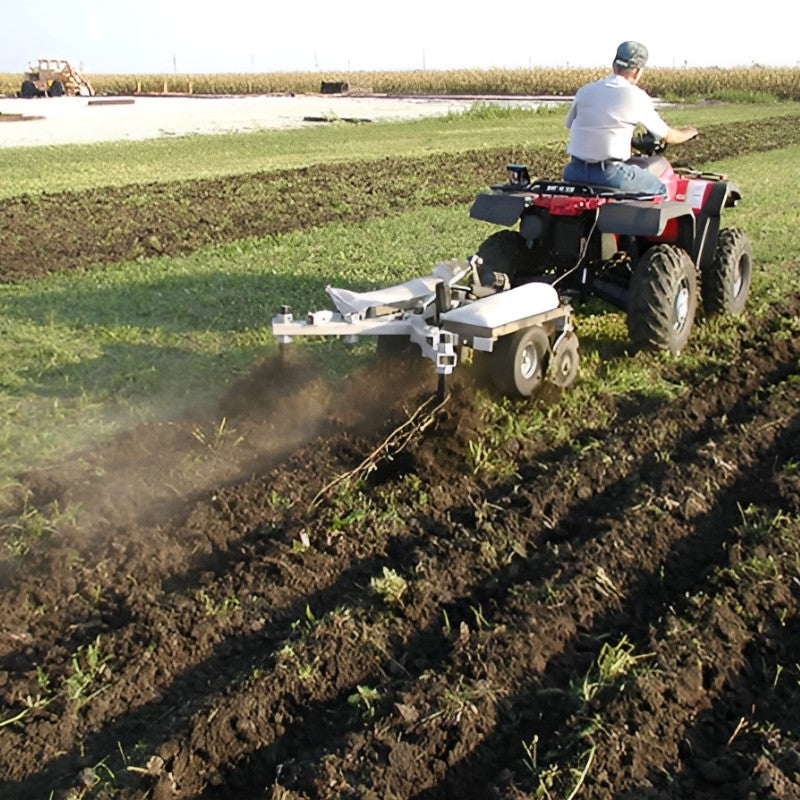

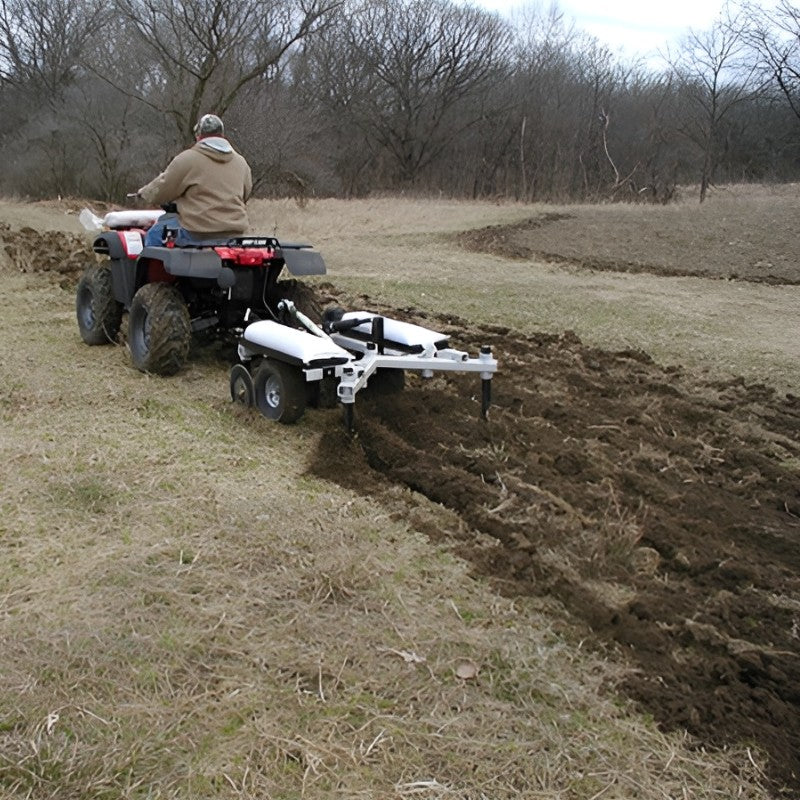

Whether you need to pull it with an ATV, UTV, or small tractor, the Kunz Engineering Chisel Plow Till-Ease Model 543 is a reliable and versatile choice.
Kunz Chisel Plow Features
- 43" Tillage Width -Â Wide coverage for efficient and effective tillage
- Electric Lift with ATV Operator Controls -Â Convenient and easy-to-use lift system for precise control
- 5 Front Cutting Coulters -Â Enhanced cutting performance for smoother tilling
- Rigid Shanks for Better Ground Penetration -Â Improved soil penetration and tillage depth
- Till up to 6" Deep -Â Suitable for deep tillage work and soil preparation
- Narrow Chisel Points & 9" Wide Field Cultivator Sweeps Included -Â Versatile attachments for different tillage needs
- Pull with ATV’s, UTV’s and Small Tractors - Compatible with various types of vehicles for flexibility
Product Video
Accessories

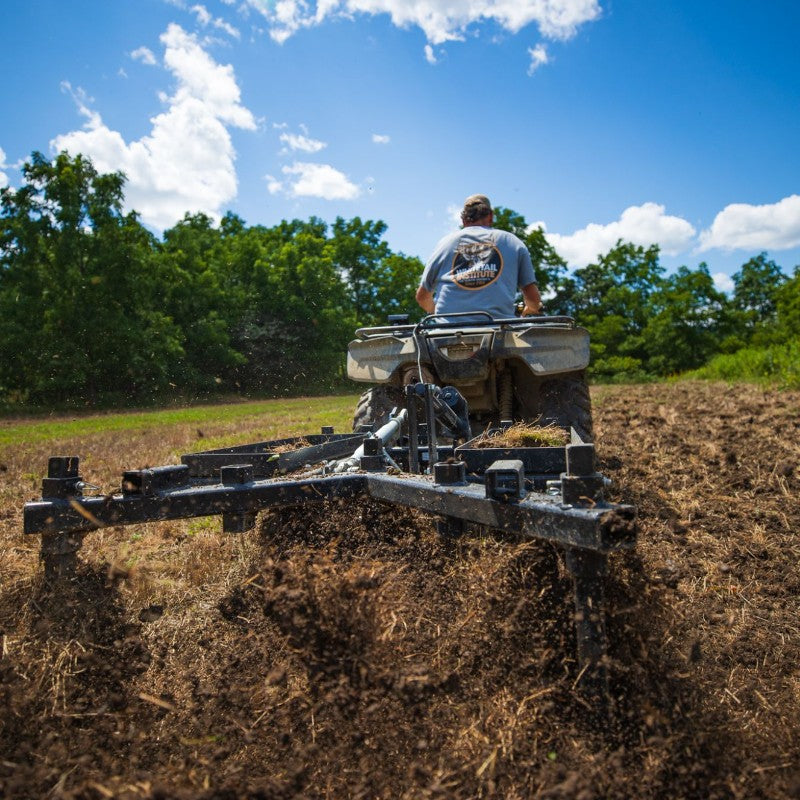

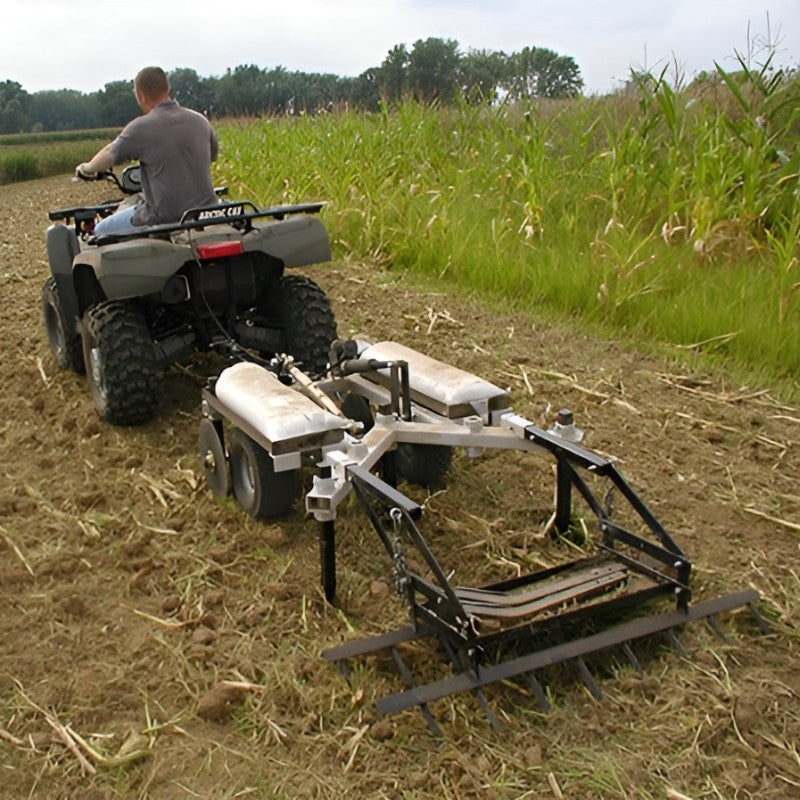

Drag Harrow
The optional Drag Harrow consists of the harrow and fastening pins.
– Great for final seedbed preparation
– Levels ground and helps to reduce clod size
– Spike angle can be adjusted from vertical to horizontal with a total of 7 positions
– Four bar link system allows the harrow to float and follow the contour of the ground
– Drag Harrow height is adjustable with side chains
– Weight rack for conditions where additional weight is needed
Turning Shovel Kit
The optional Turning Shovel Kit consists of the 3 turning shovels and mounting hardware.
– Great for doing the initial tillage in sod conditions
– Turning shovels act similar to a moldboard plow and turn the sod ribbon to the side.
– Easier to pull and much less troublesome than normal sweeps in sod
Kunz Engineering Chisel Plow Till-Ease Model 543 Specs
| Manufacturer | Kunz Engineering |
| MODEL | 543 |
| Tillage Tool Type | Yes (With Operator Controls) |
| Number of Cutting Coulters | 5 |
| Cutting Coulter Size | 13.5″ Dia. (Plain Straight Style)(Agricultural Quality) |
| Number of Shanks | 5 |
| Shank Type | Rigid 1-3/8″ Square |
| Adjustable and Quick Remove Shanks | Yes |
| Maximum Depth | 6″ |
| Cultivator Sweep Size | 9″ Wide (1-3/4″ Bolt Spacing, 3/8″ Bolt Dia. )(Agricultural Quality) |
| Reversible Point Chisel Sweep Size | 2″ Wide (1-3/4″ Bolt Spacing, 3/8″ Bolt Dia. )(Agricultural Quality) |
| Cutting Width | 43″ |
| Tongue Adjustment Method | Top Link Connected to Lift Mechanism |
| Tongue Hitch Method | Quick Remove Pin |
| Pneumatic Tire | 15/600Ă—6, 4 Ply Tubeless |
| Attachment Receivers | Yes |
| Weight Racks | Yes |
| Weight | 330 lbs (Without Added Weight) |
| Warranty | 1 Year Non-Commercial |
Kunz Engineering Chisel Plow Till-Ease Model 543 Owner's Manual
If you need more information on the specifications, installation, warranty, etc -- Please check out the Kunz Engineering Chisel Plow Manual.
