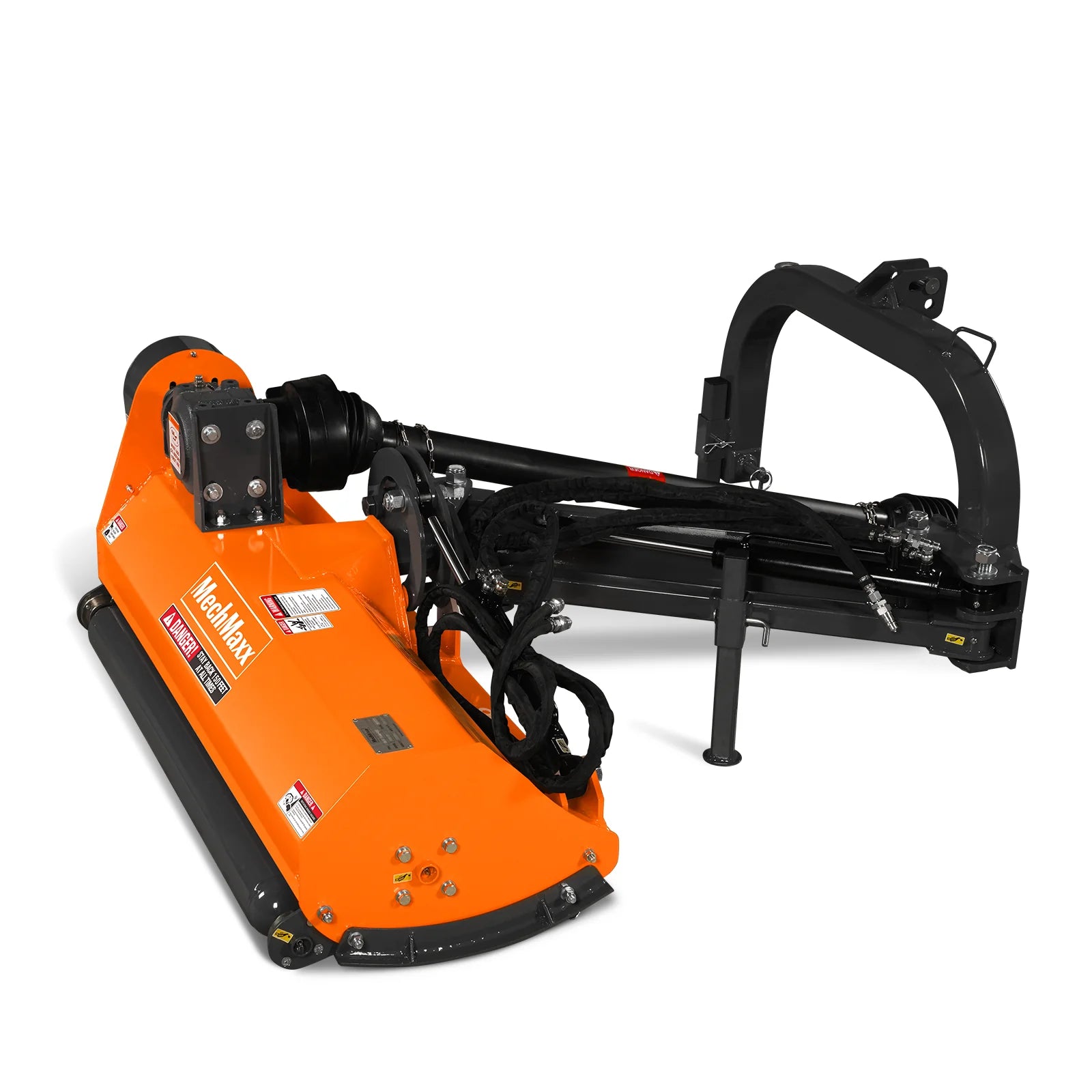

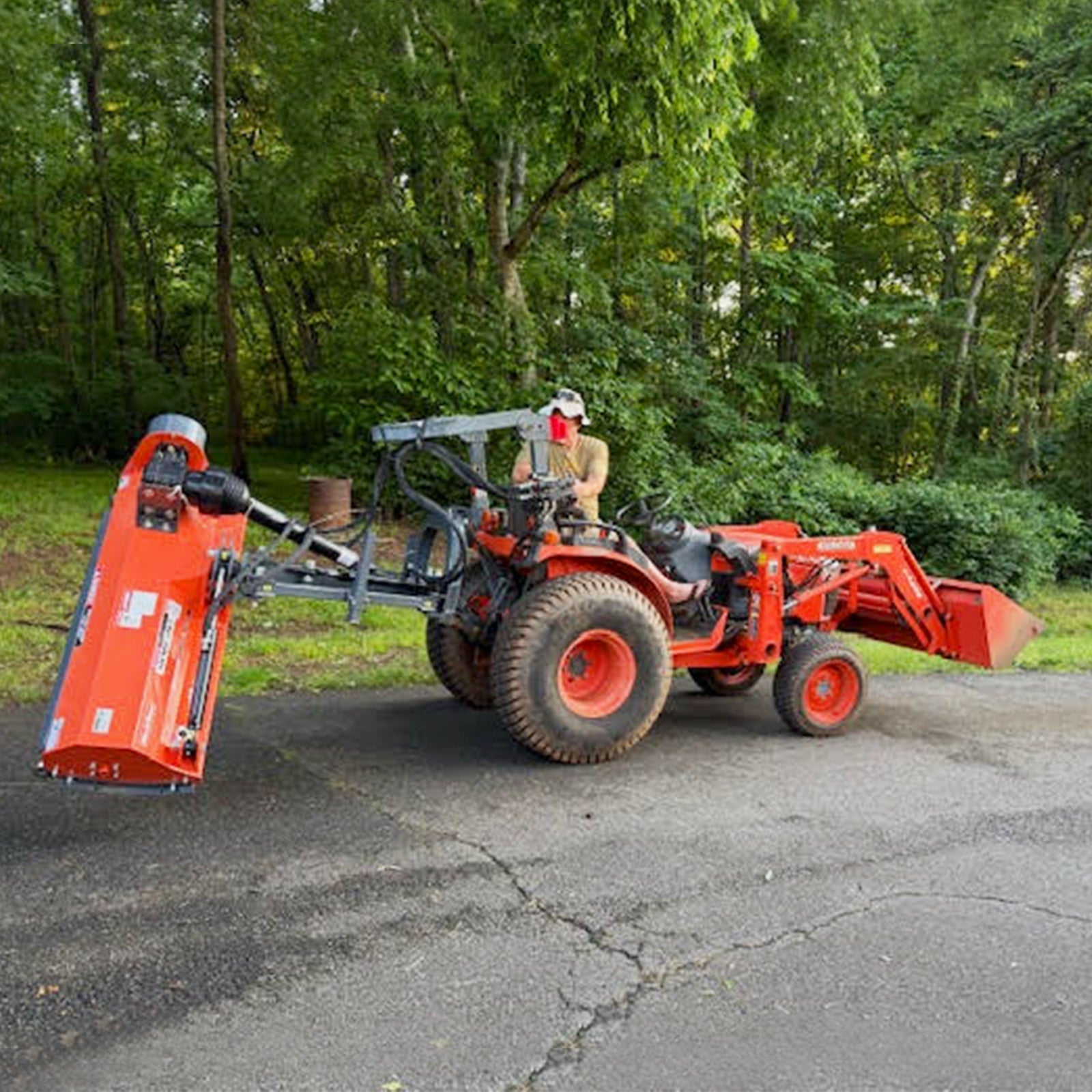

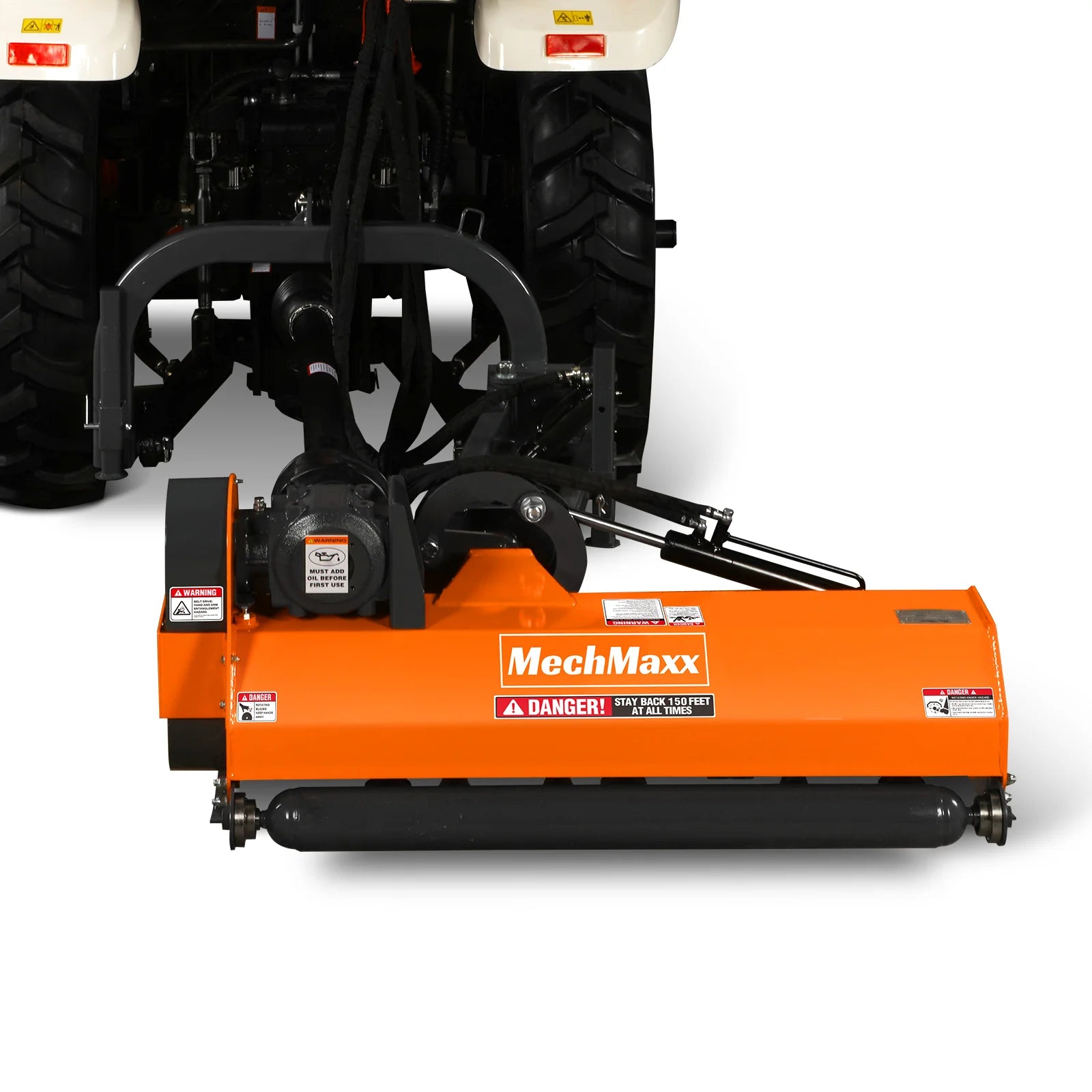

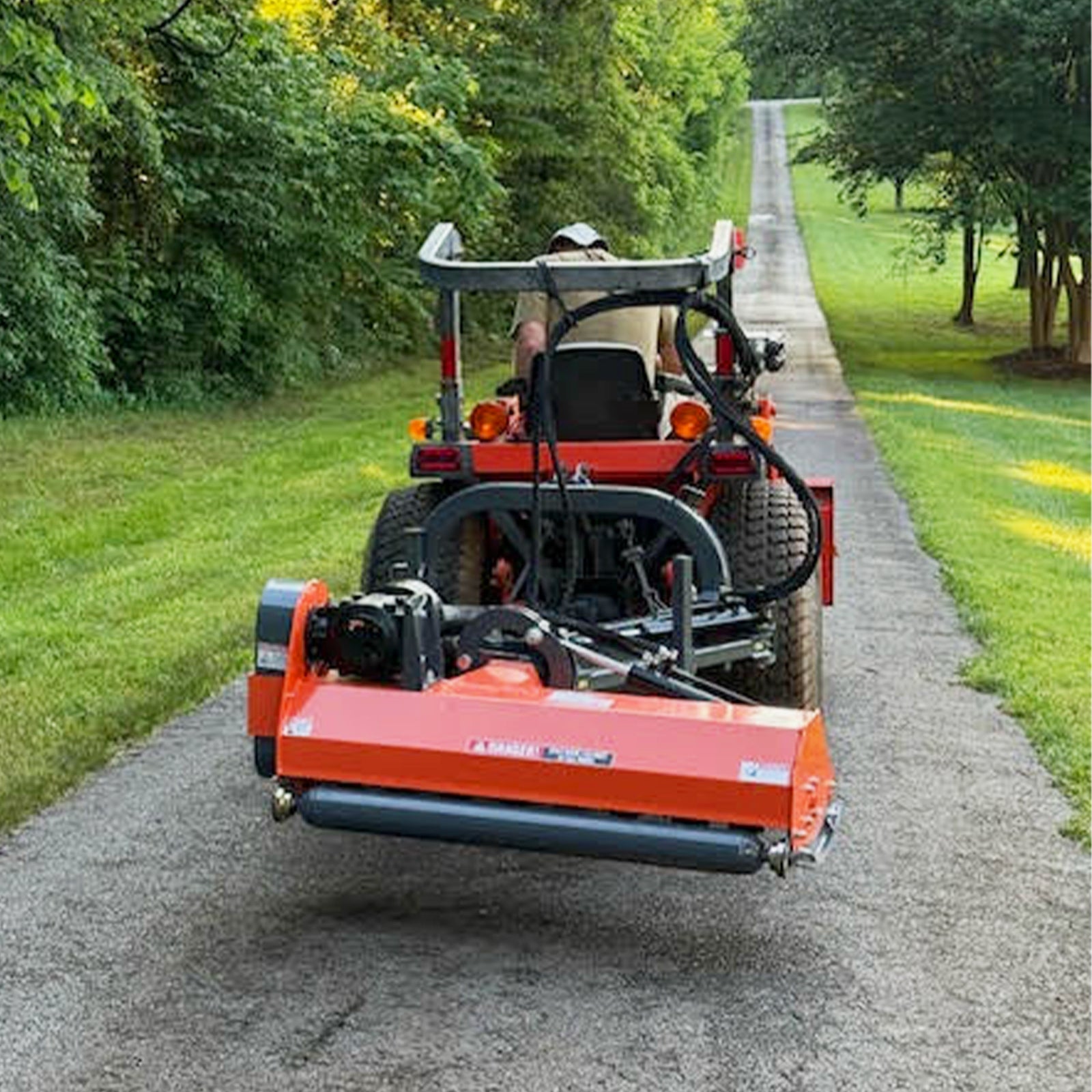

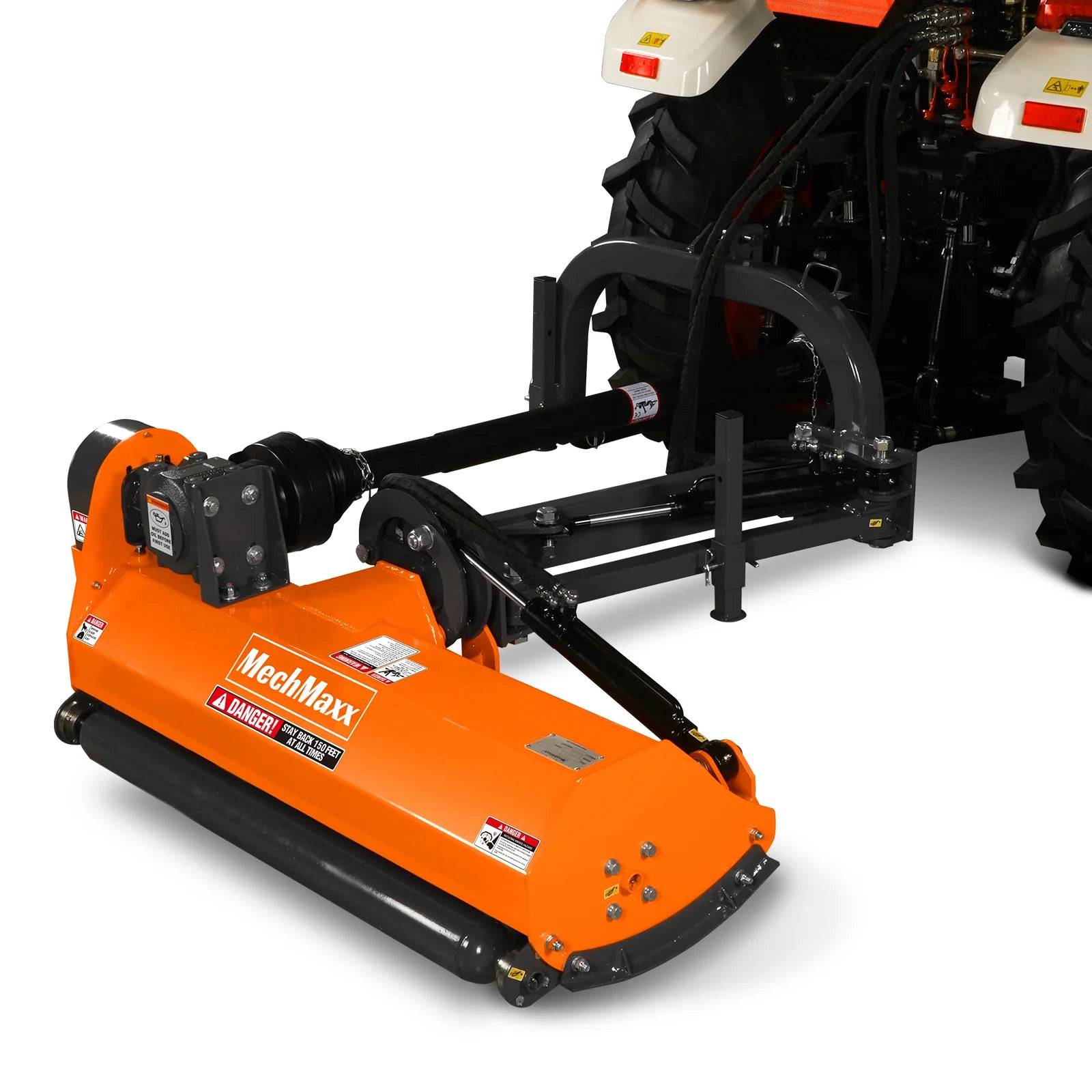

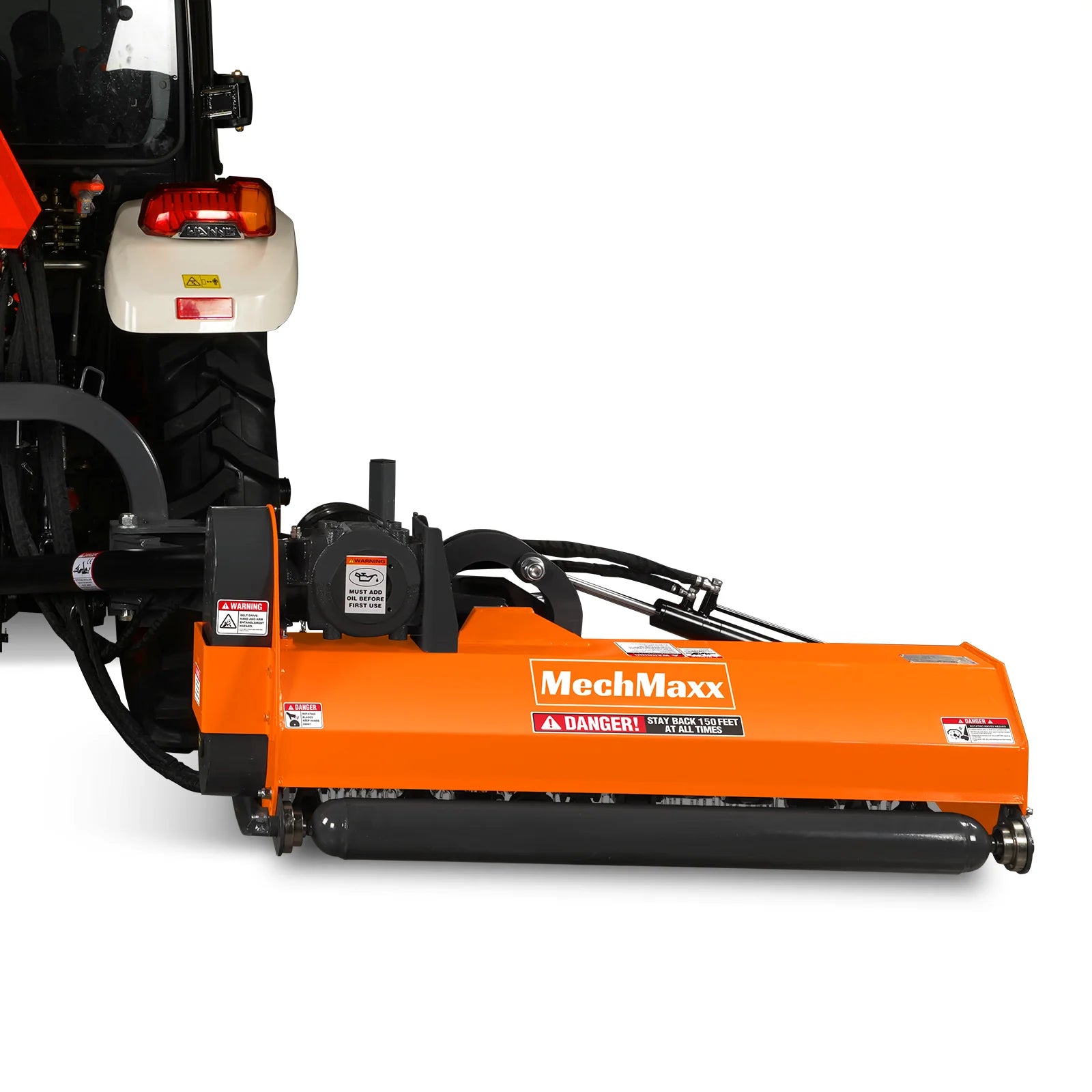

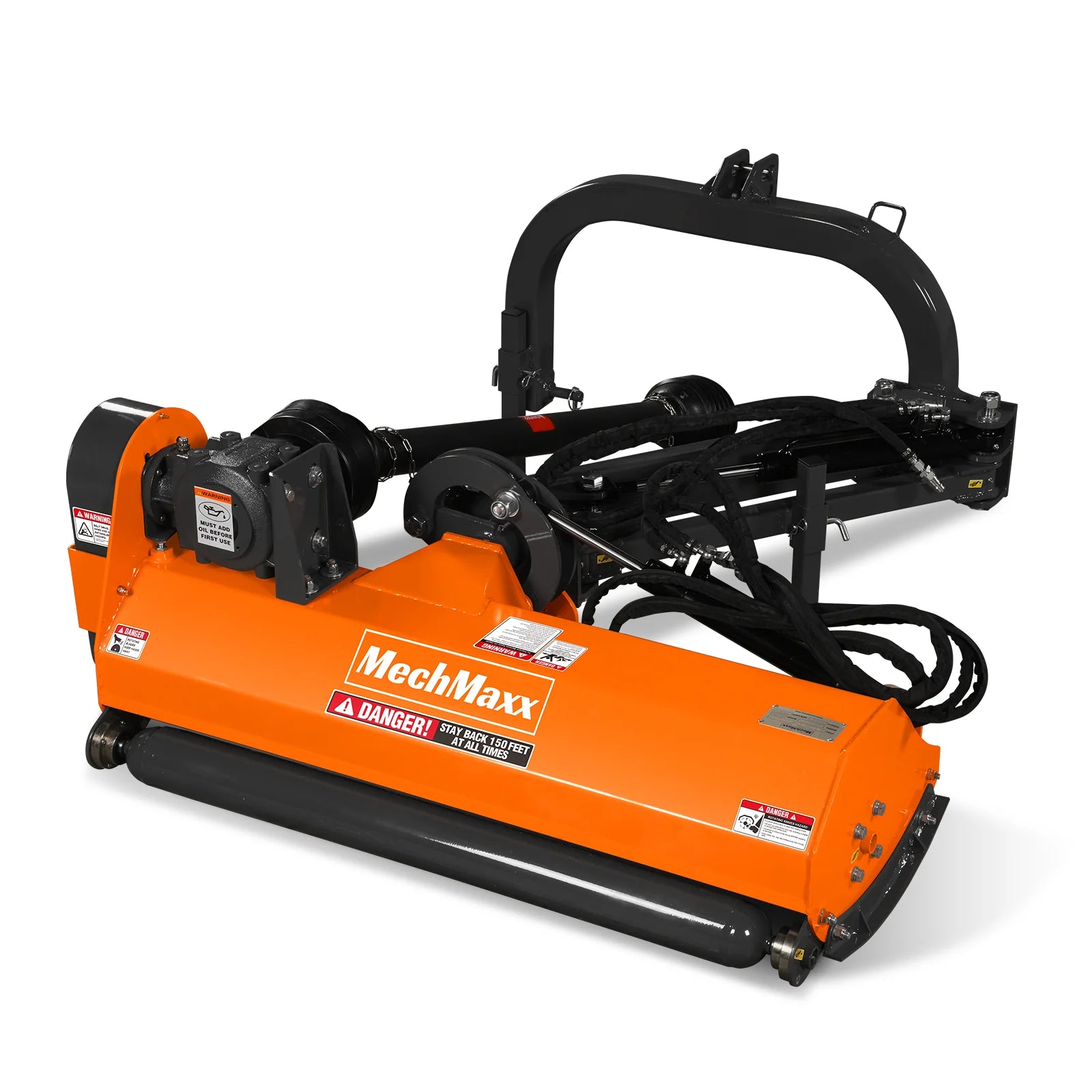

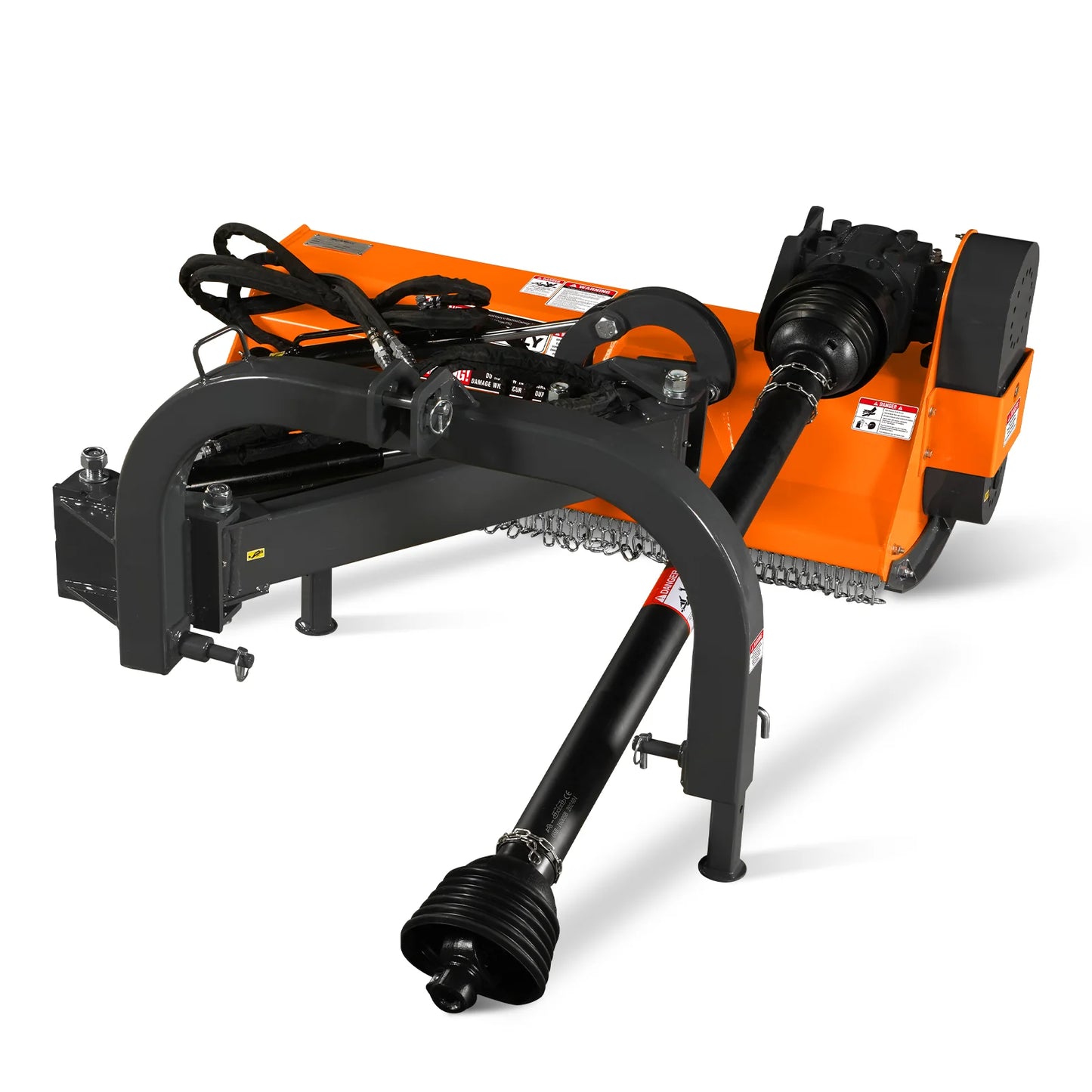

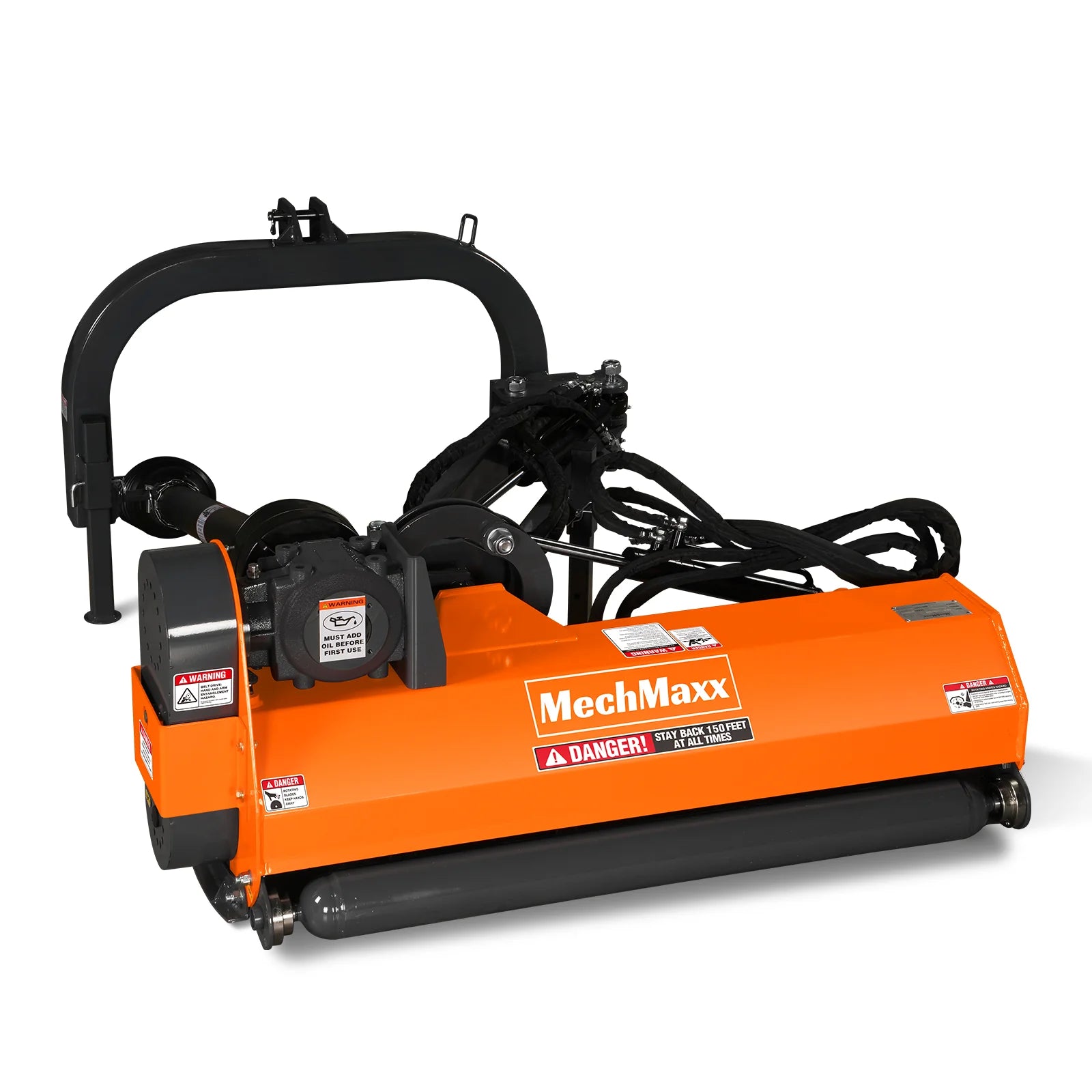

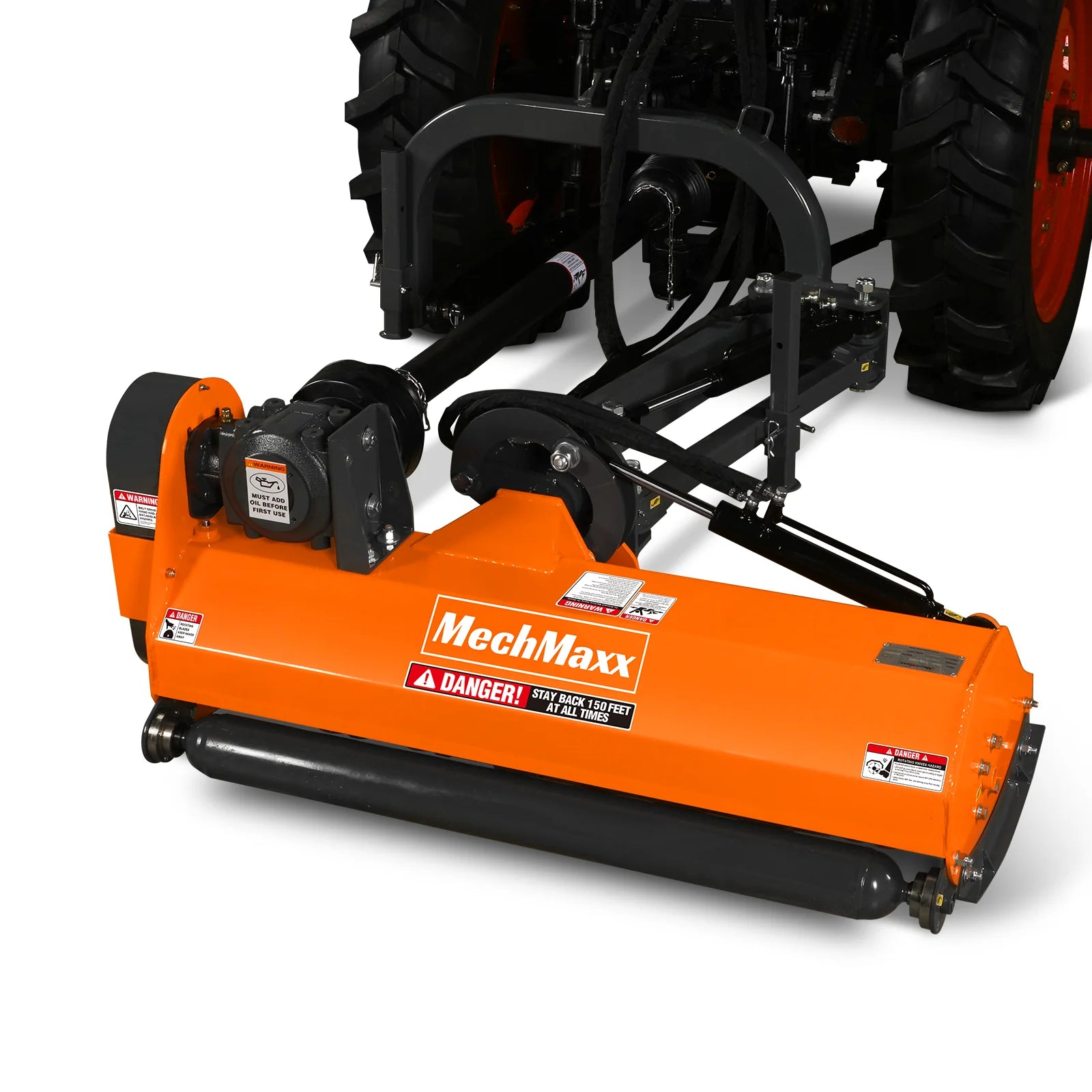

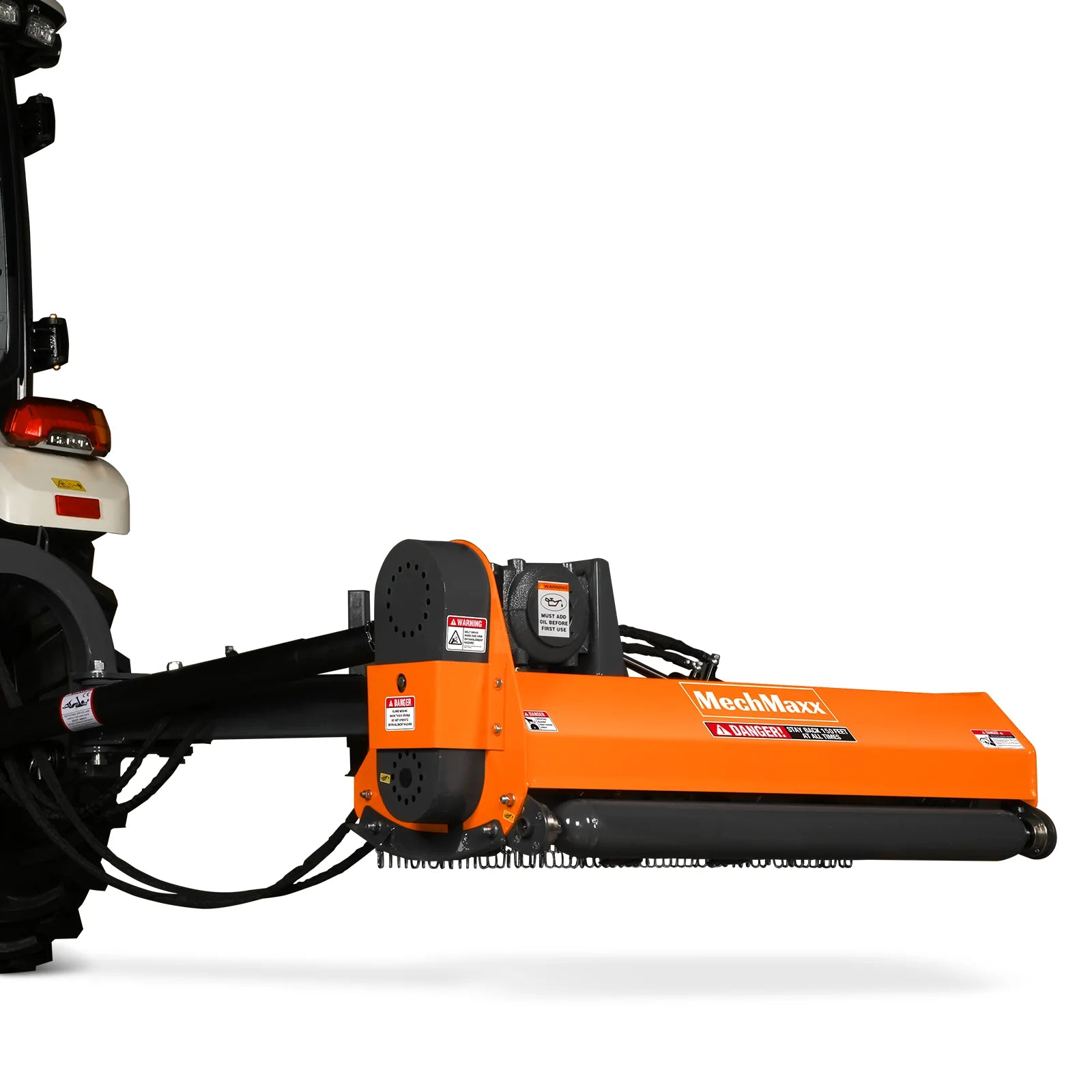

48" Standard 3 Point Offset Flail Ditch Bank Mower, 25-50HP, VAM48

48" Standard 3 Point Offset Flail Ditch Bank Mower, 25-50HP, VAM48

Regular price $1,799.99 USD
Regular price $3,399.00 USD Sale price $1,799.99 USD
Sale Sold out

🖤 BLACK FRIDAY –30% OFF

⚠️ Quantity is very low

Offer ends in:

00h : 00m : 00s
Taxes included. Shipping calculated at checkout.
Quantity
Engine Power Required 25-50 hp Rotor Shaft Speed 2356 rpm
Working Width 48in Hydraulic Fittings Size G1/2 in
Overall Width 56in Hydraulic Hoses Quantity 4
Min. Blade Ground Clearance 0.6in Drive Type Belt Drive
Max. Cutting Diameter

Depends On The Type Of Grass

Spline End 1.375in  Z6

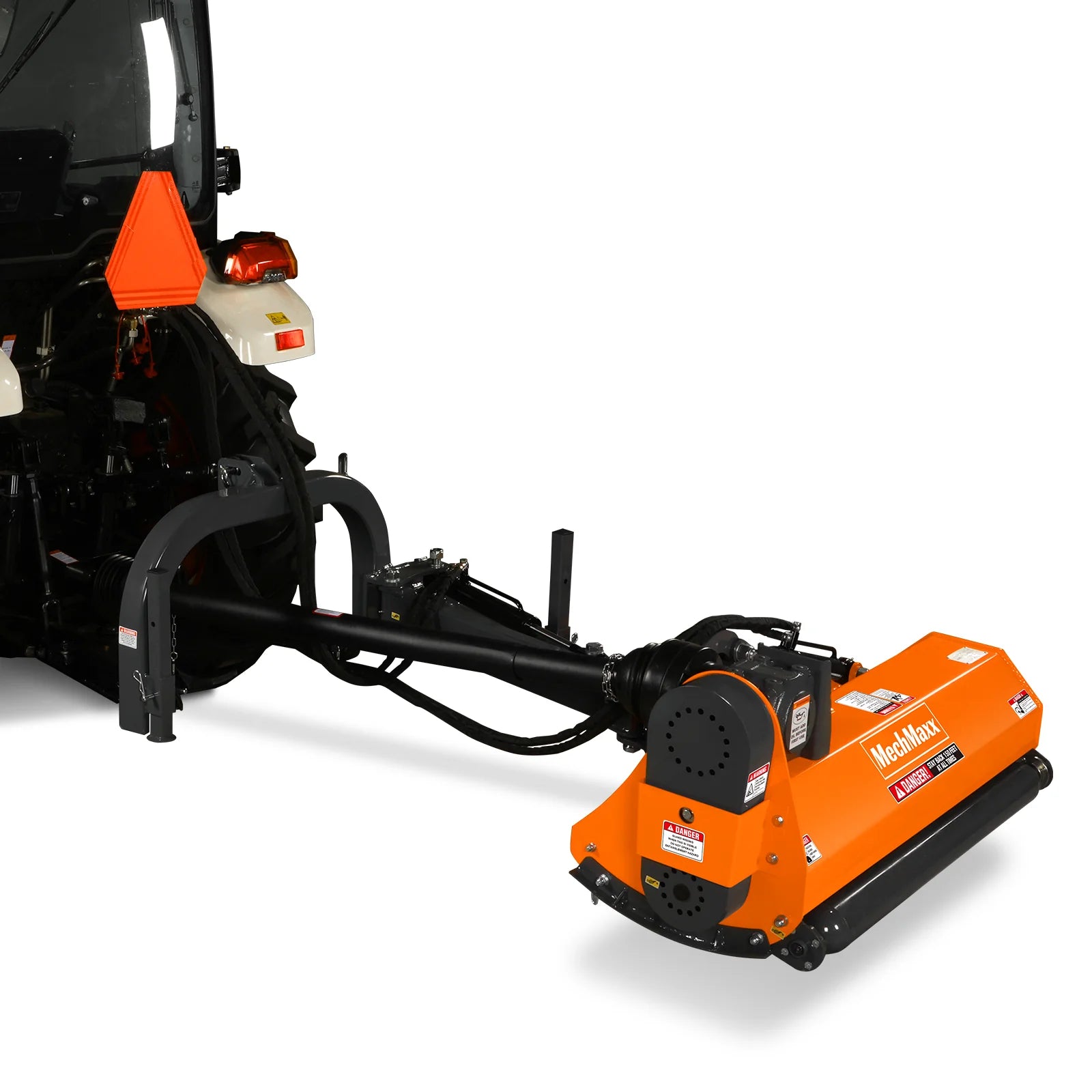

Offset Distance From The Center (Maximum) 69in Driveline Shaft Length T6-LF-63 With Shear Bolt ;
63-77in [05B-1600]

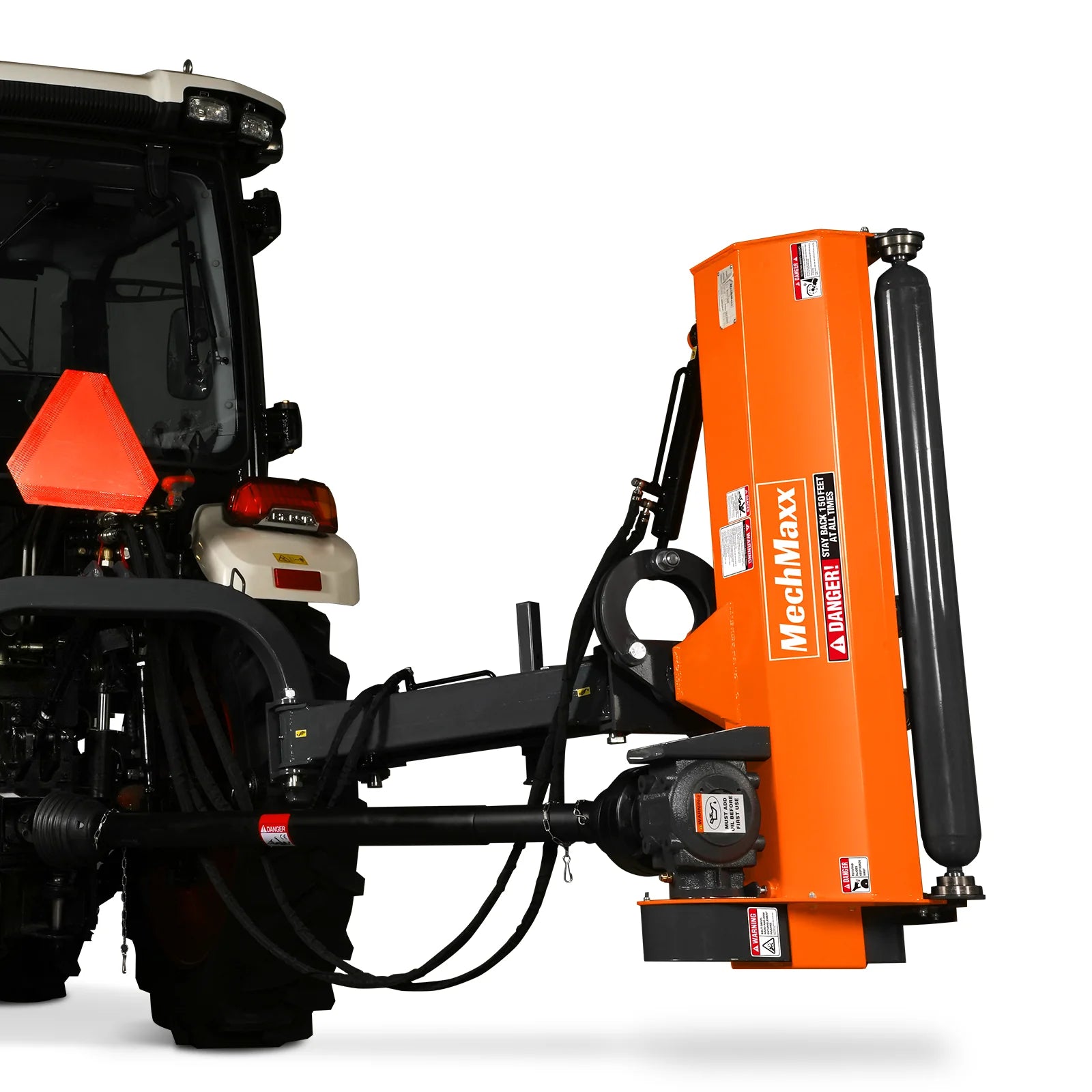

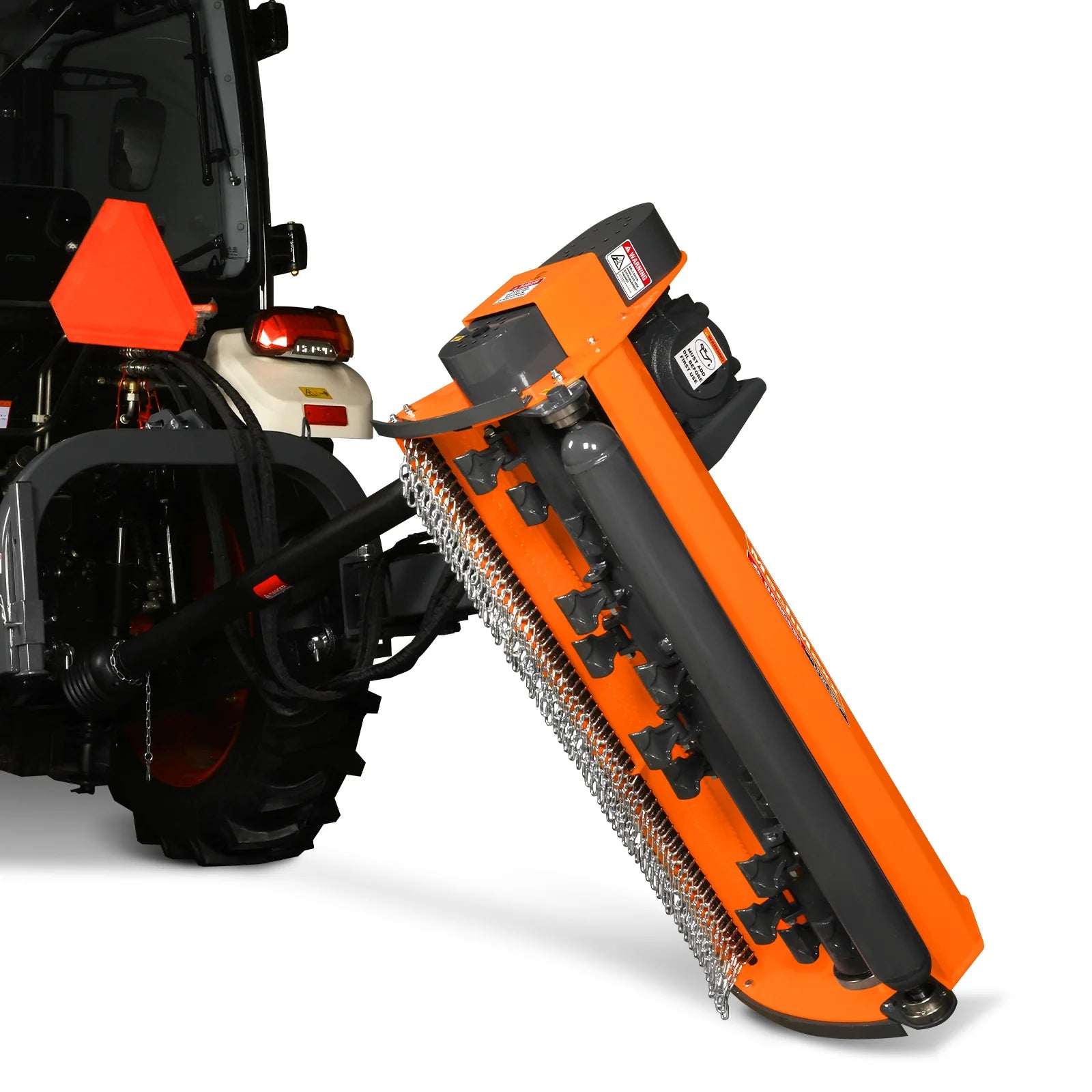

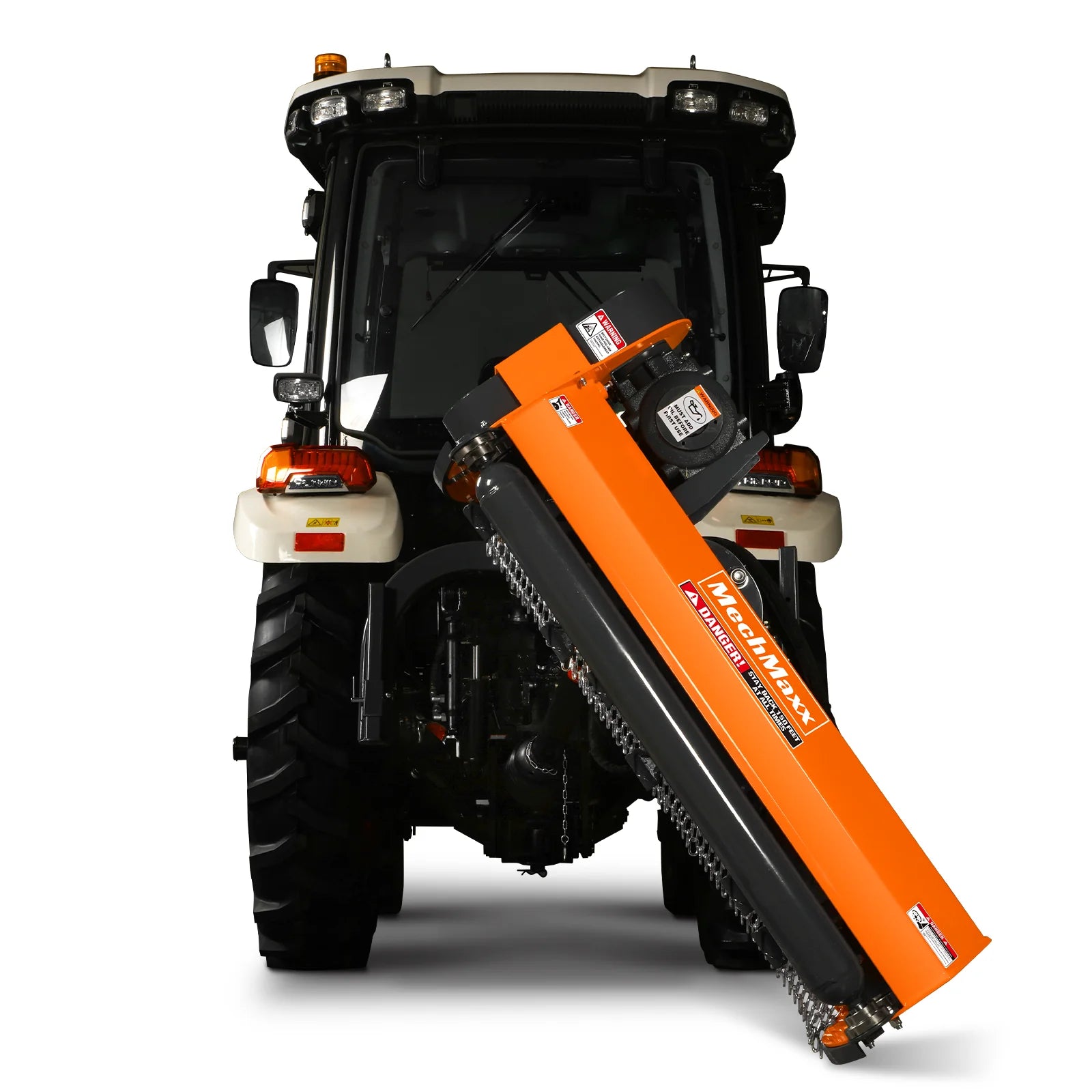

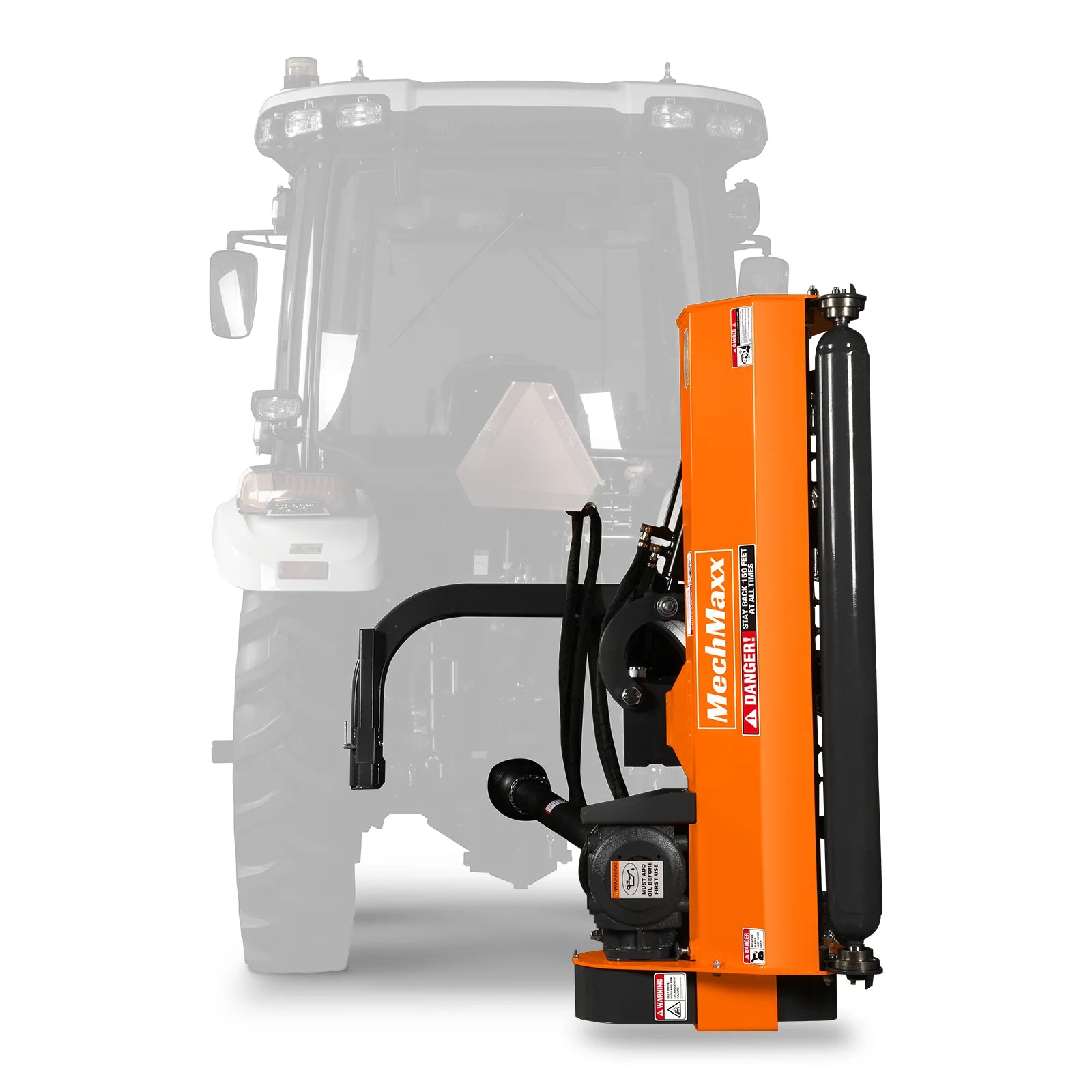

Tilt-Up Angle 90° PTO Shaft Speed 540 rpm

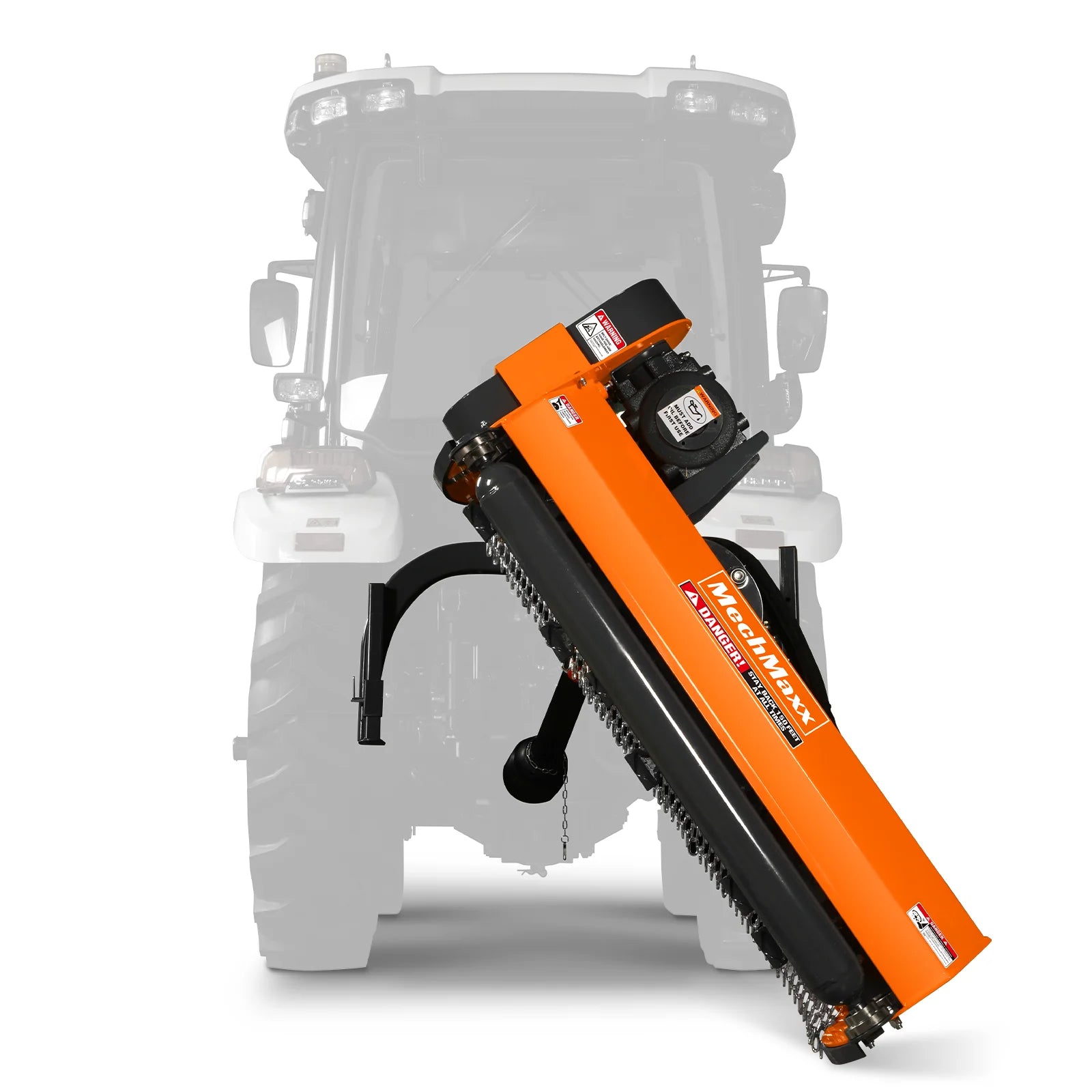

Tilt-Down Angle 60° Deck Thickness 0.16in
Number Of Blades 20 Side Plate Thickness 0.25in
Blade Type Hammer 3-Point Hitch CAT 1

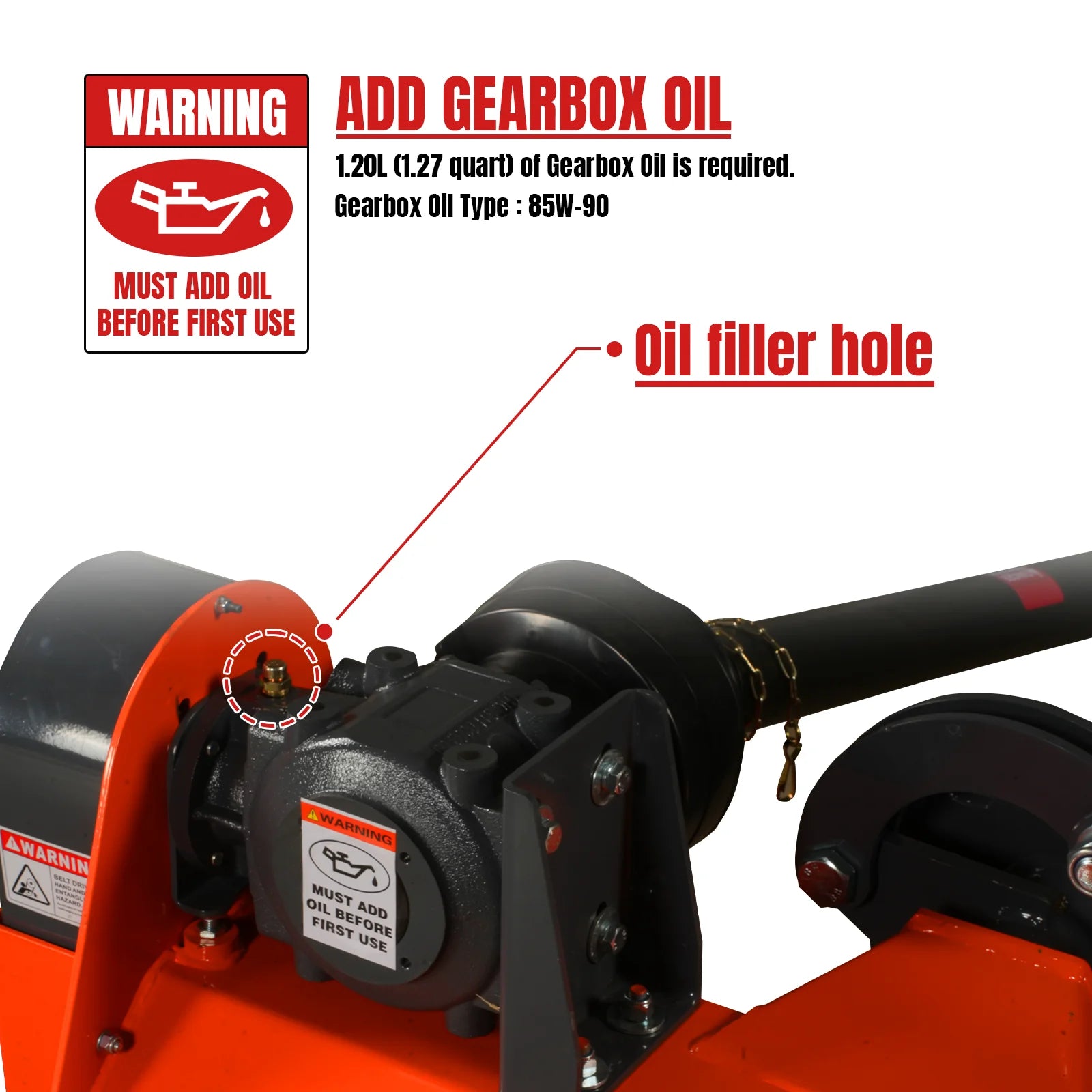

Size of Blades 3.5 x 3.2 x 1.6in Gearbox 0il Type 85W-90
Blade Weight 0.9 lbs Number of Belts 3
Blade  Material Cast Steel Belt Size V Belt 17 x 991
Rotor Bearing SKF Bearing Finish  Powder Coating
Rotor Diameter 4.3in Warranty 1 Year
Blade Swing Diameter 14in Dimensions (L x W x H) 56 x 27.5 x 28in
Rotor Thickness 0.3in Weight (N.W./G.W.) 613/723 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
