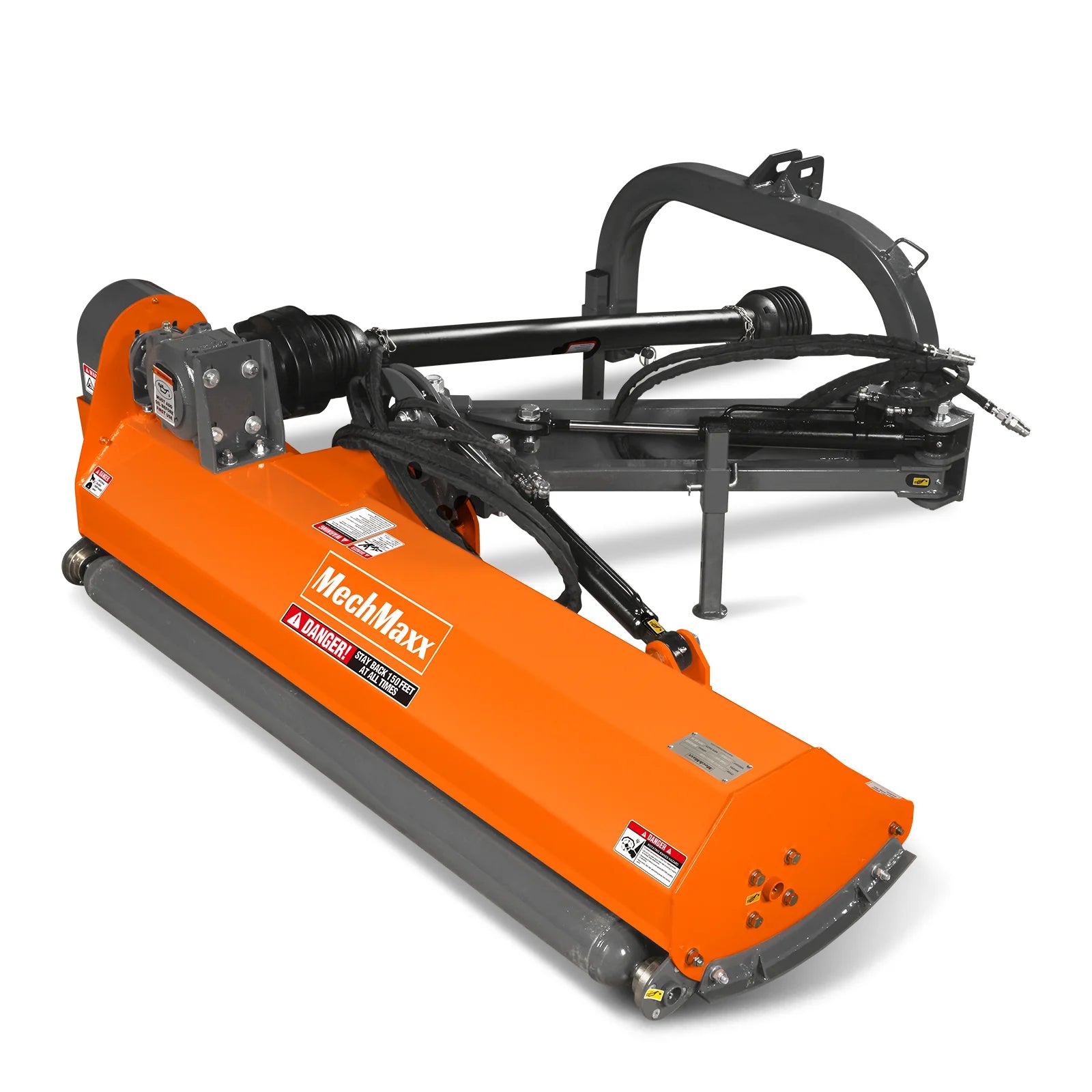

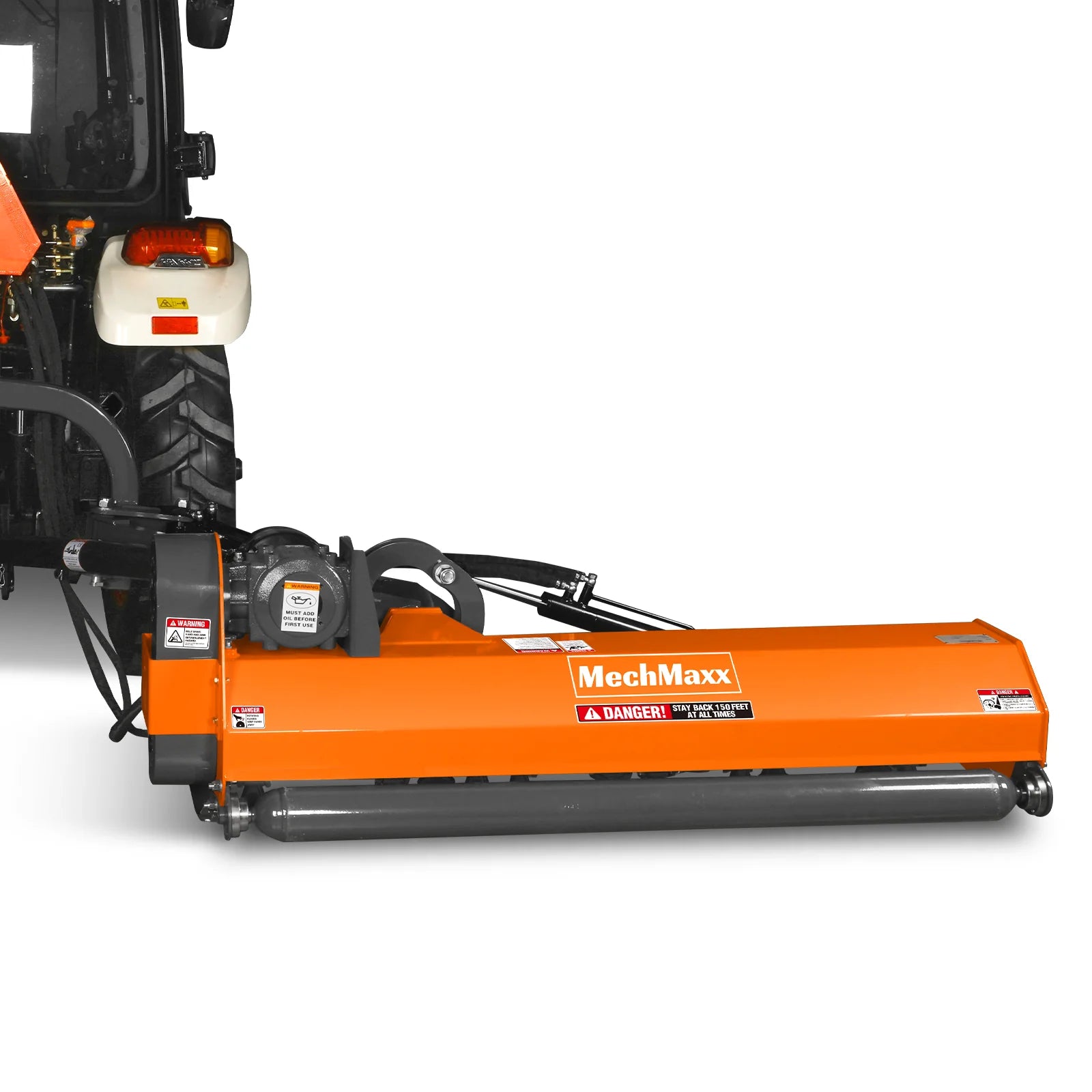

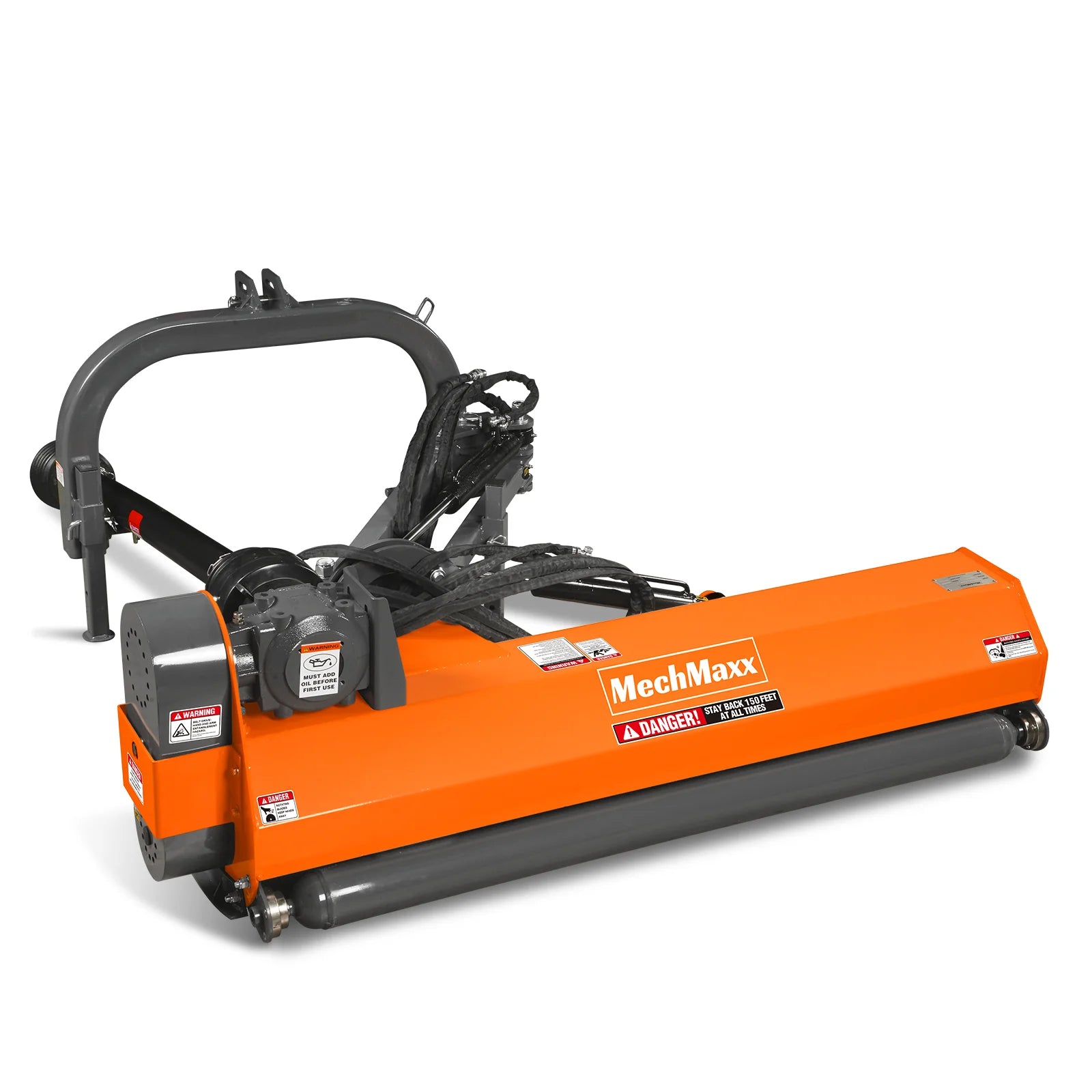

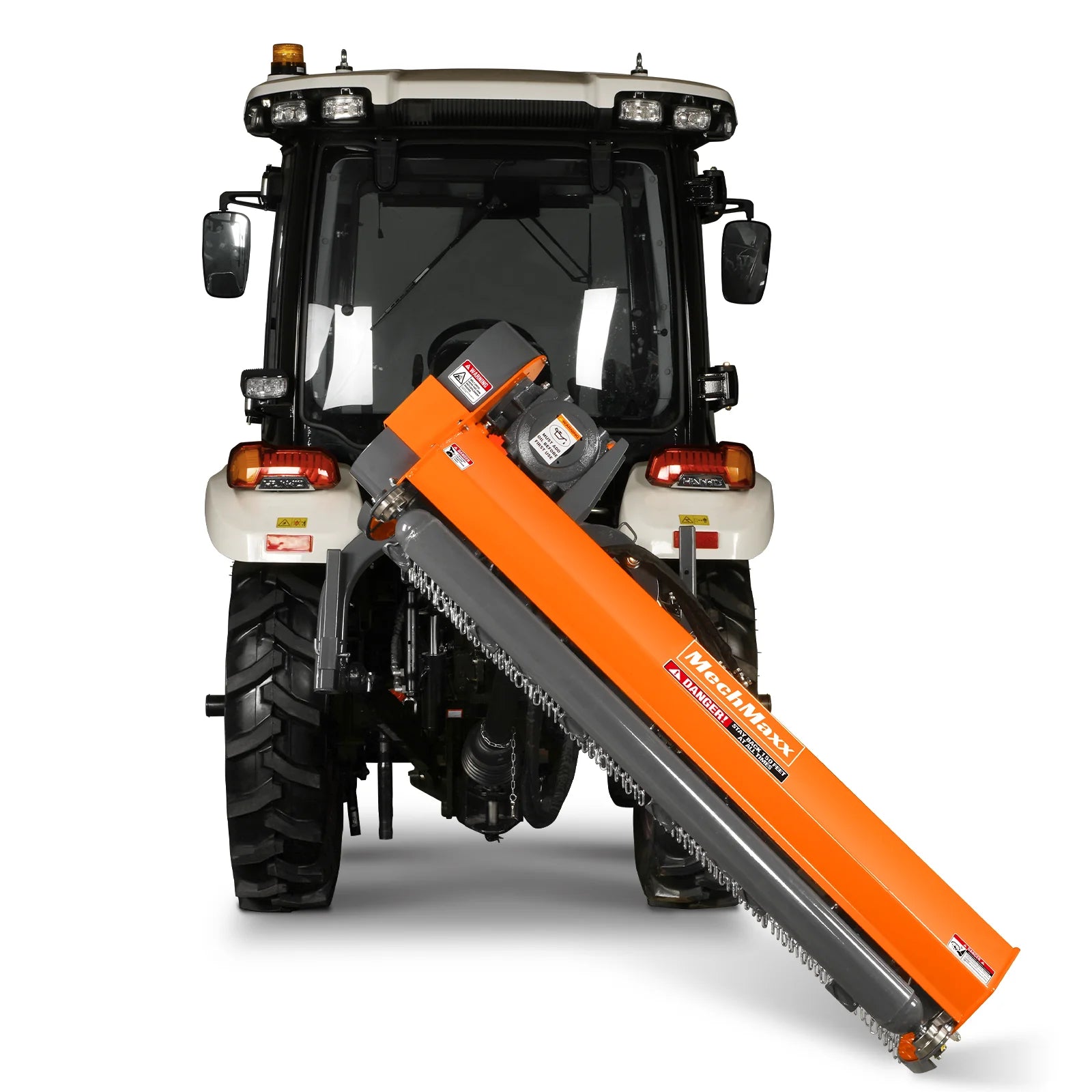

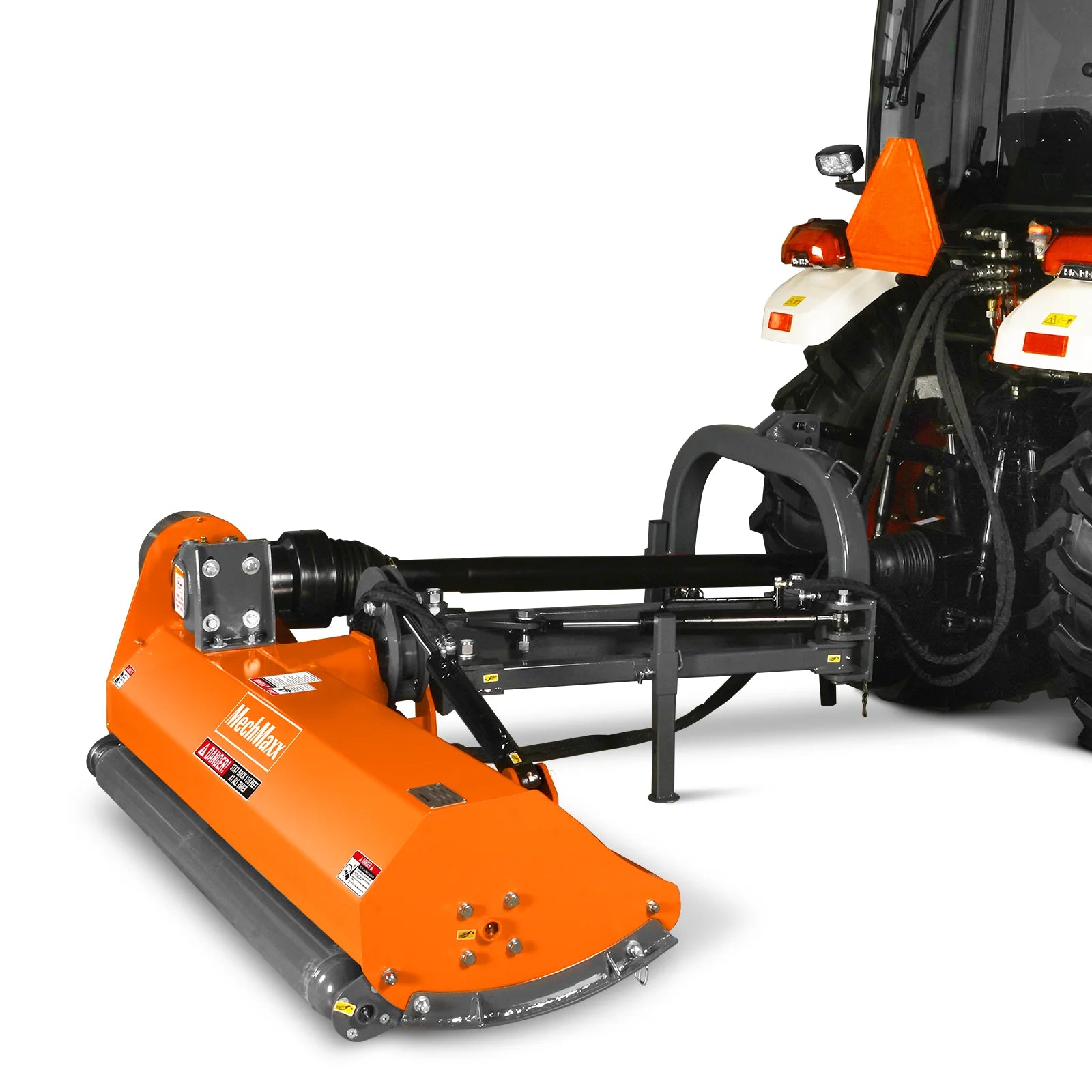

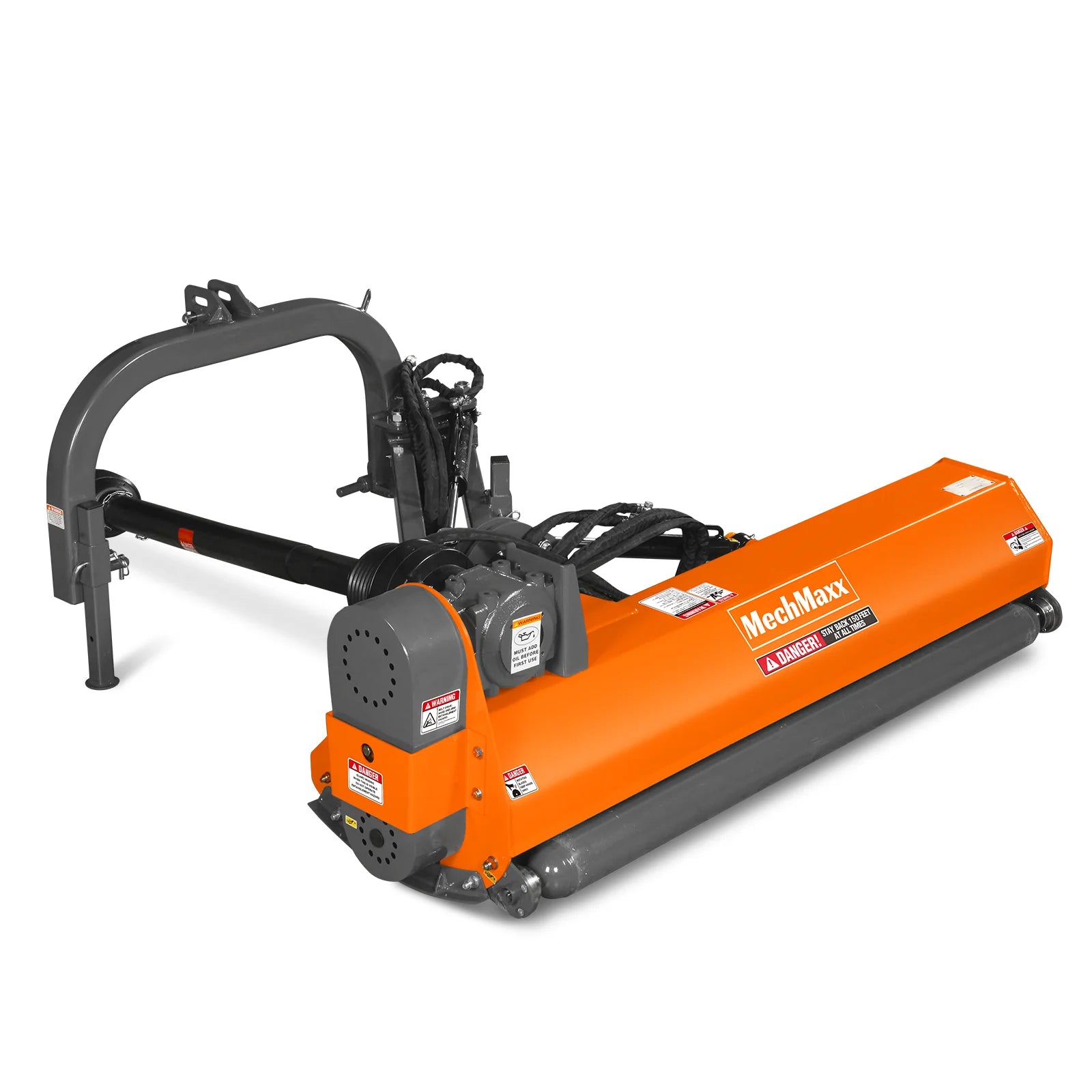

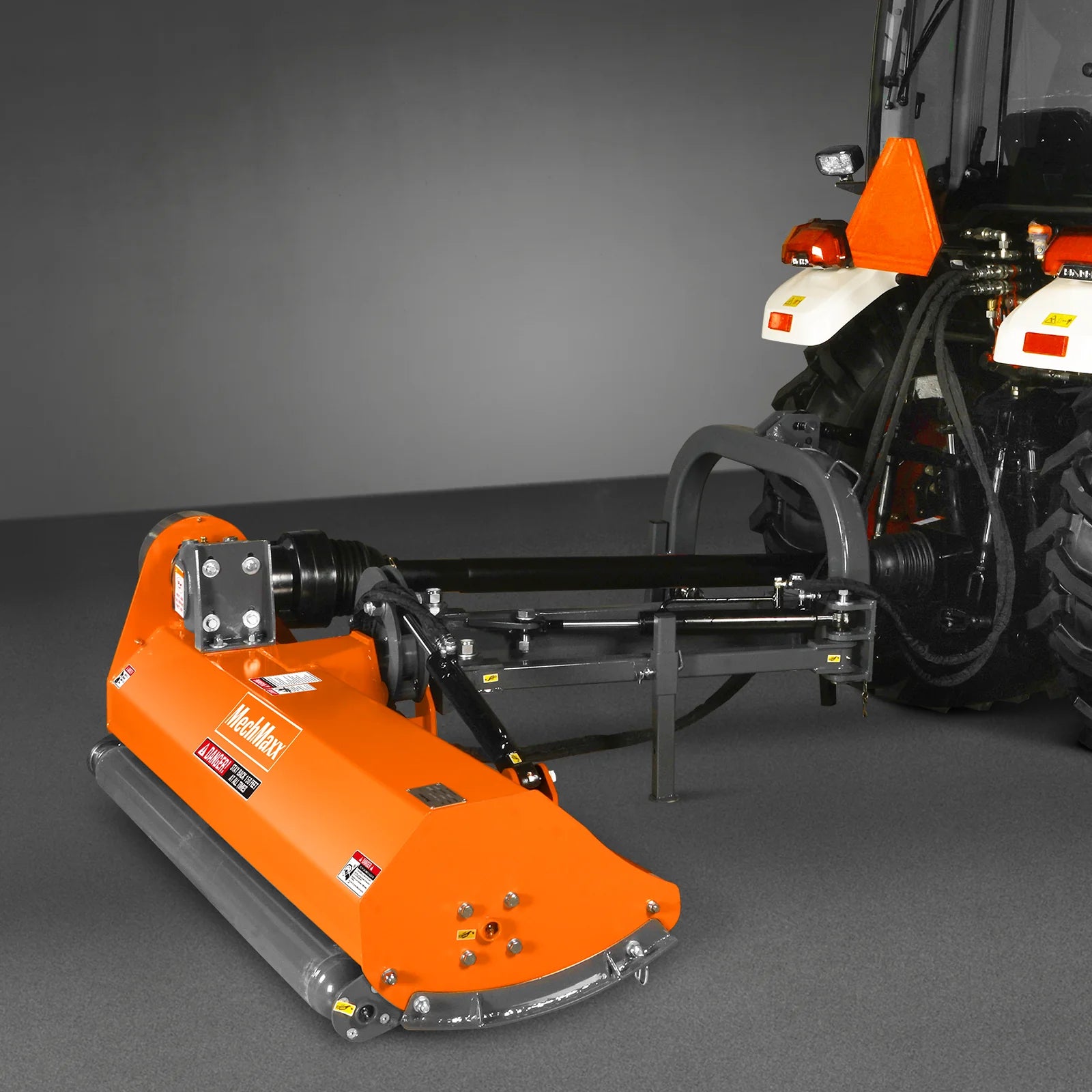

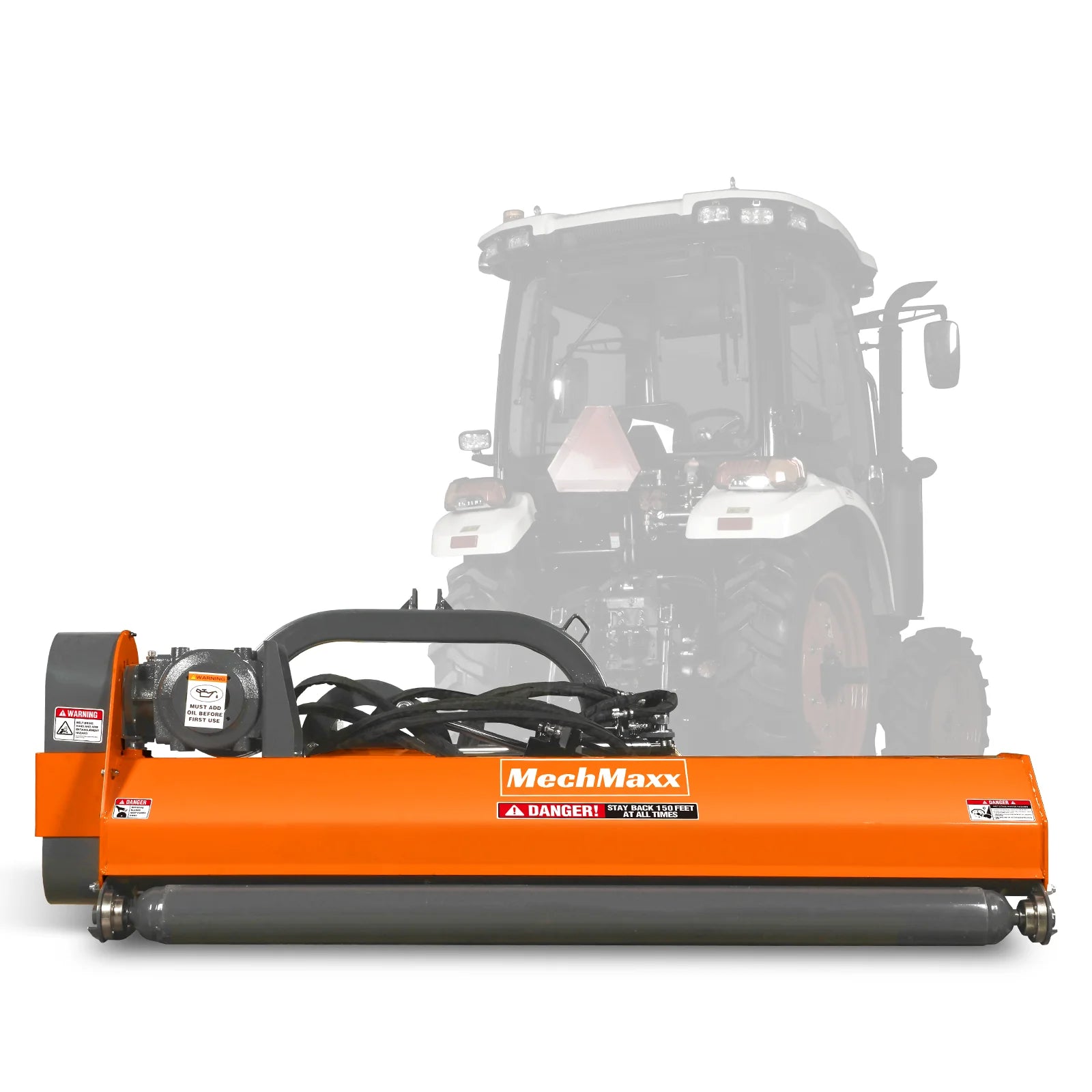

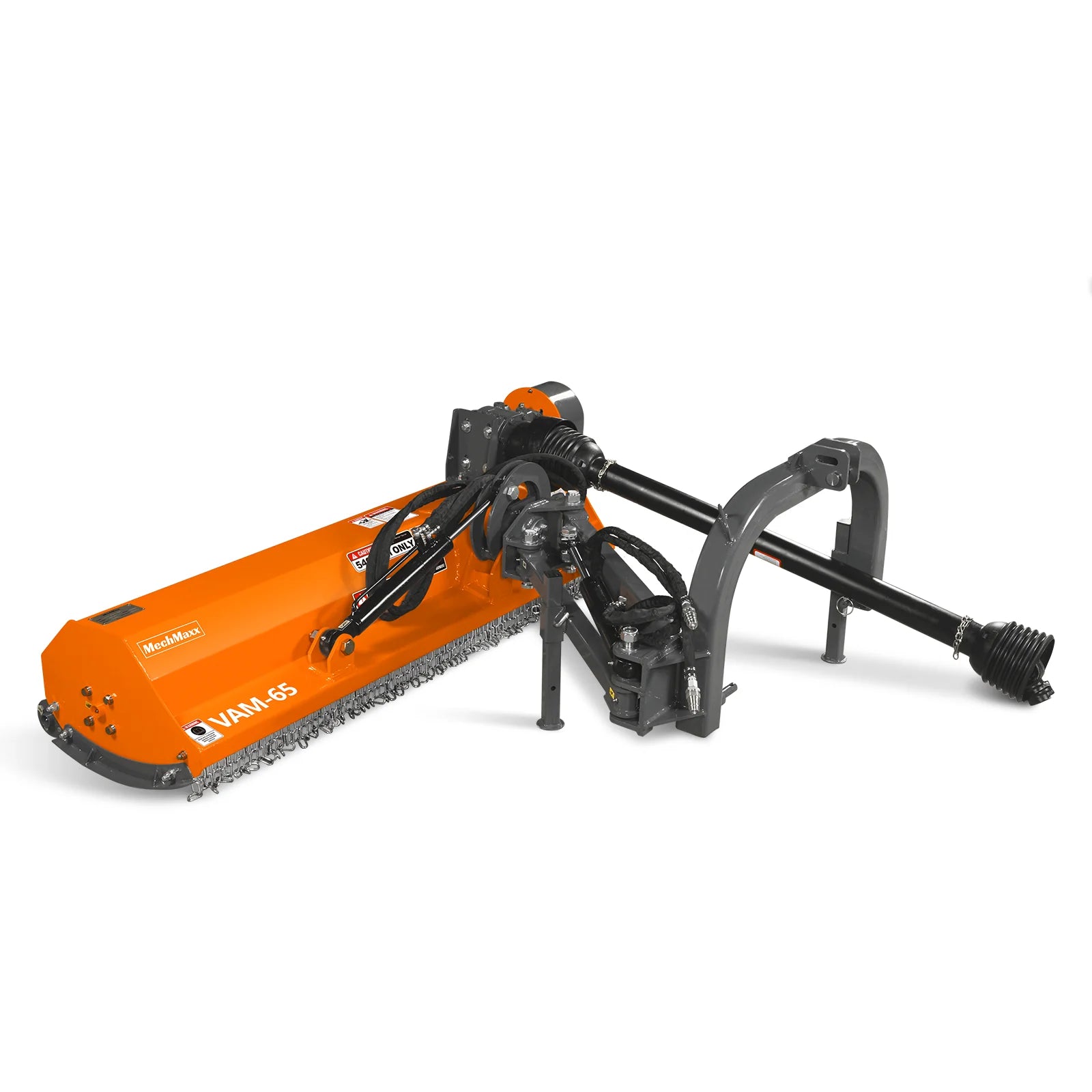

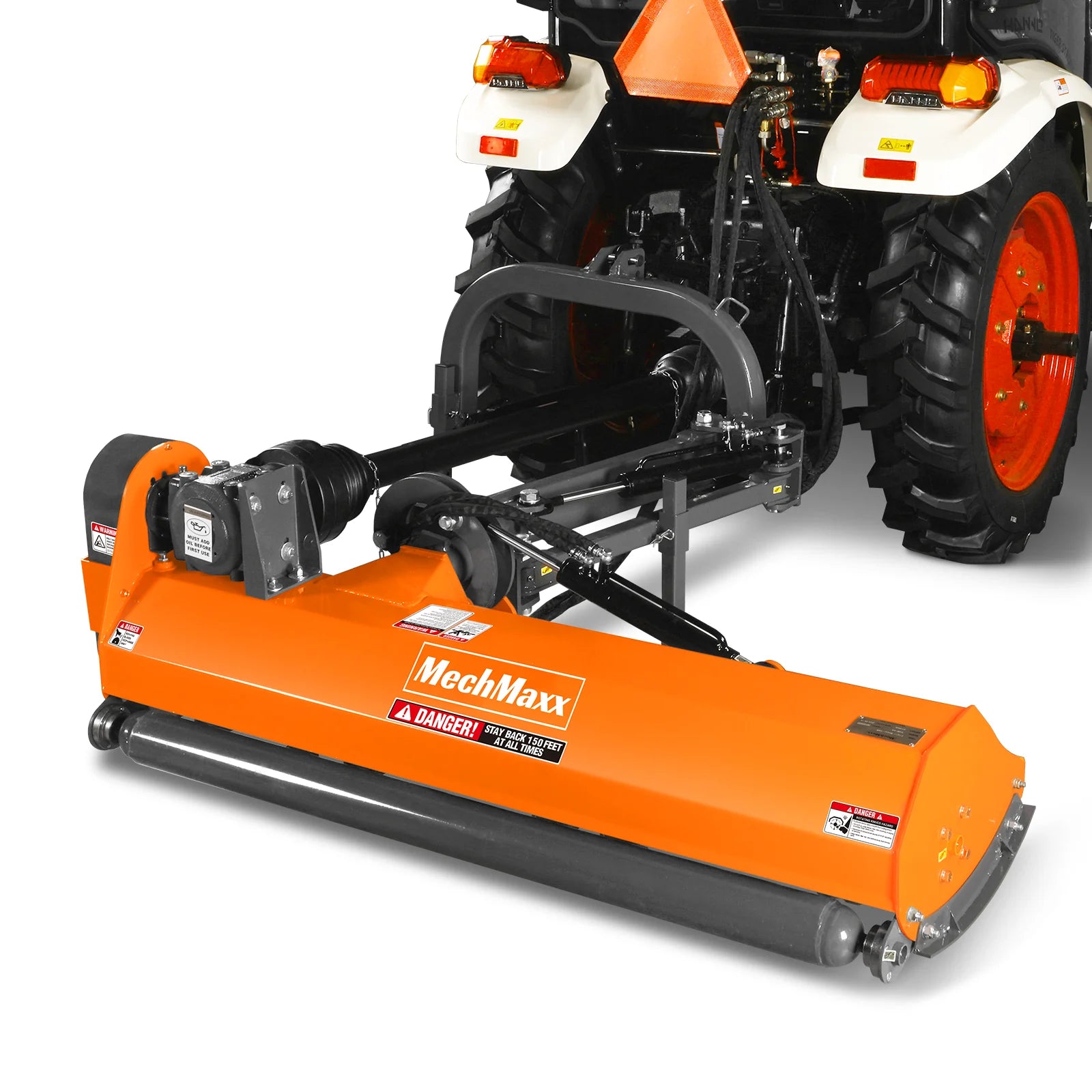

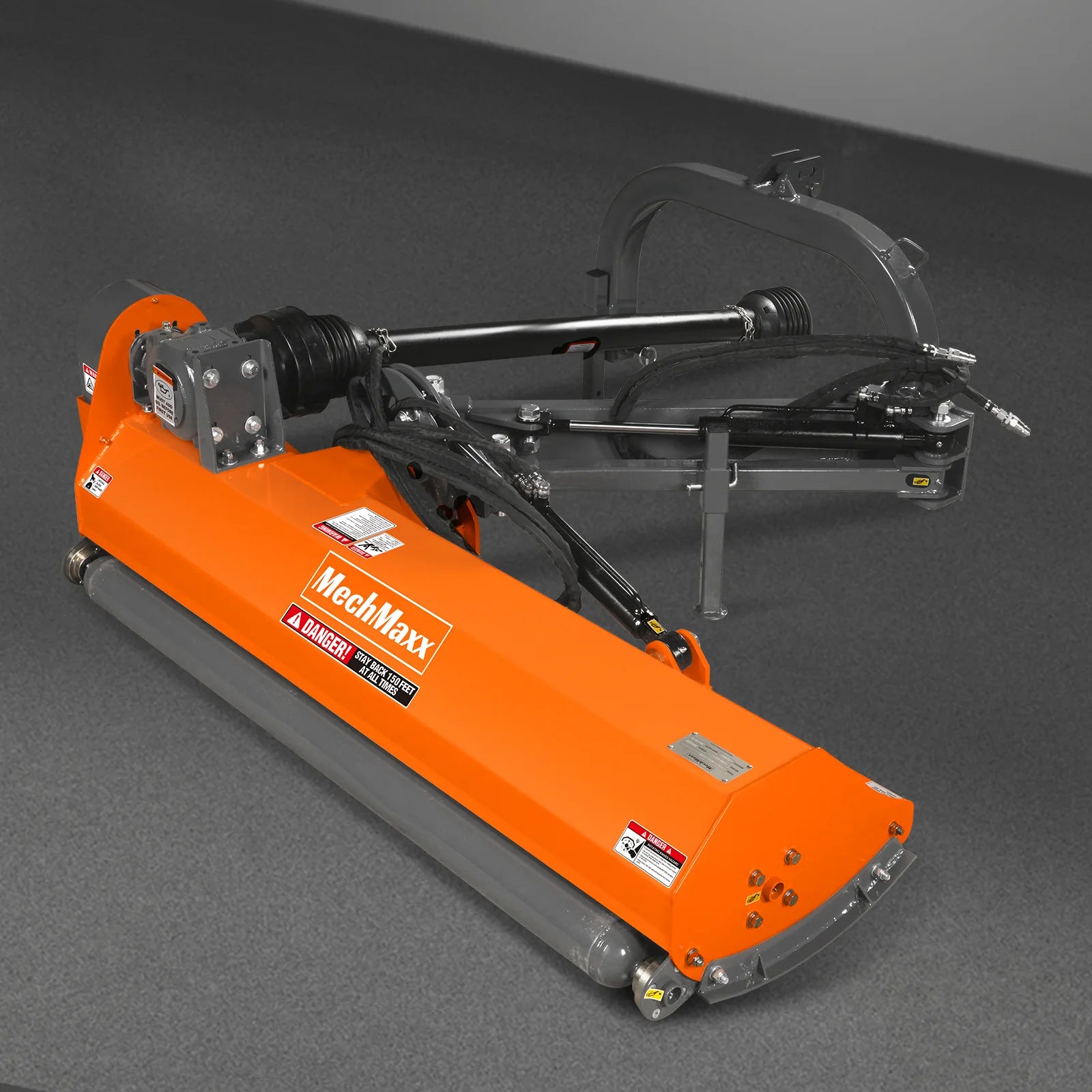

65" Standard 3 Point Offset Flail Ditch Bank Mower, 30-60HP, VAM65

65" Standard 3 Point Offset Flail Ditch Bank Mower, 30-60HP, VAM65

Regular price $2,231.99 USD
Regular price $3,899.00 USD Sale price $2,231.99 USD
Sale Sold out

🖤 BLACK FRIDAY –30% OFF

⚠️ Quantity is very low

Offer ends in:

00h : 00m : 00s
Taxes included. Shipping calculated at checkout.
Quantity
Engine Power Required 30-60 HP Rotor Shaft Speed 2356 rpm
Working Width 65in Hydraulic Fittings Size G1/2 in
Overall Width 72in Hydraulic Hoses Quantity 4
Min. Blade Ground Clearance 0.6in Drive Type Belt Drive
Max. Cutting Diameter

Depends On The Type Of Grass

Spline End 1.375in  Z6

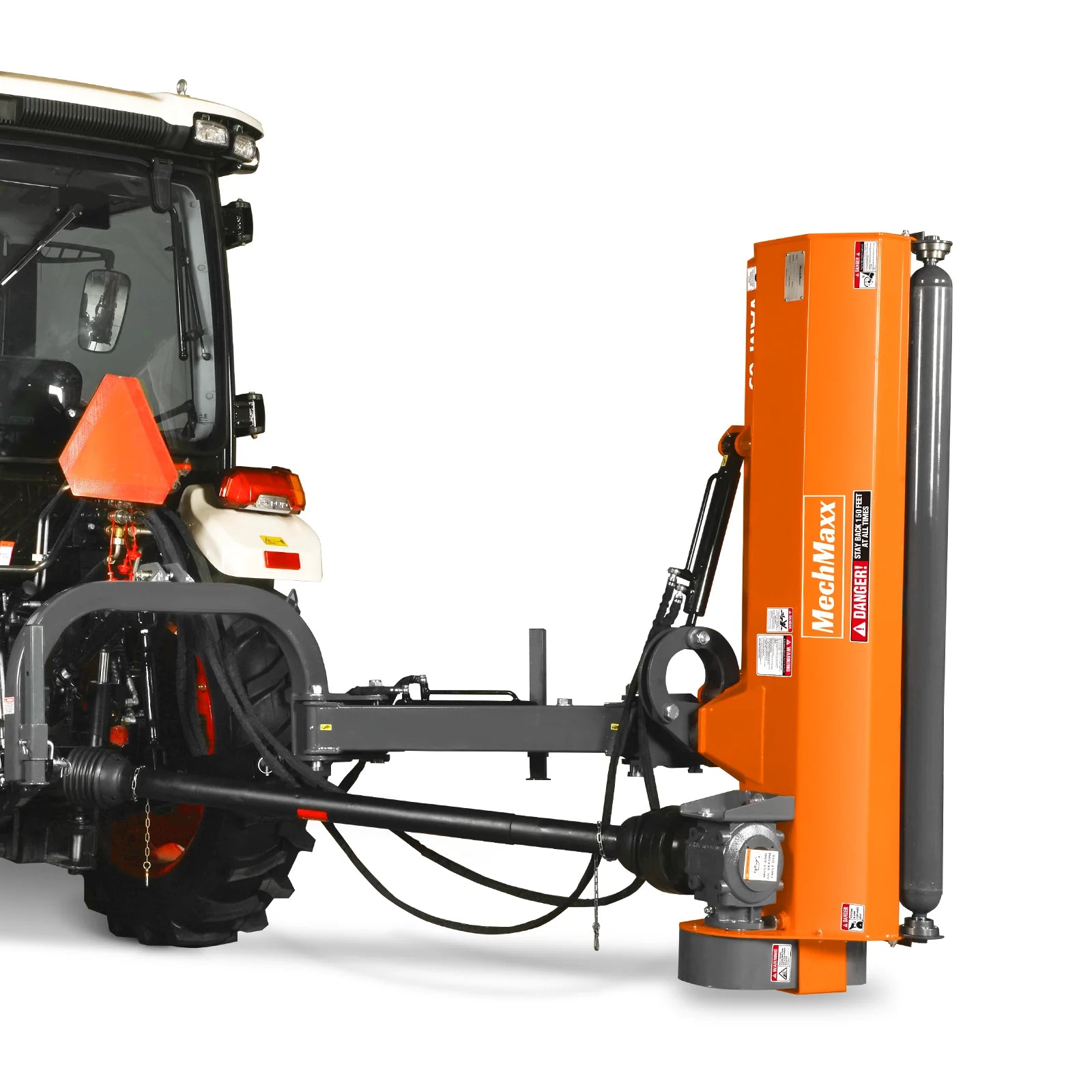

Offset Distance From The Center (Maximum) 85in Driveline Shaft Length T6-LF-63  With Shear Bolt ;
63-77 in [05B-1600]

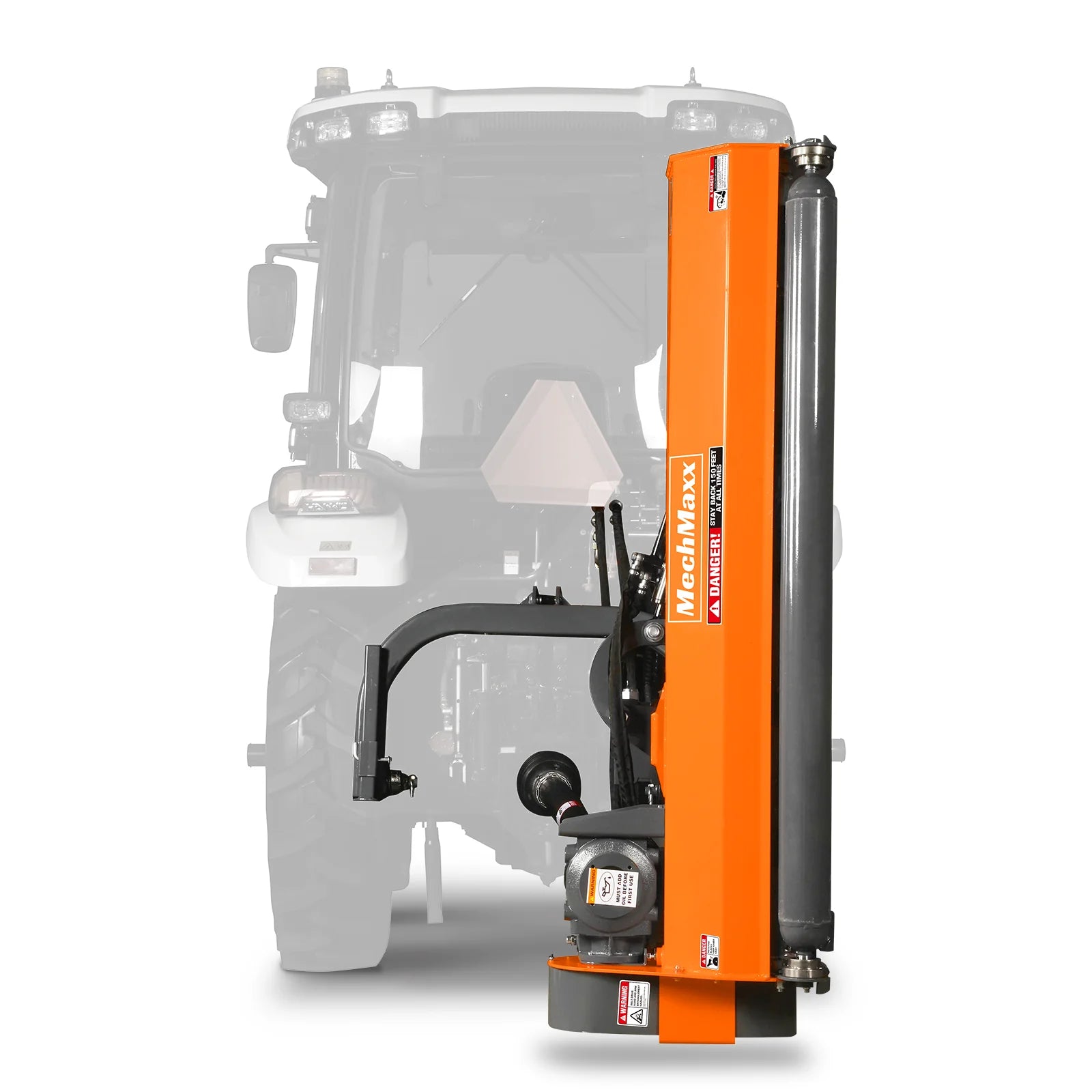

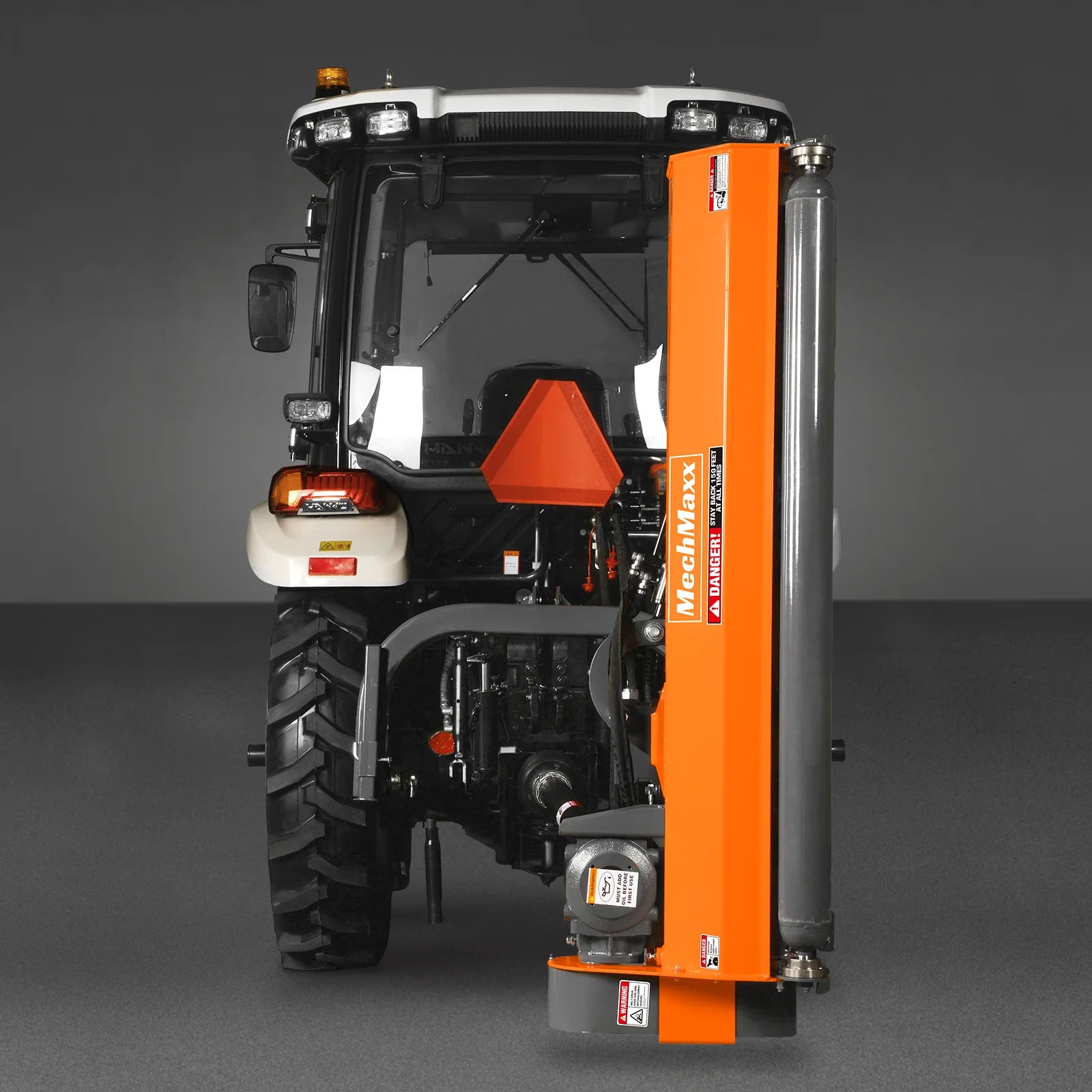

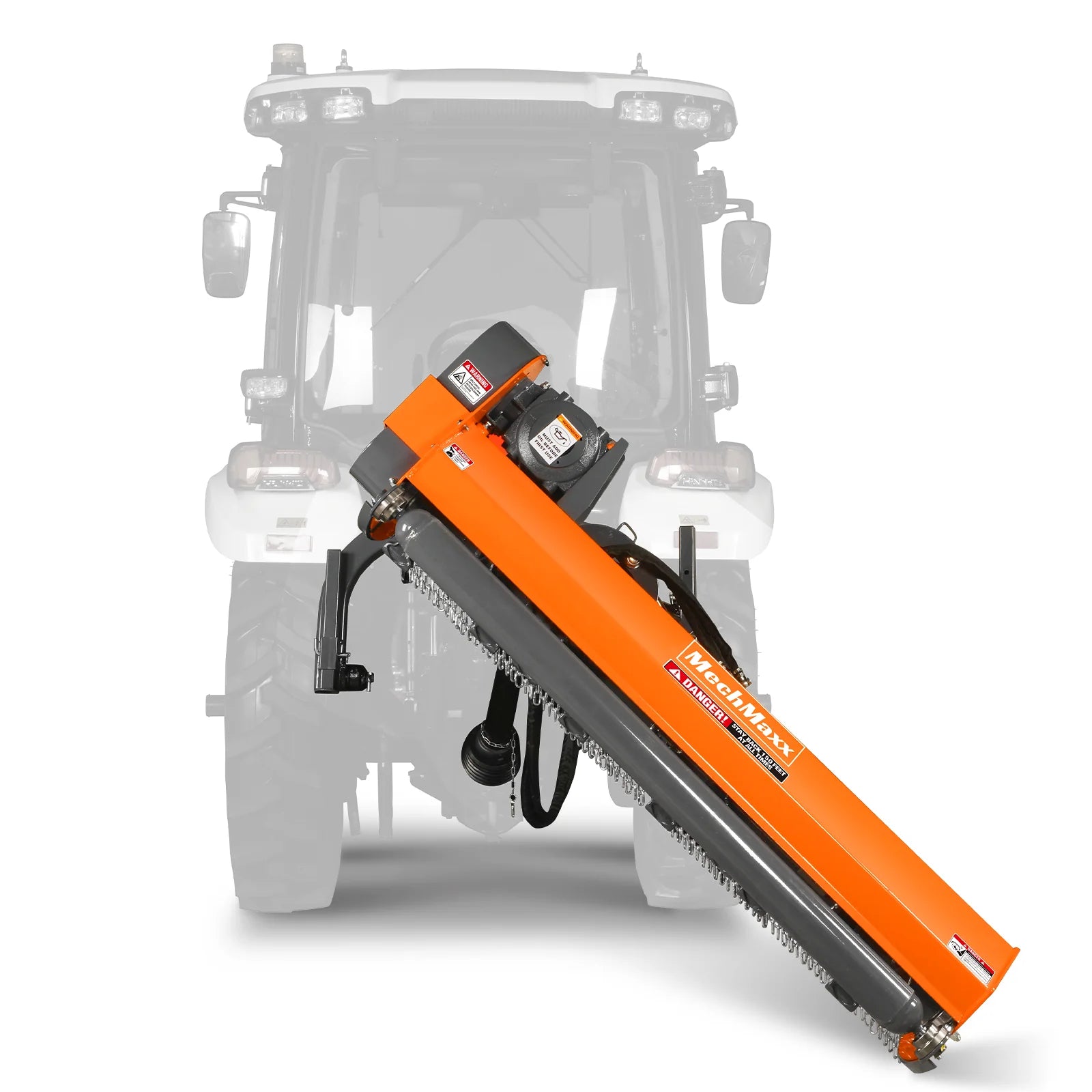

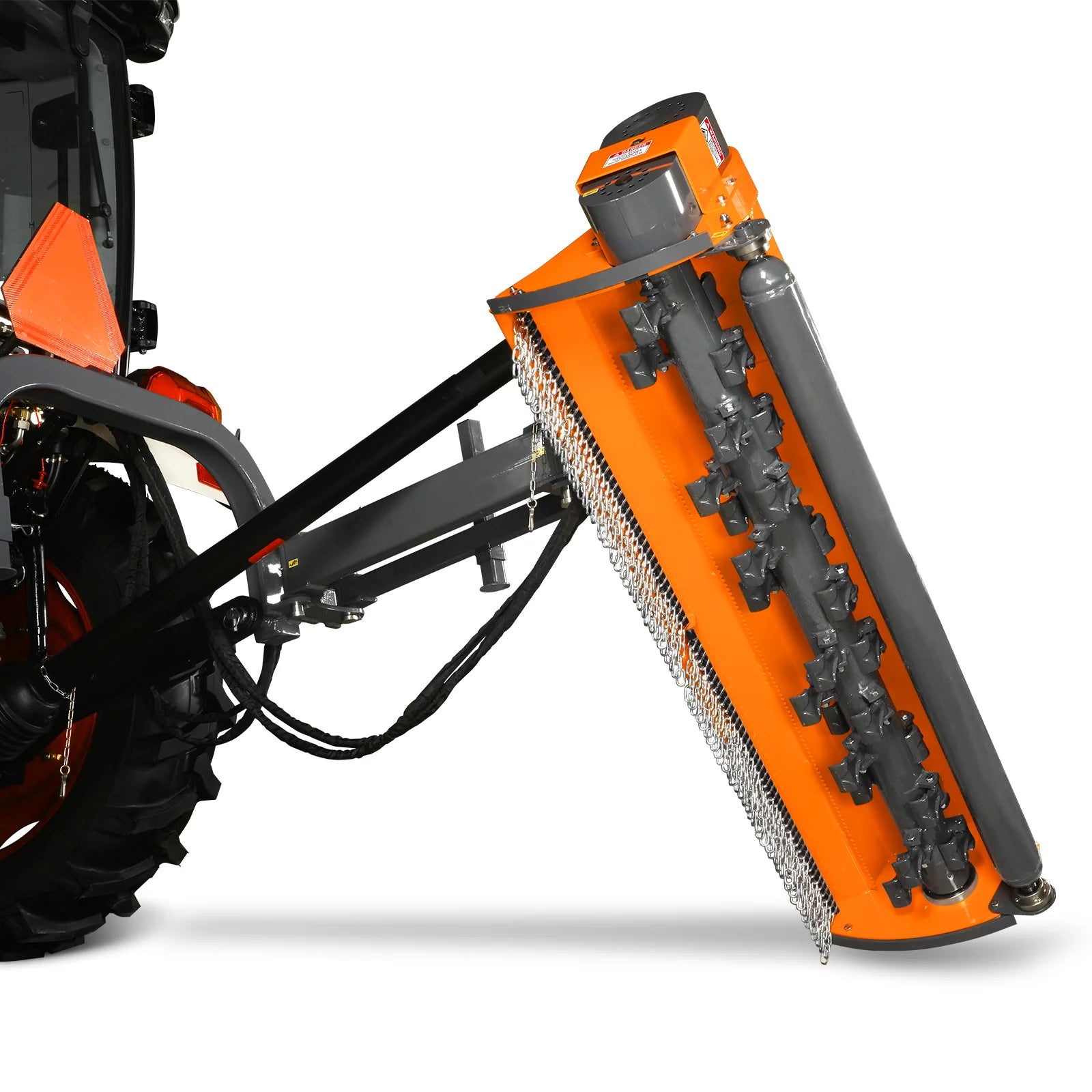

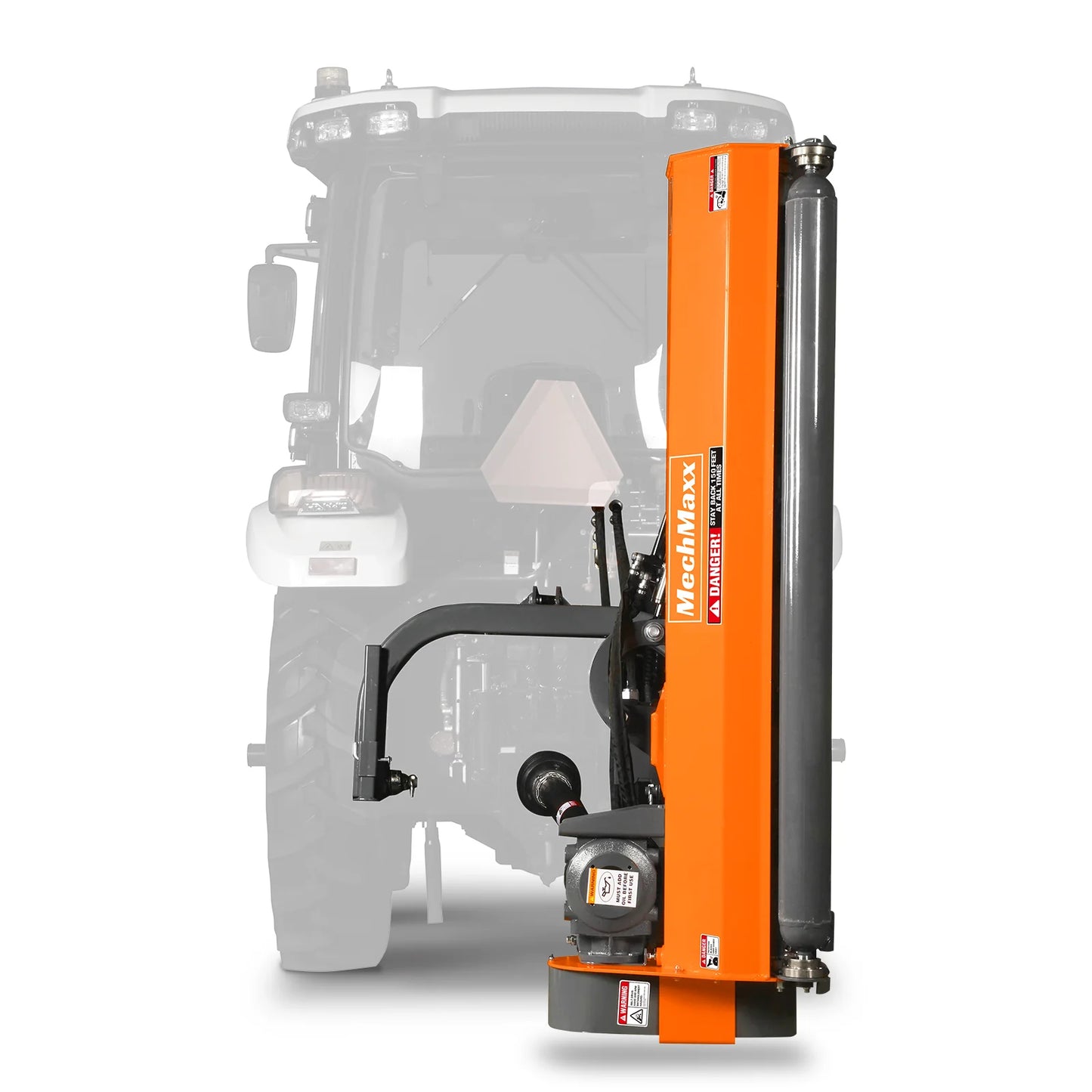

Tilt-Up Angle 90° PTO Shaft Speed 540 rpm

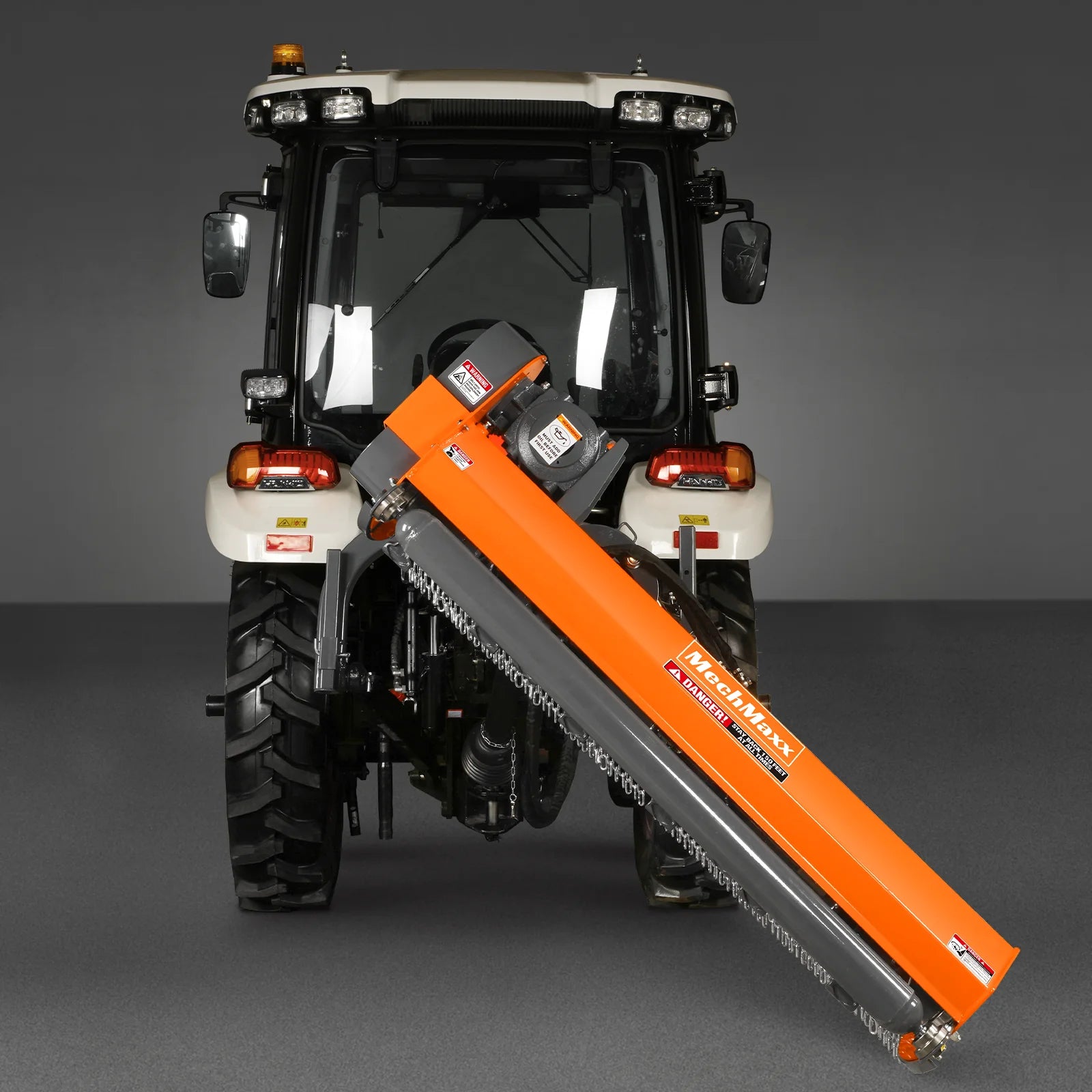

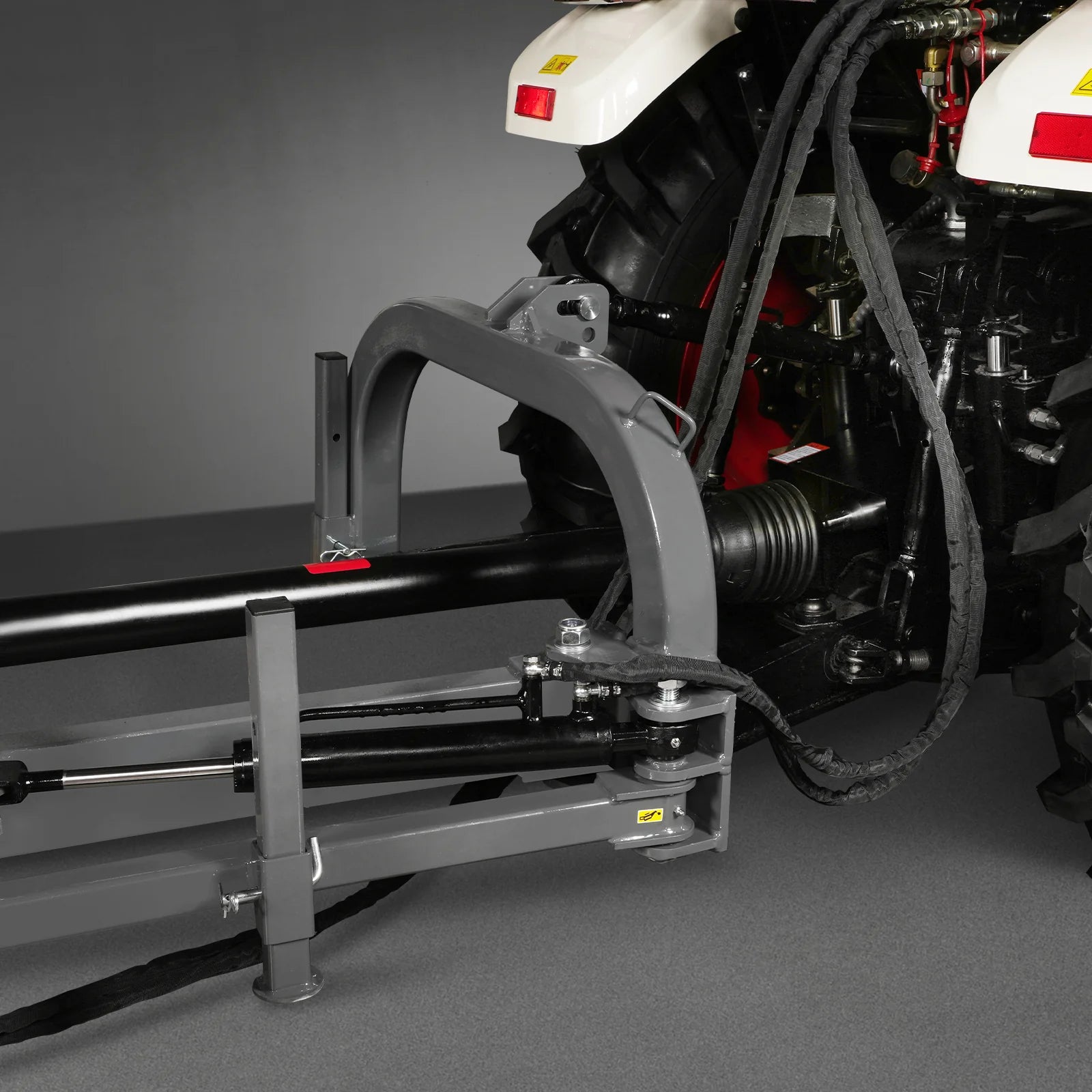

Tilt-Down Angle 60° 3-Point Hitch CAT 1
Number Of Blades 28 Deck Thickness 0.16in
Blade Type Hammer Side Plate Thickness 0.25in
Size of Blades 3.5 x 3.2 x 1.6in Number of Belts 3
Blade Weight 0.9 lbs Belt Size V Belt 17 x 991

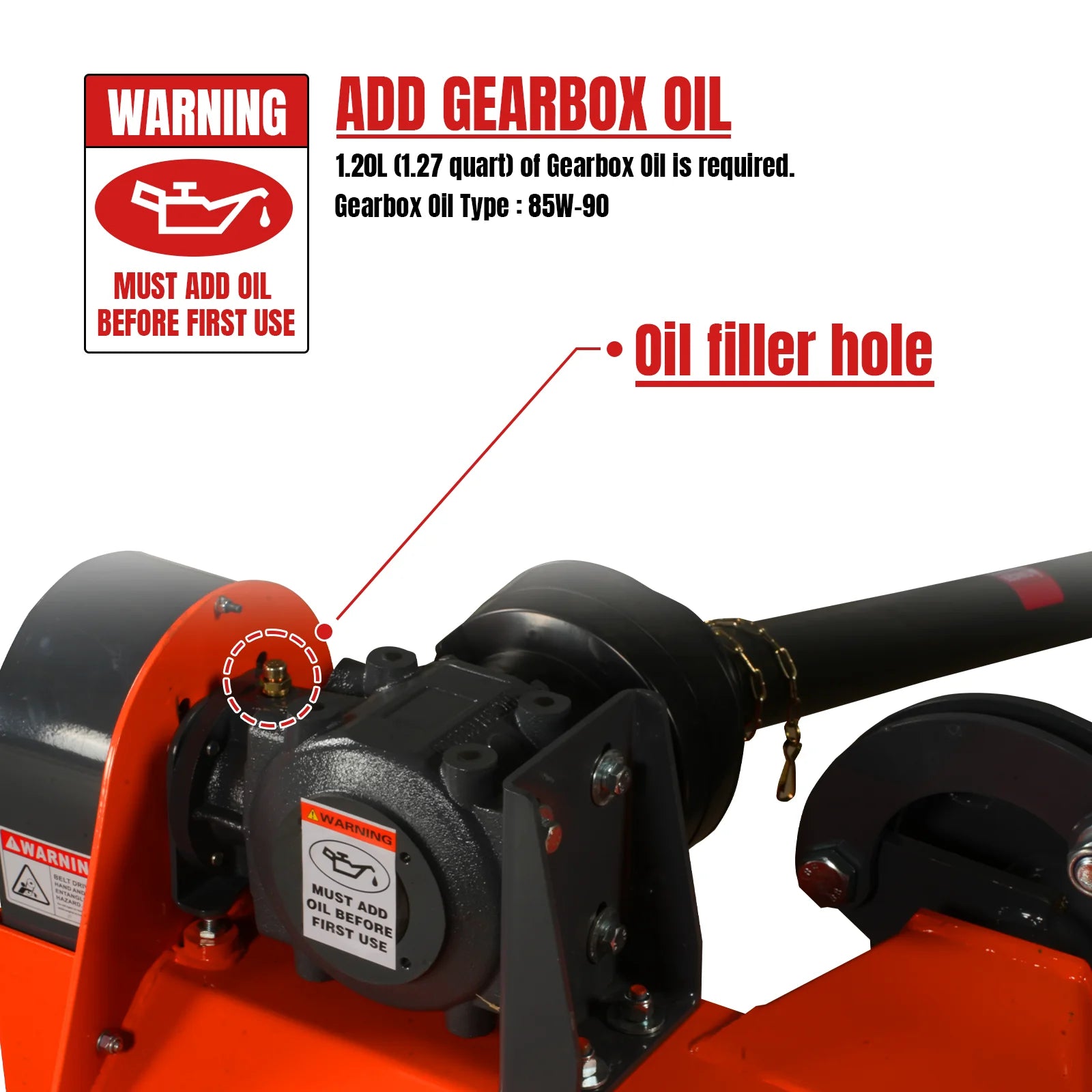

Blade Material Cast Steel Gearbox 0il Type 85W-90
Rotor Bearing SKF Bearing Dimensions (L x W x H) 72 x 27.5 x 28 in
Rotor Diameter 4.3in Finsh  Powder Coating
Blade Swing Diameter 14in Warranty 1 Year
Rotor Thickness 0.3in Weight (N.W./G.W.) 701/820 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
