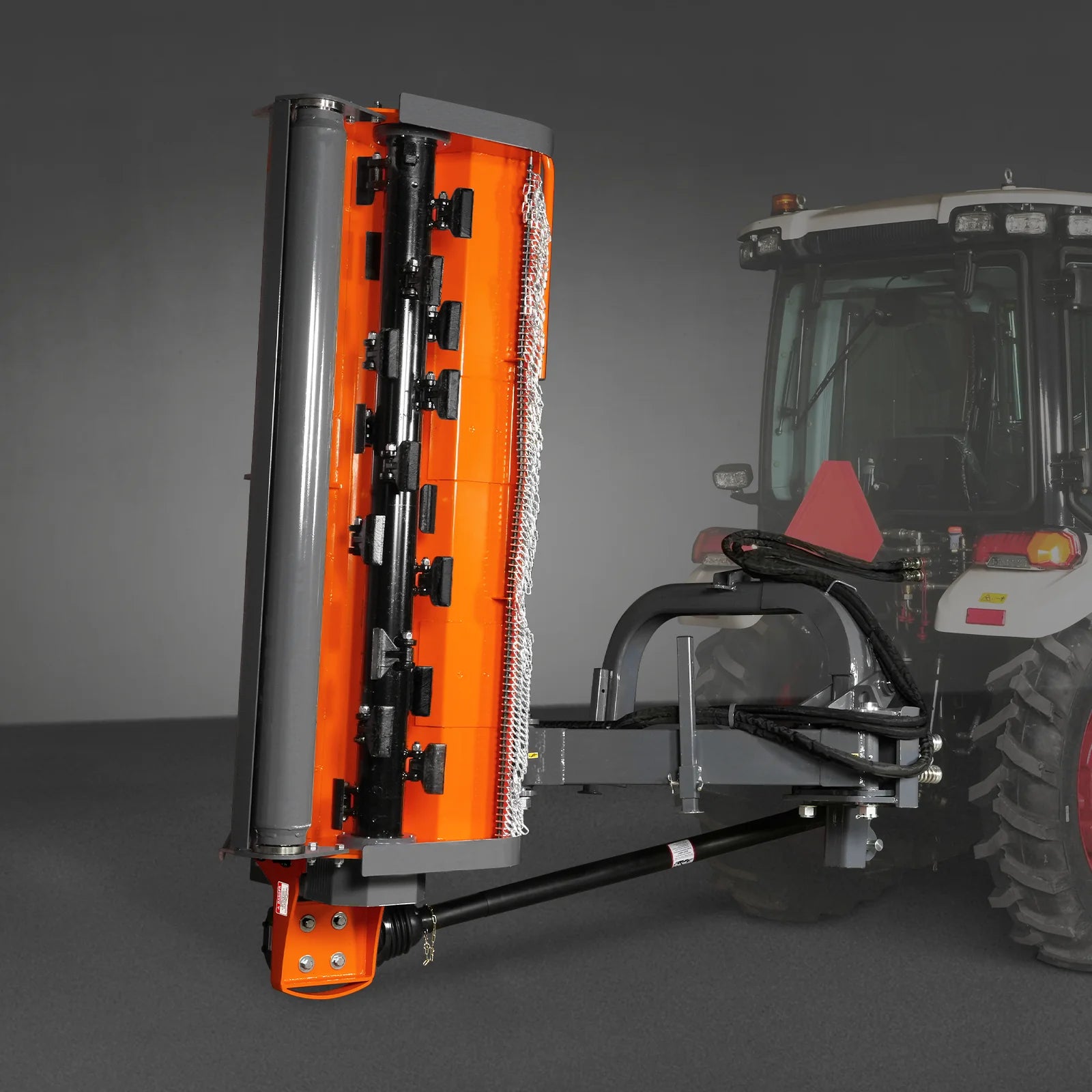

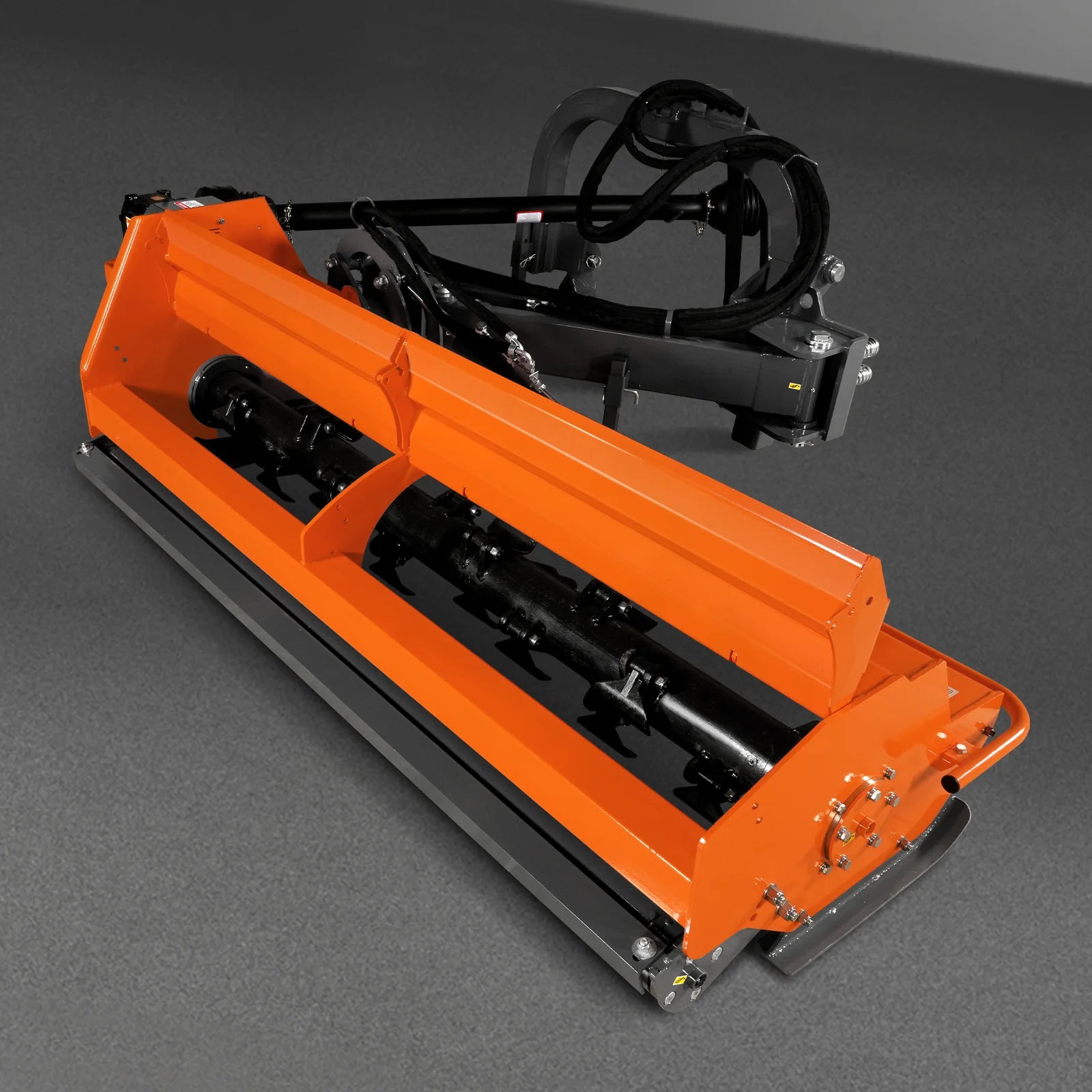

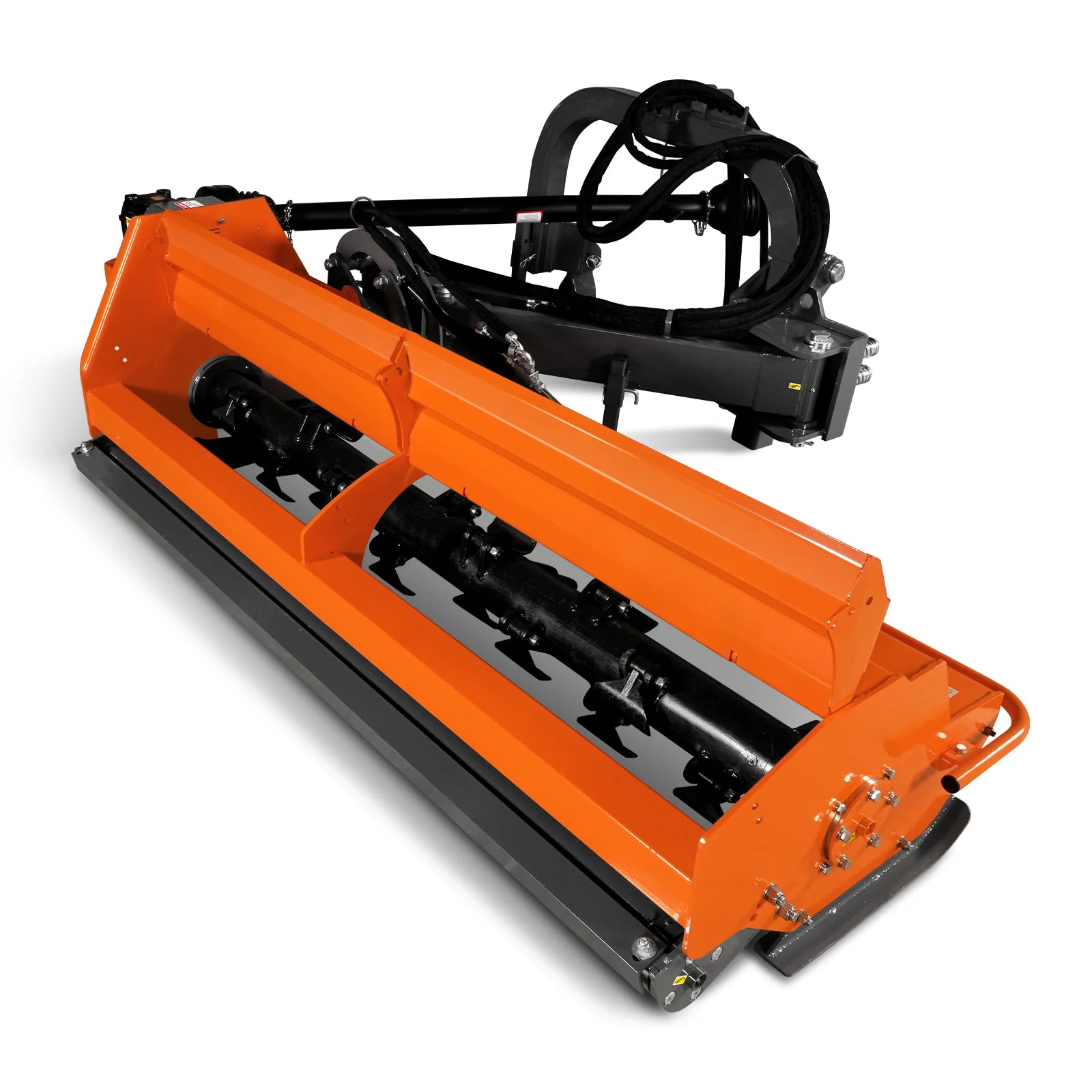

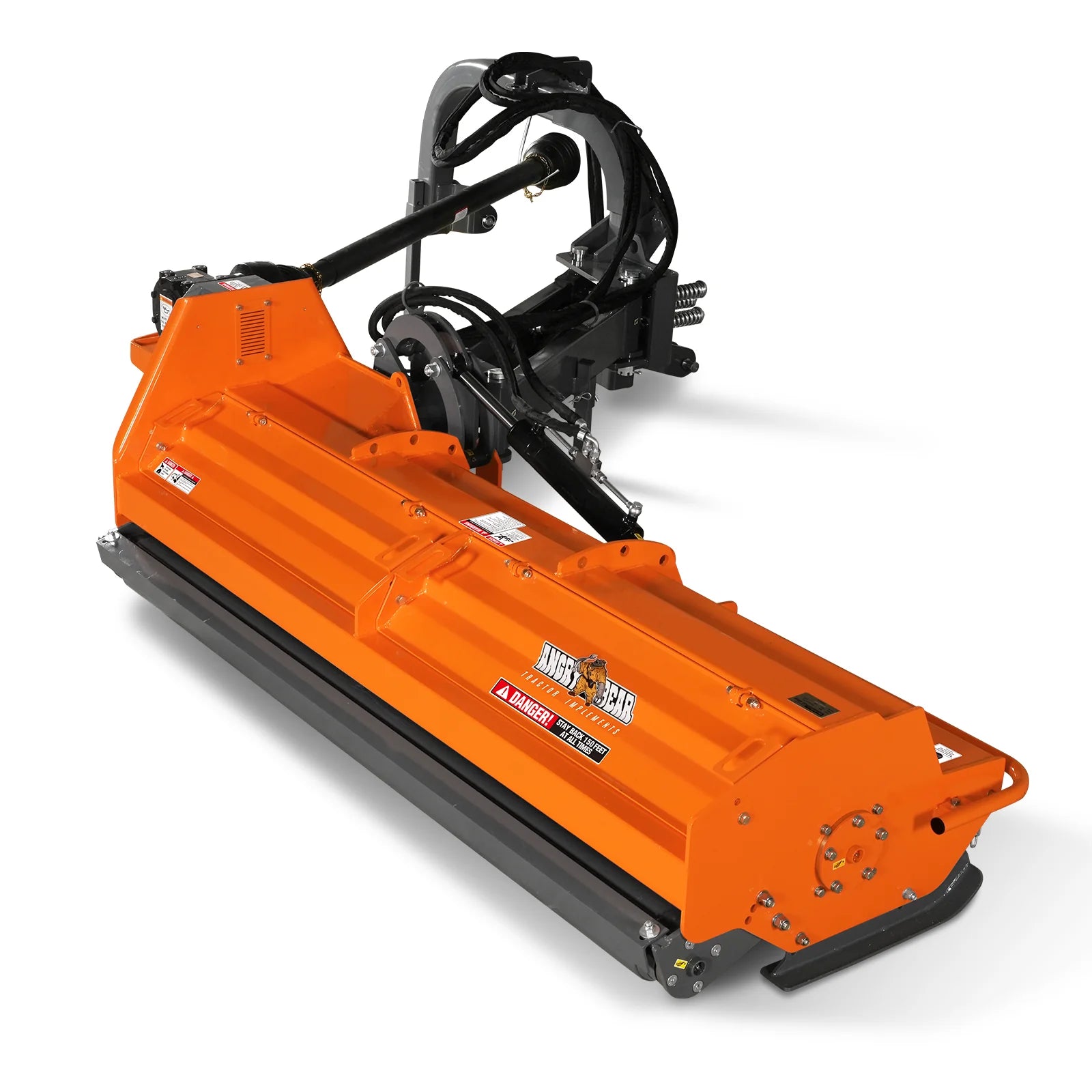

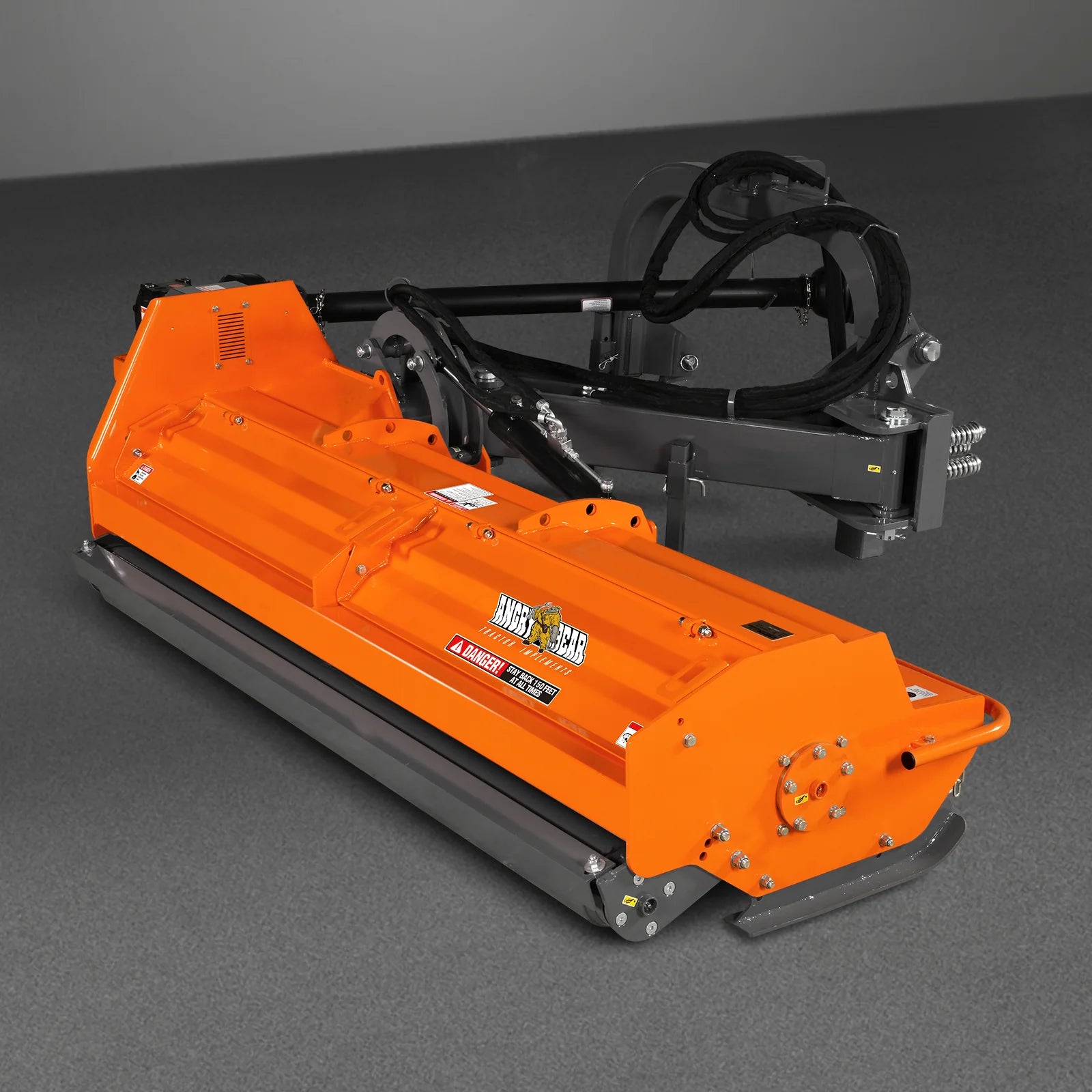

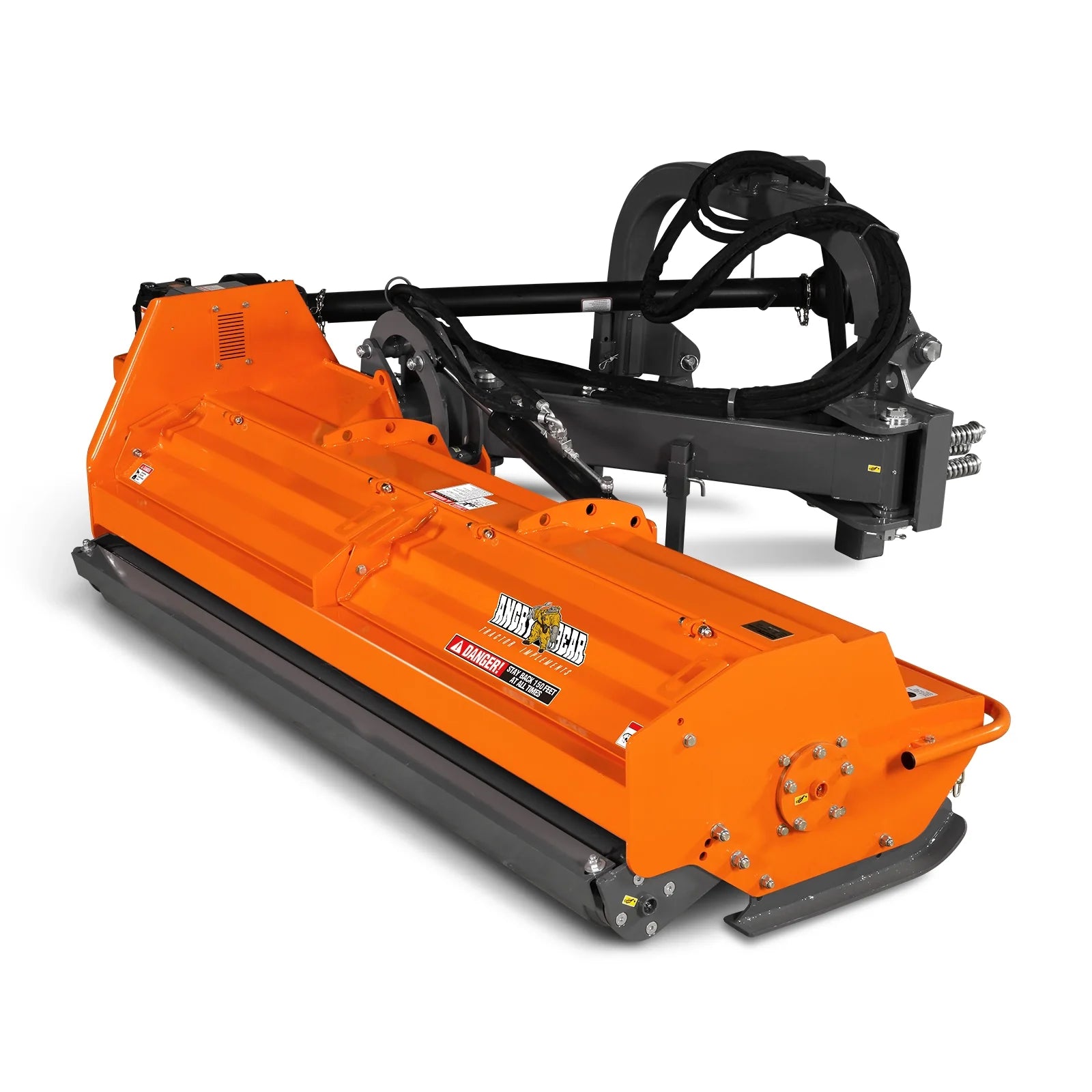

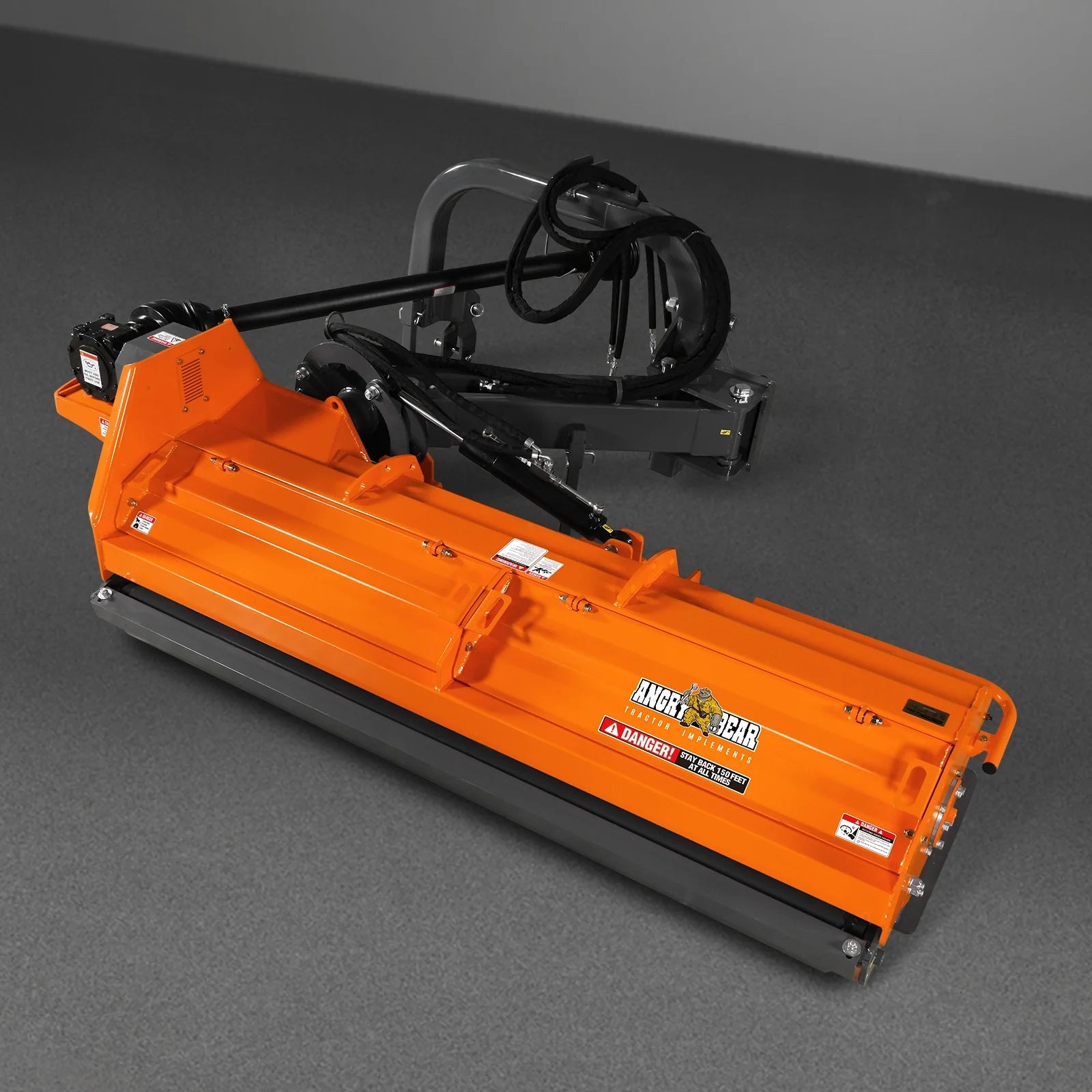

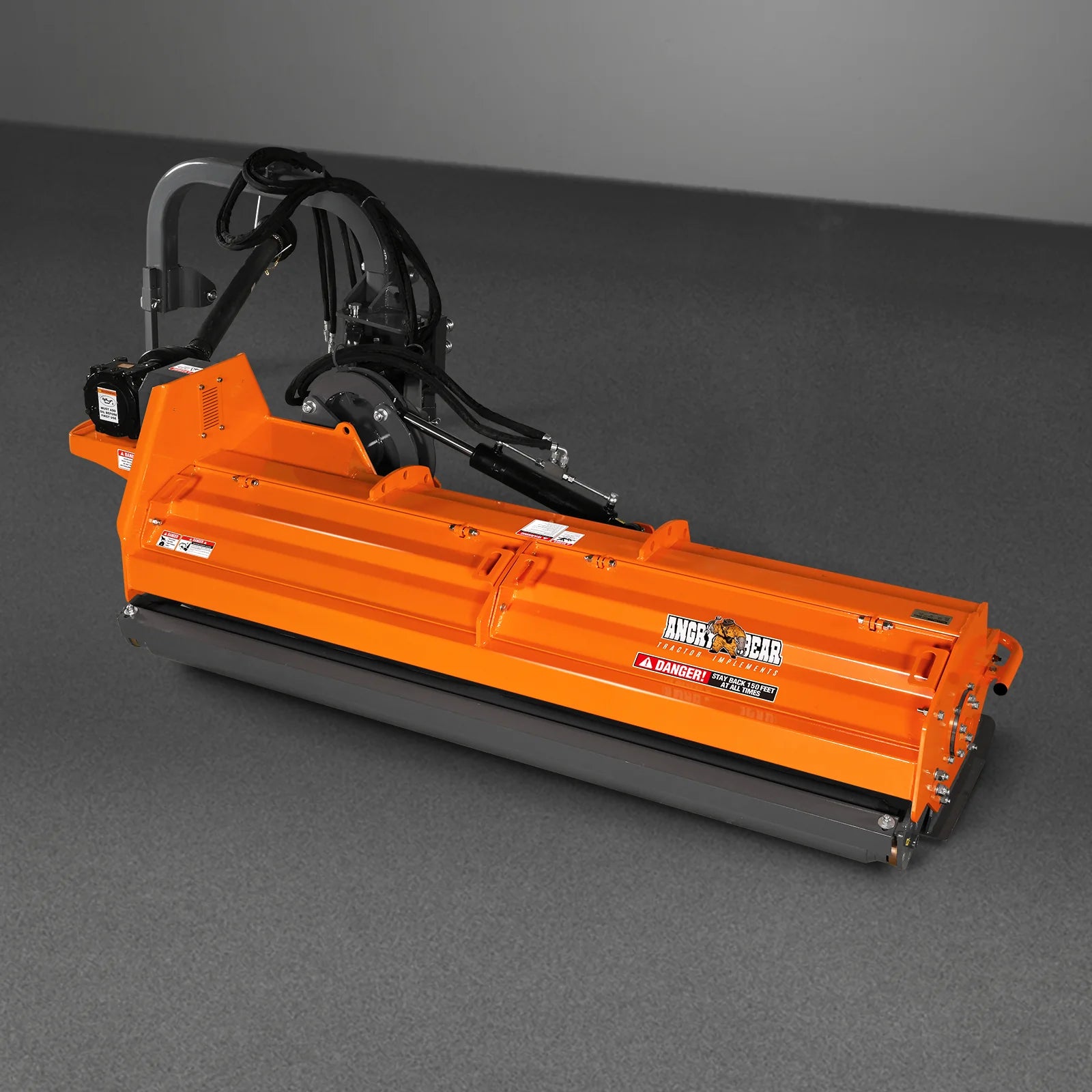

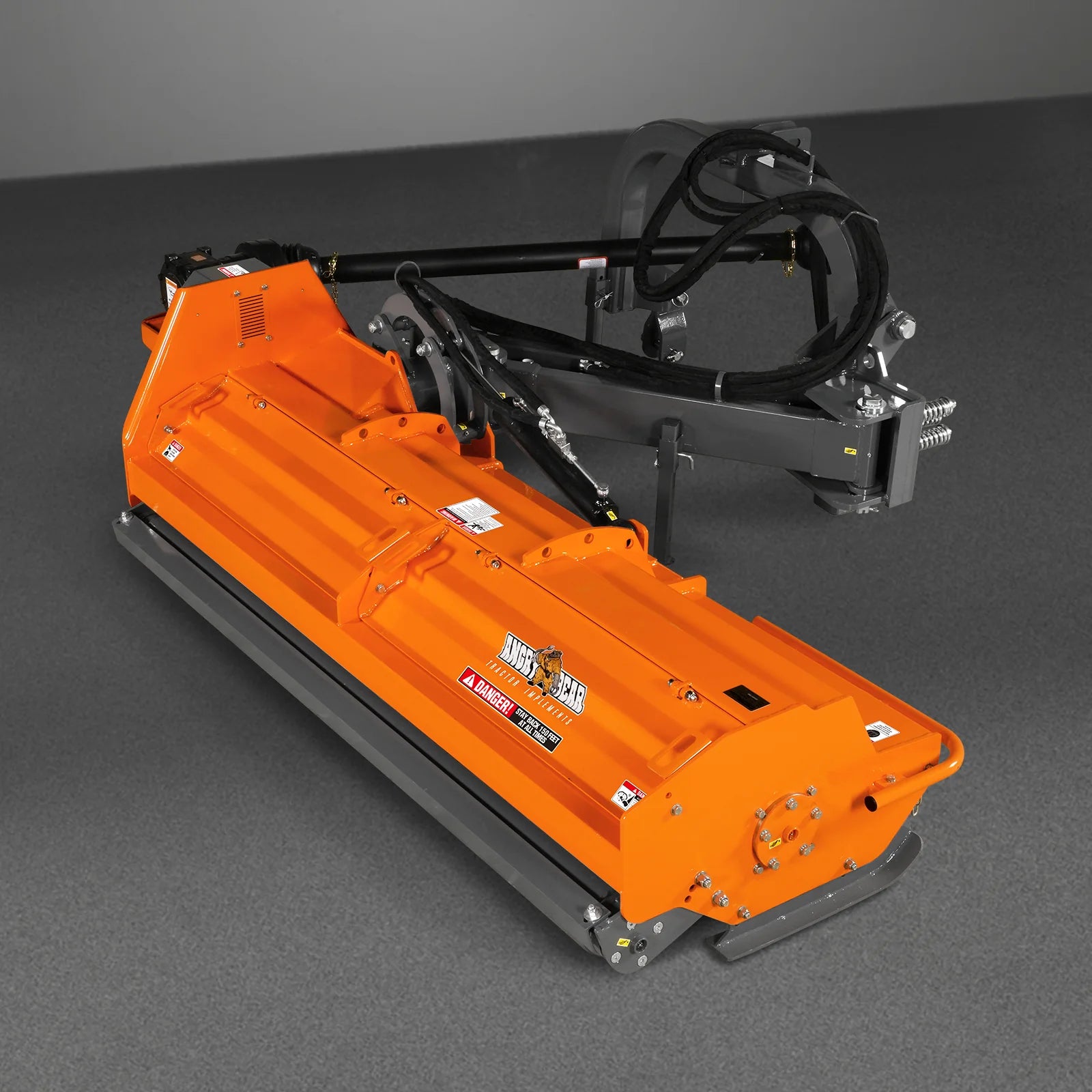

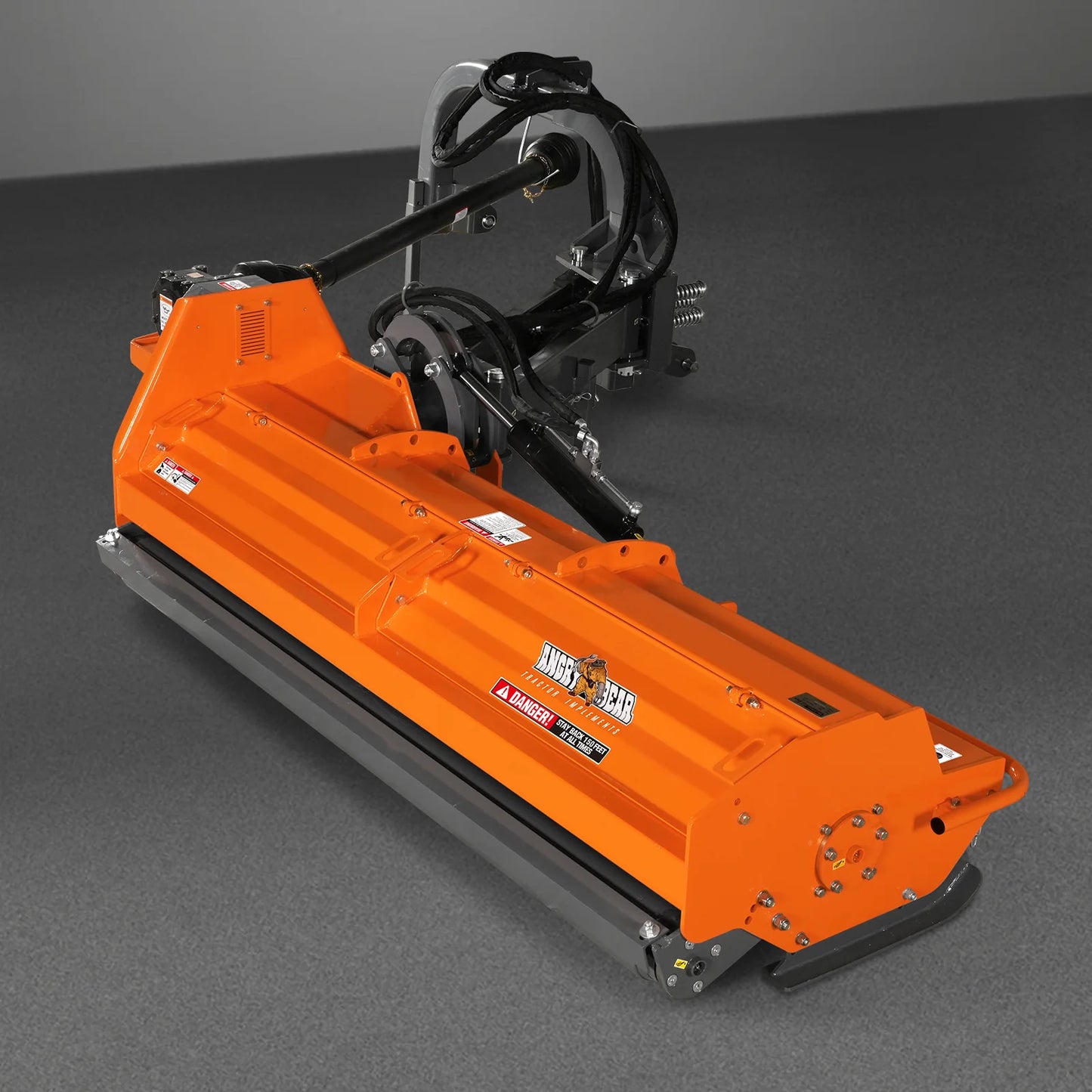

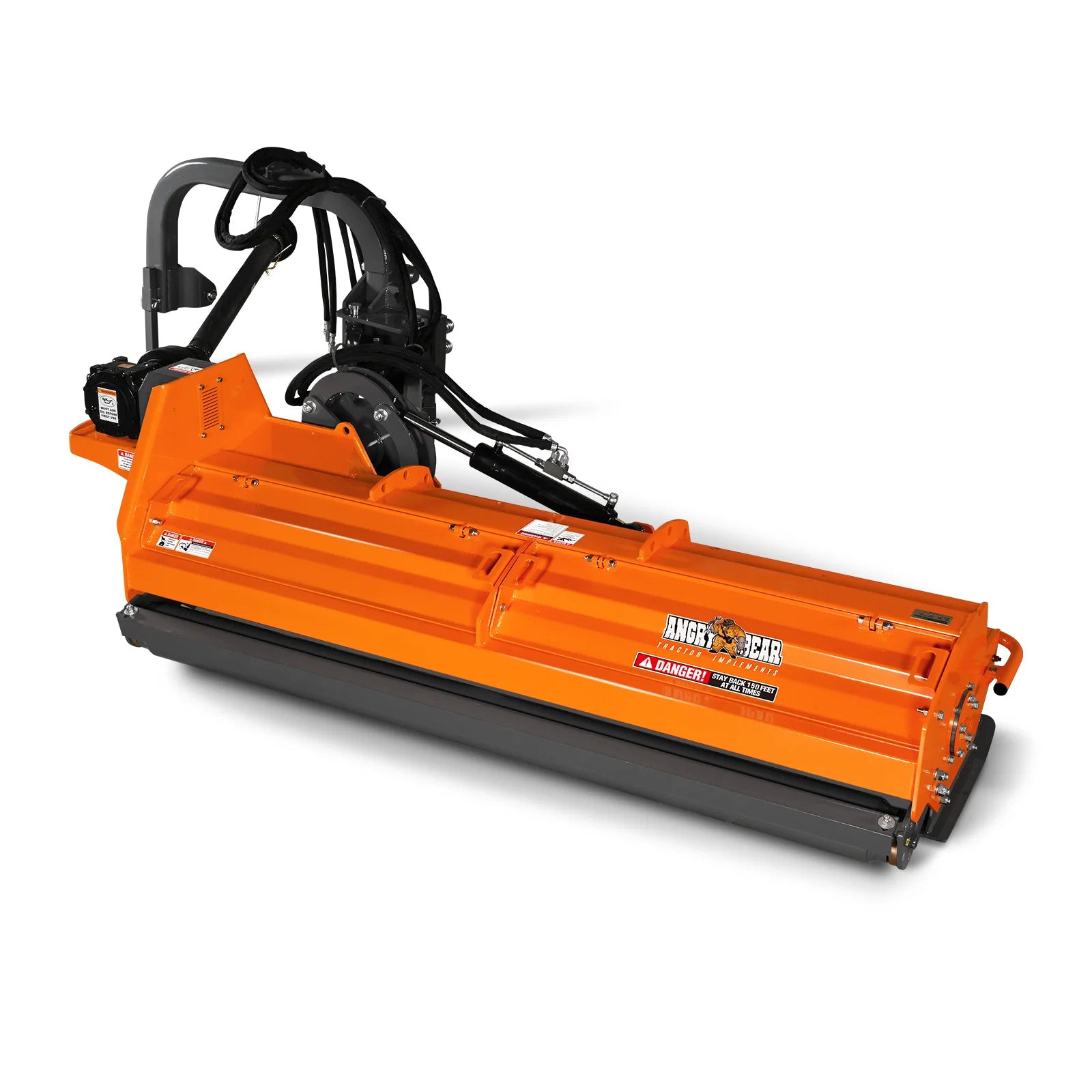

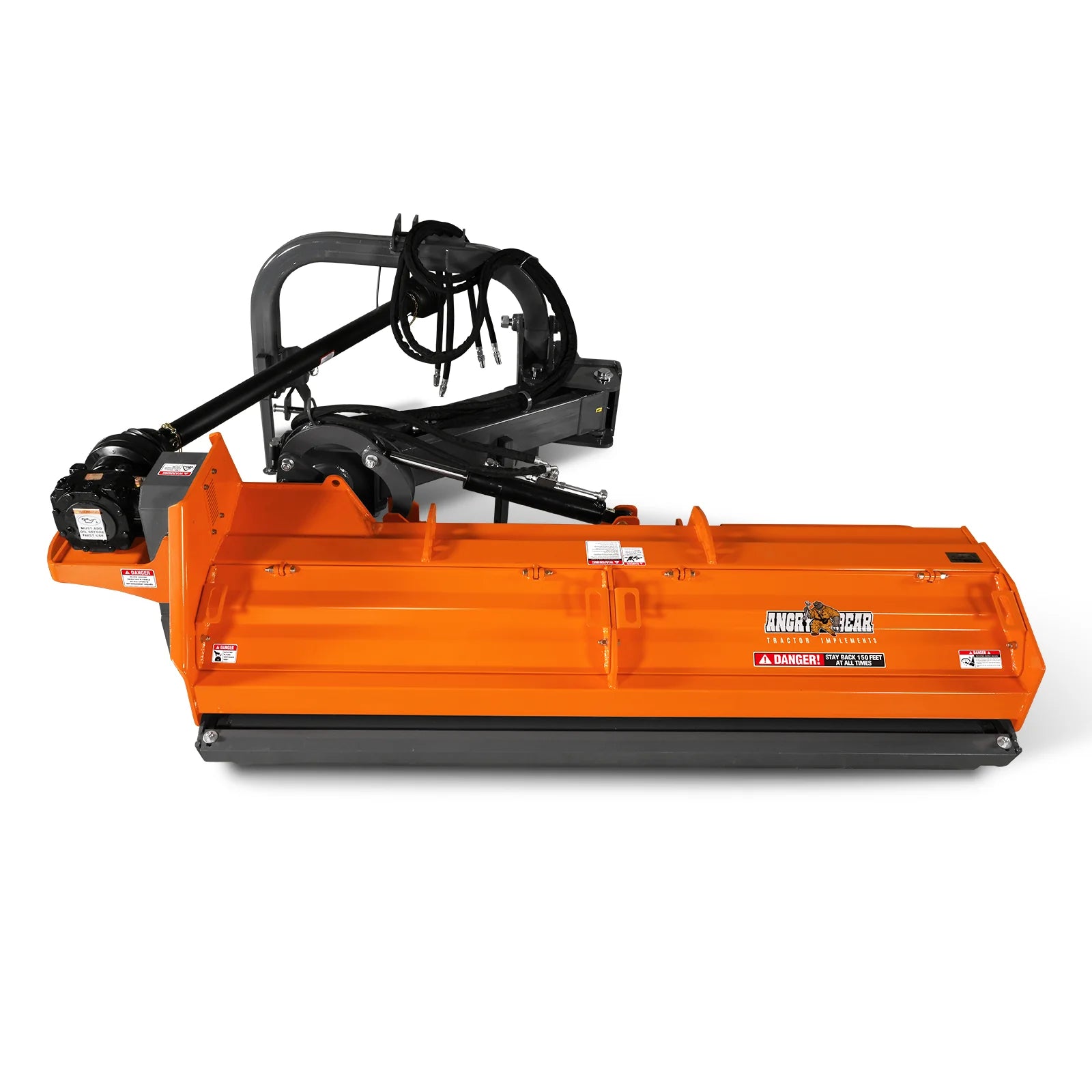

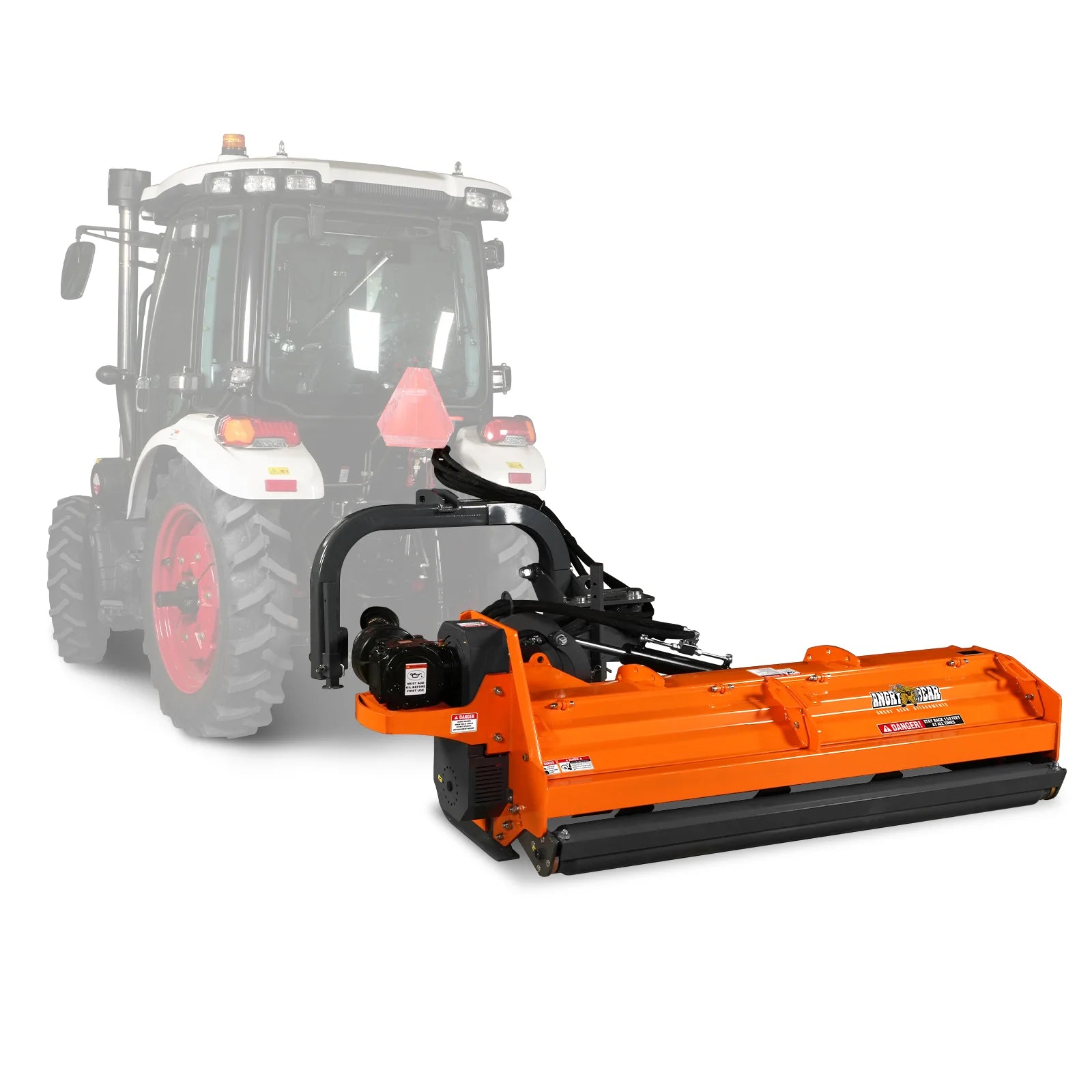

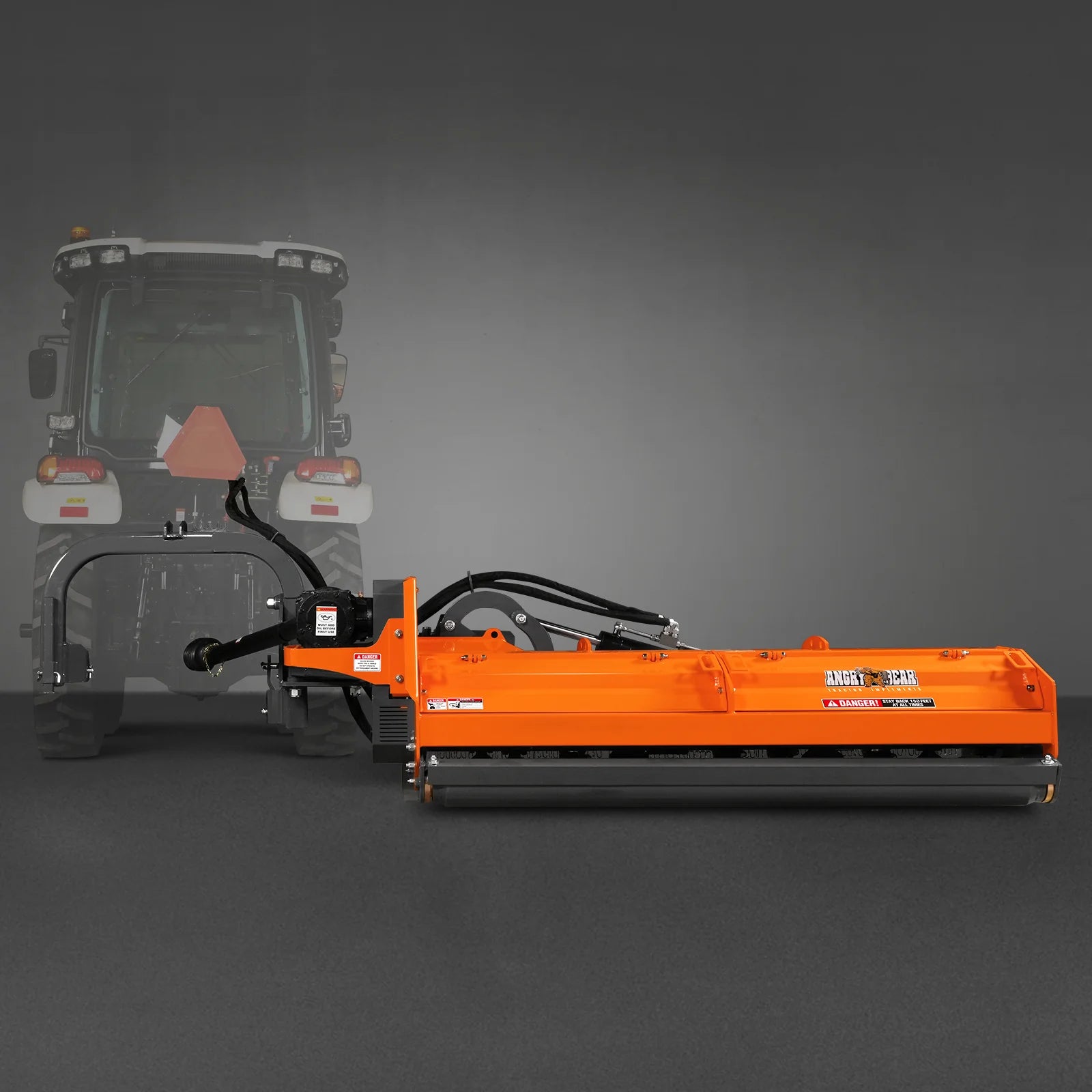

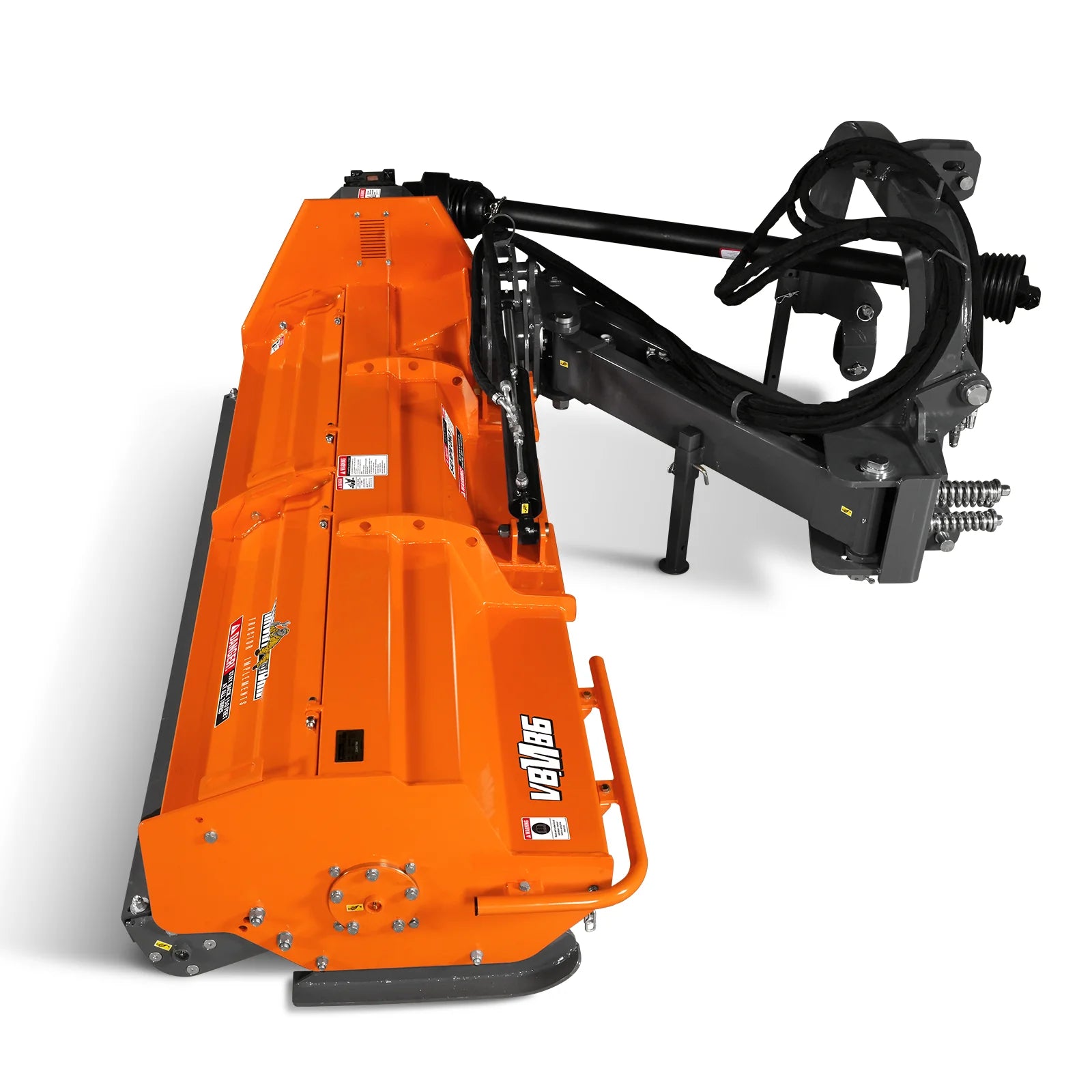

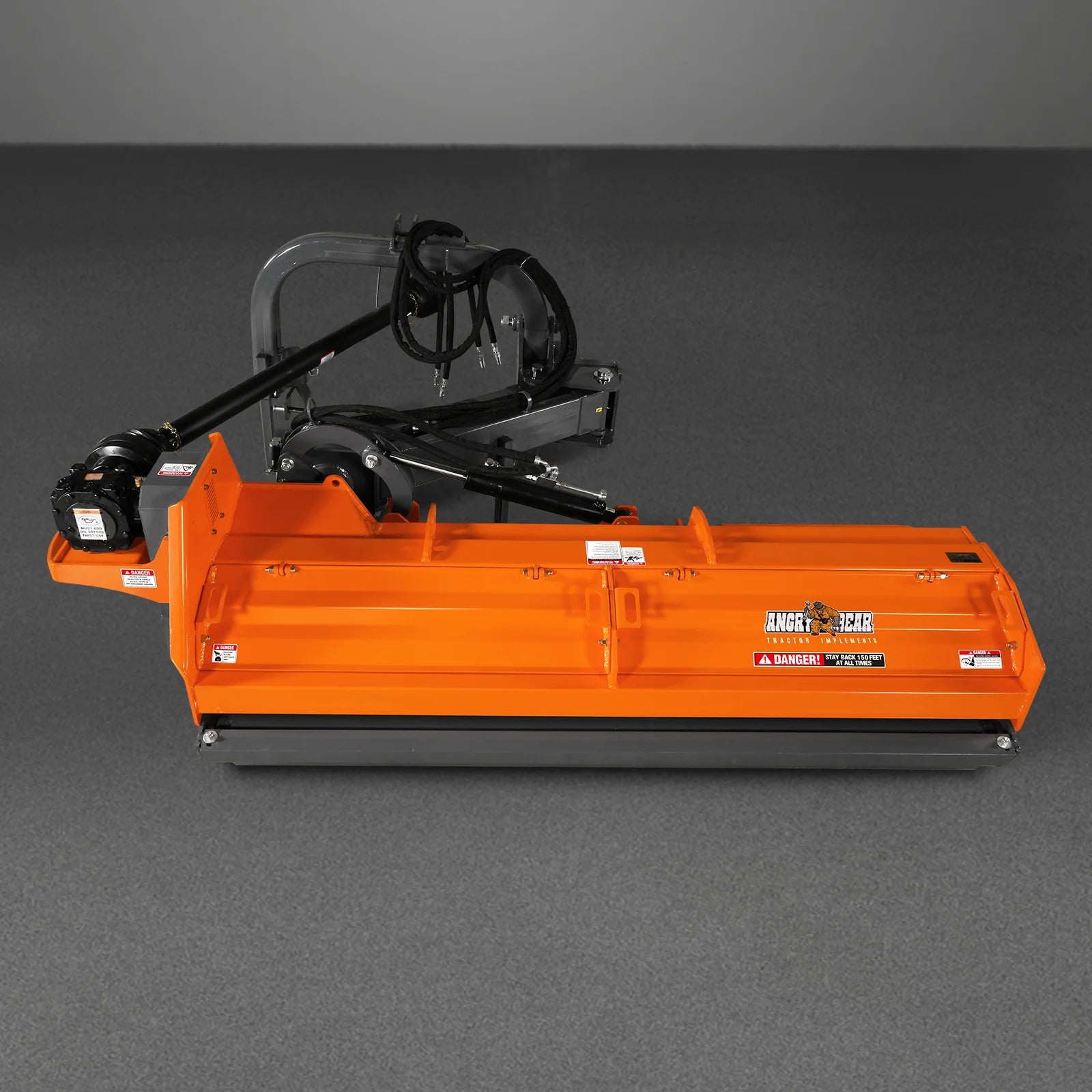

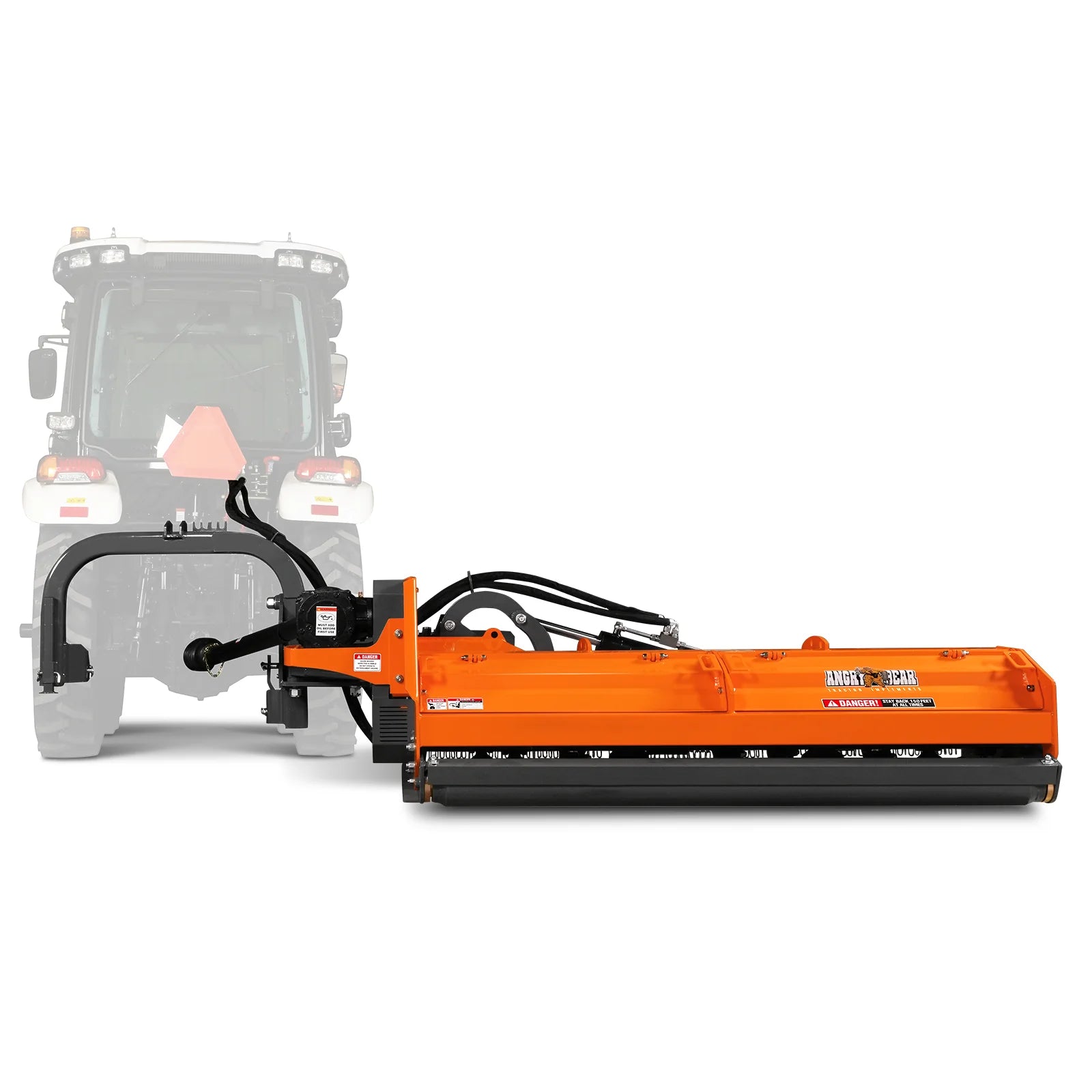

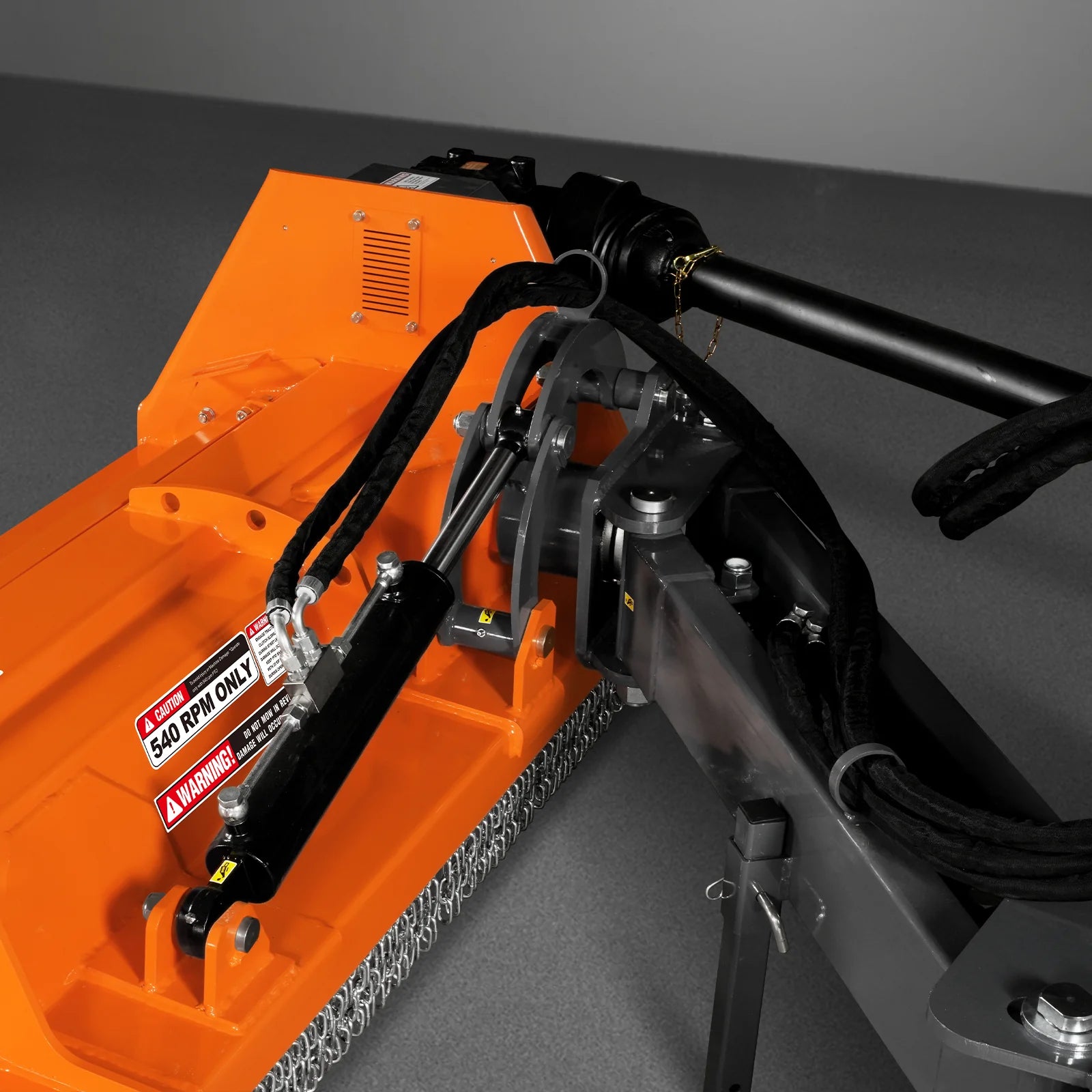

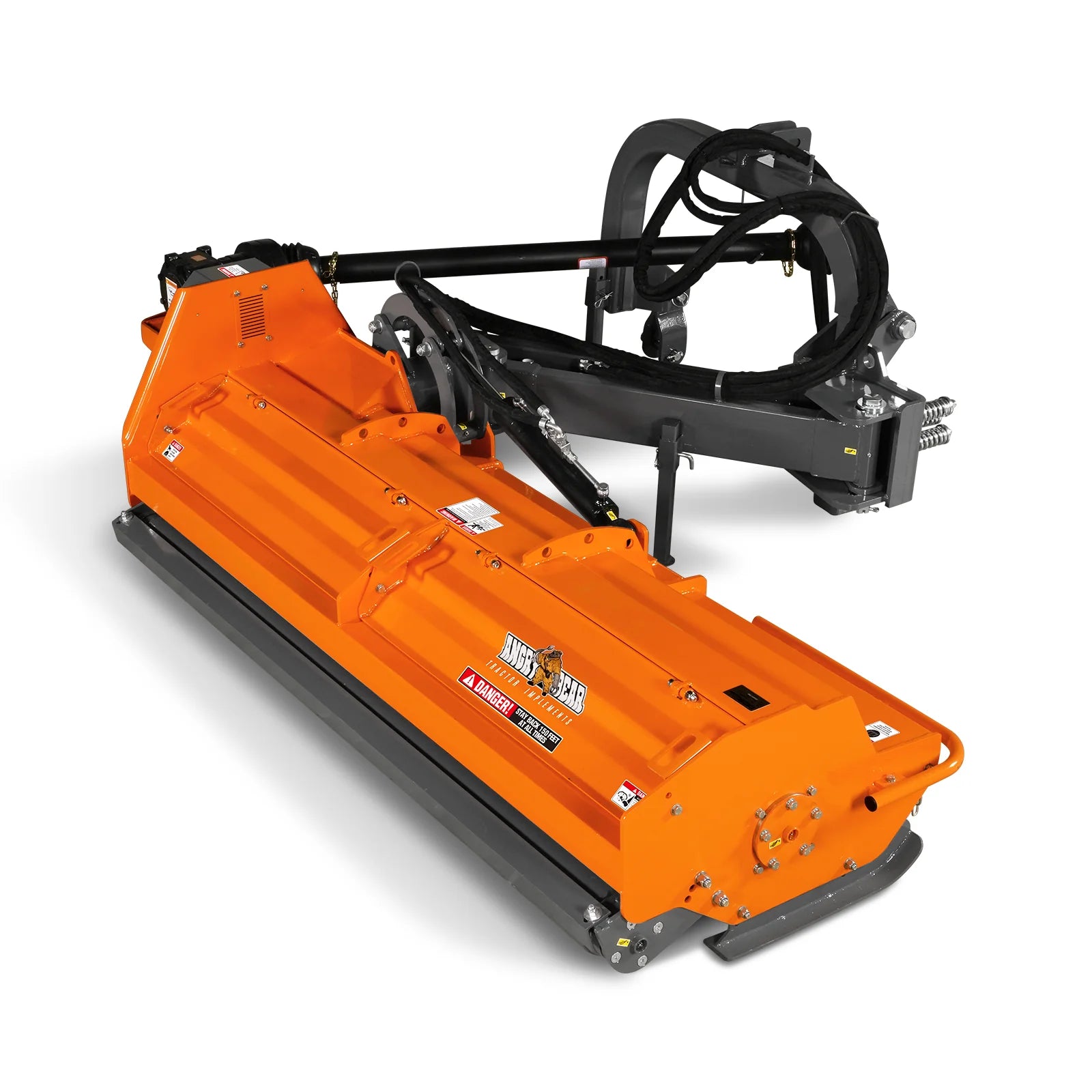

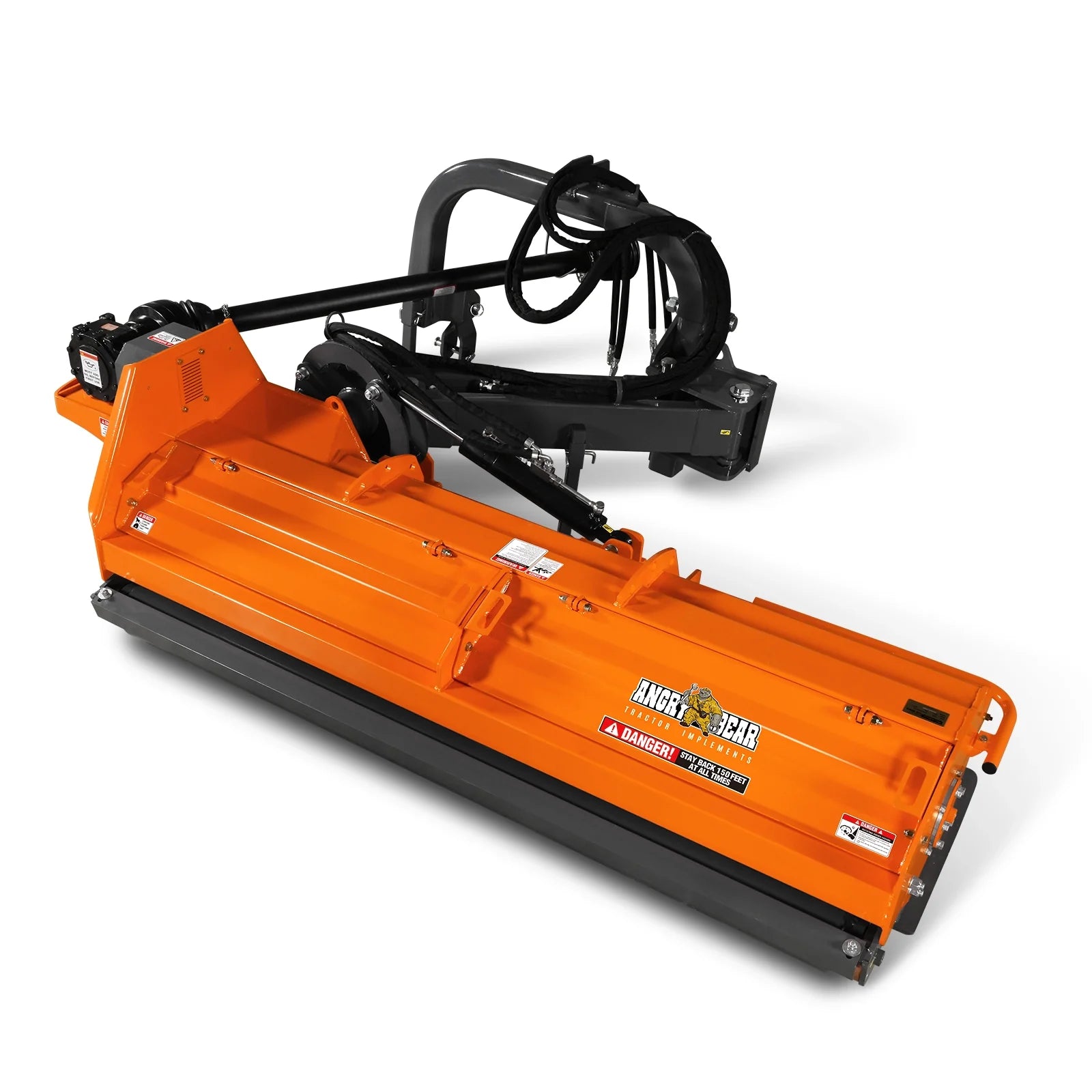

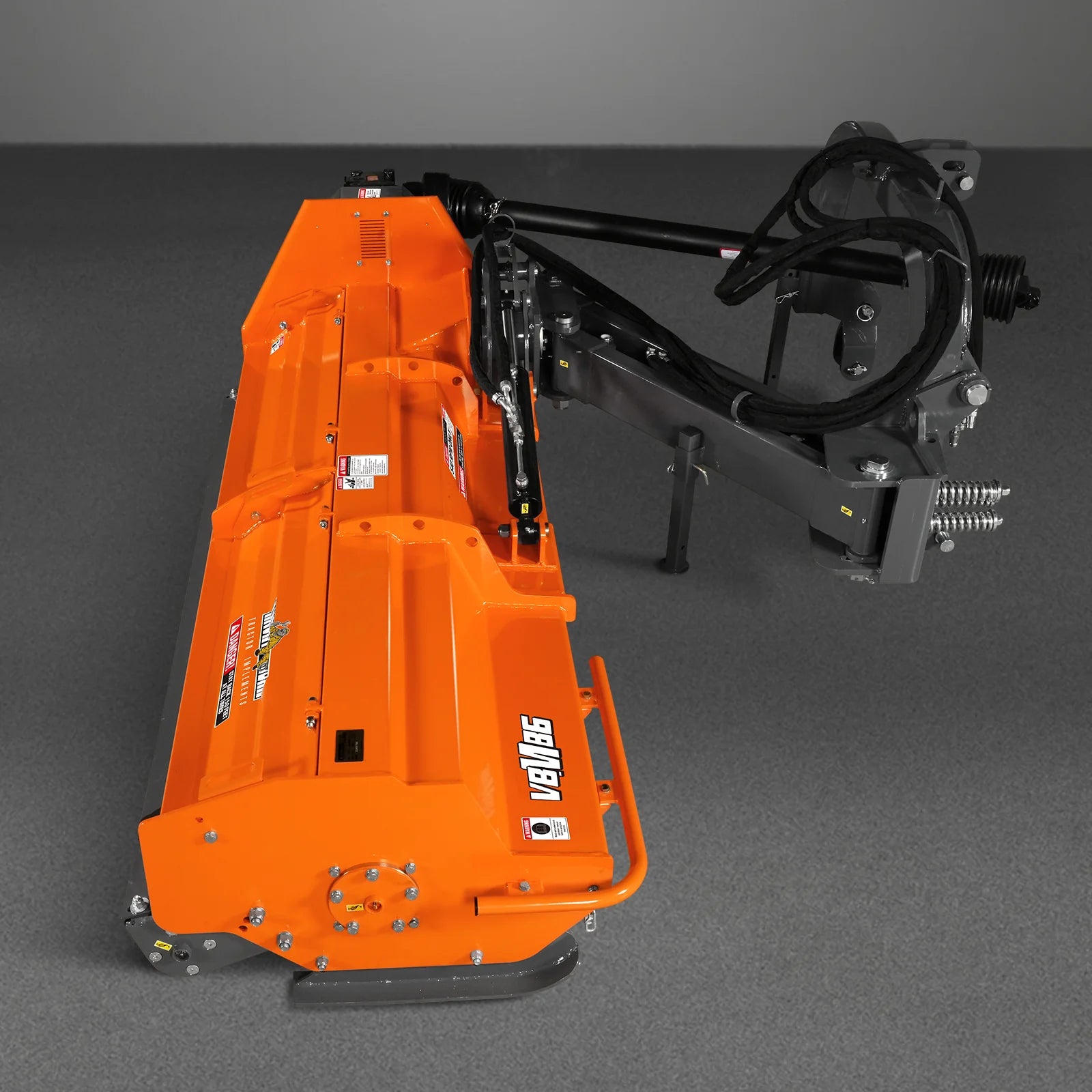

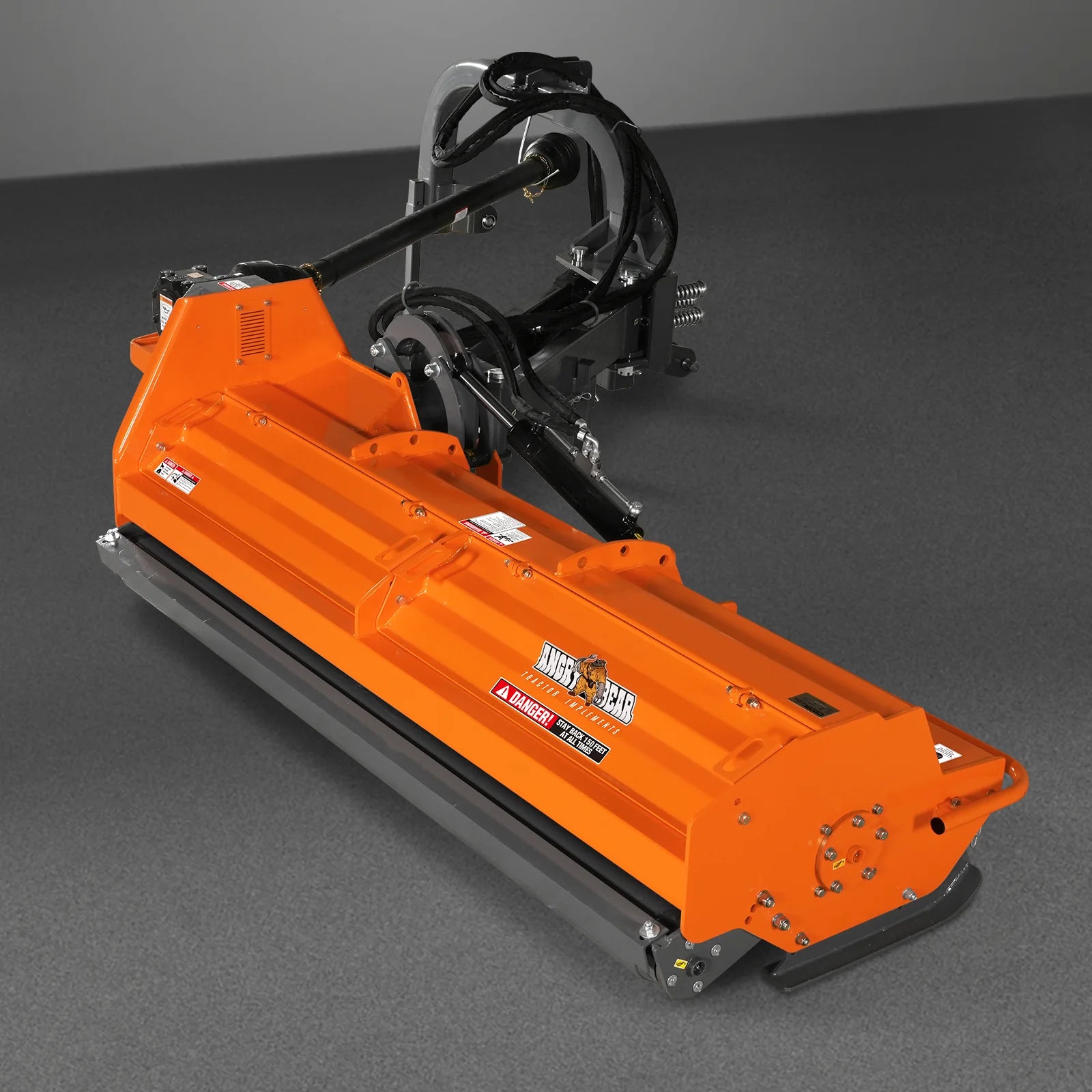

86" Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 90-120HP, PTO Driven, VBM86

86" Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 90-120HP, PTO Driven, VBM86

Regular price $3,671.99 USD
Regular price $5,899.00 USD Sale price $3,671.99 USD
Sale Sold out

🖤 BLACK FRIDAY –30% OFF

⚠️ Quantity is very low

Offer ends in:

00h : 00m : 00s
Taxes included. Shipping calculated at checkout.
Quantity

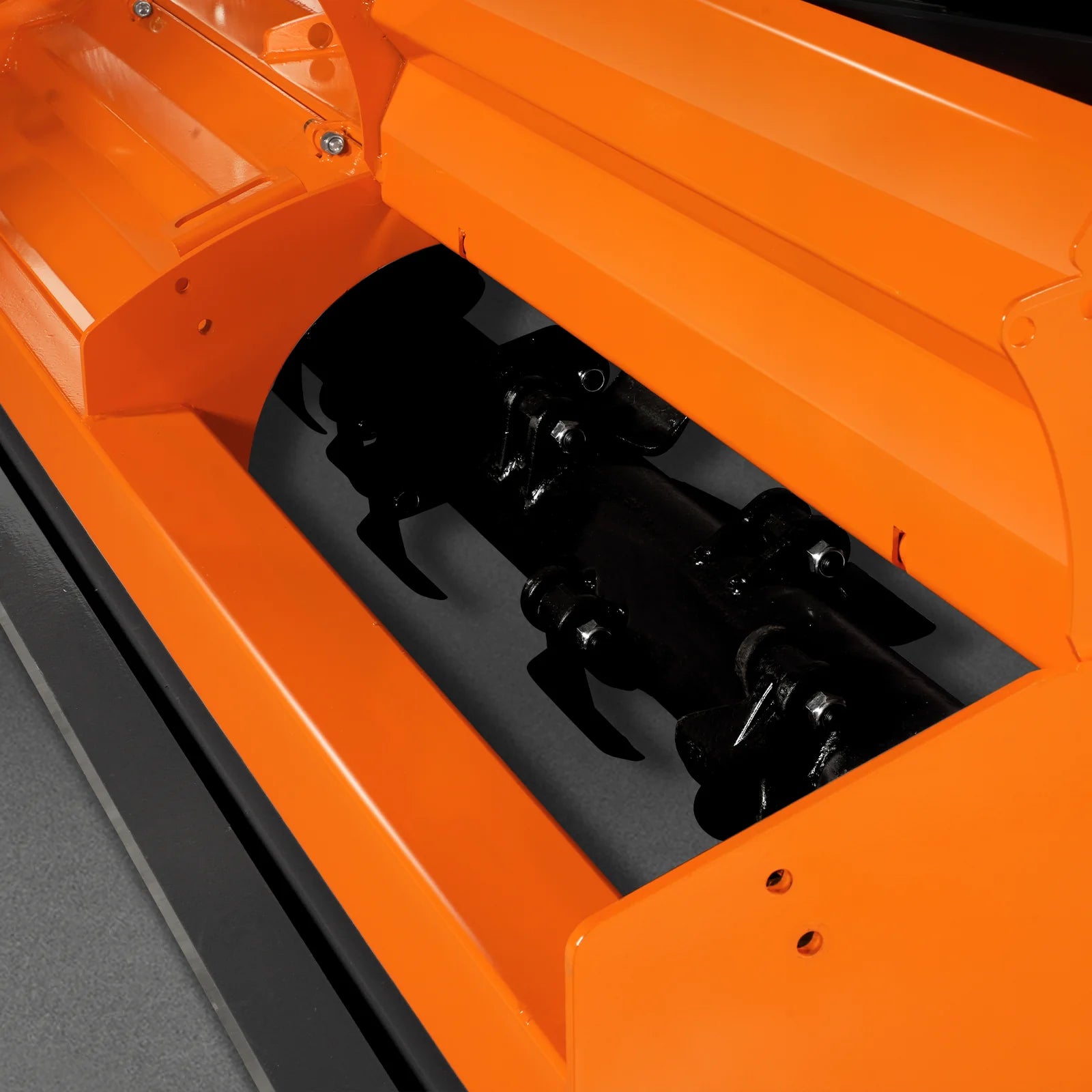

Power Required 90-120 Hp Rotor Diameter 5.5 in
Working Width 86 in Rotor Thickness 0.5 in
Overall Width 101 in Rear Roller Diameter 6 in
Blade Ground Clearance (Four Gears) 0.2-0.9-1.7-2.4 in Rear Roller Thickness 0.25 in
Max. Cutting Diameter Depends On The Type Of Grass PTO Shaft Speed 540 rpm
Offset Distance from The Center (Maximum) 130 in Deck Thickness 2 in

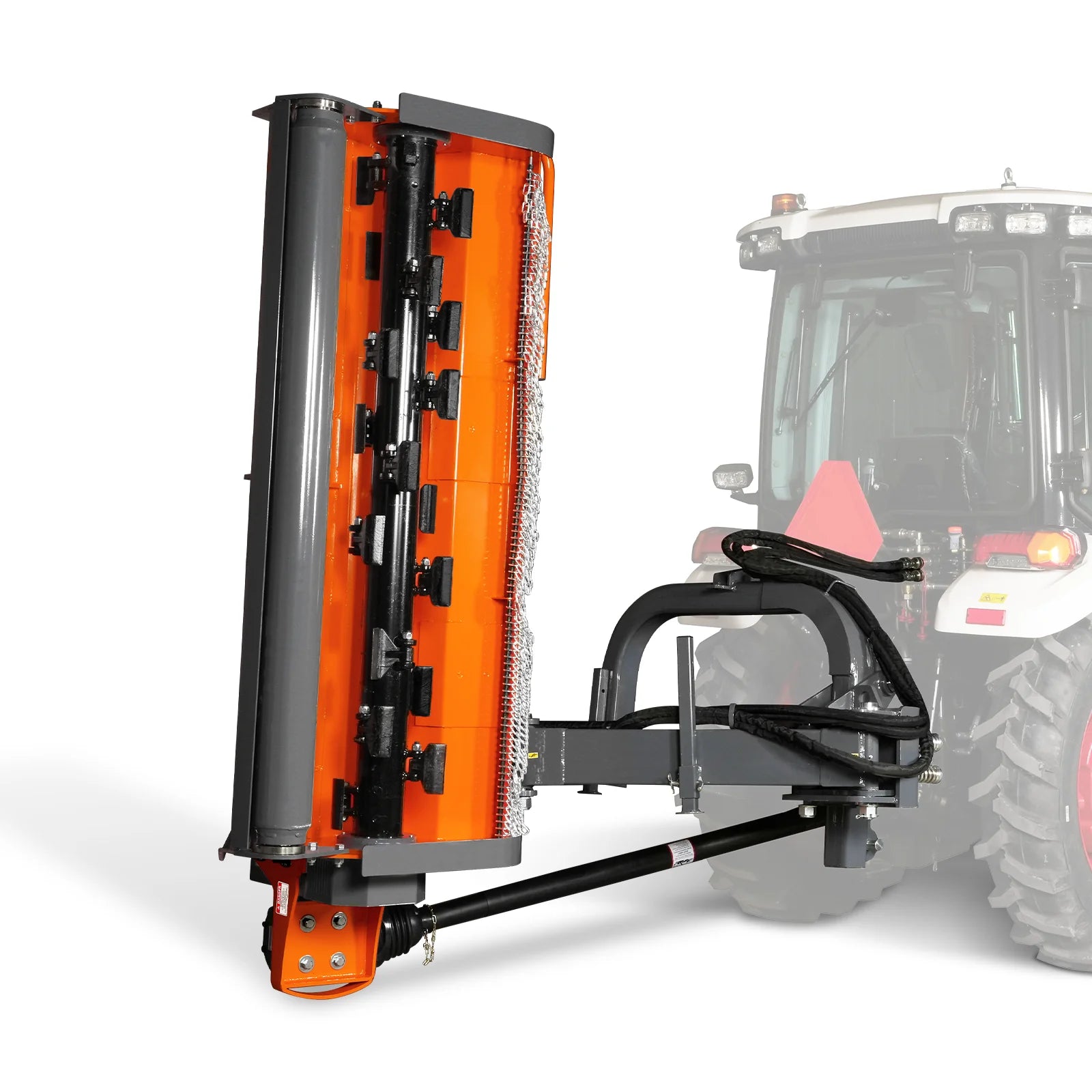

Tilt-Up Angle 90° Side Plate Thickness 0.25 in

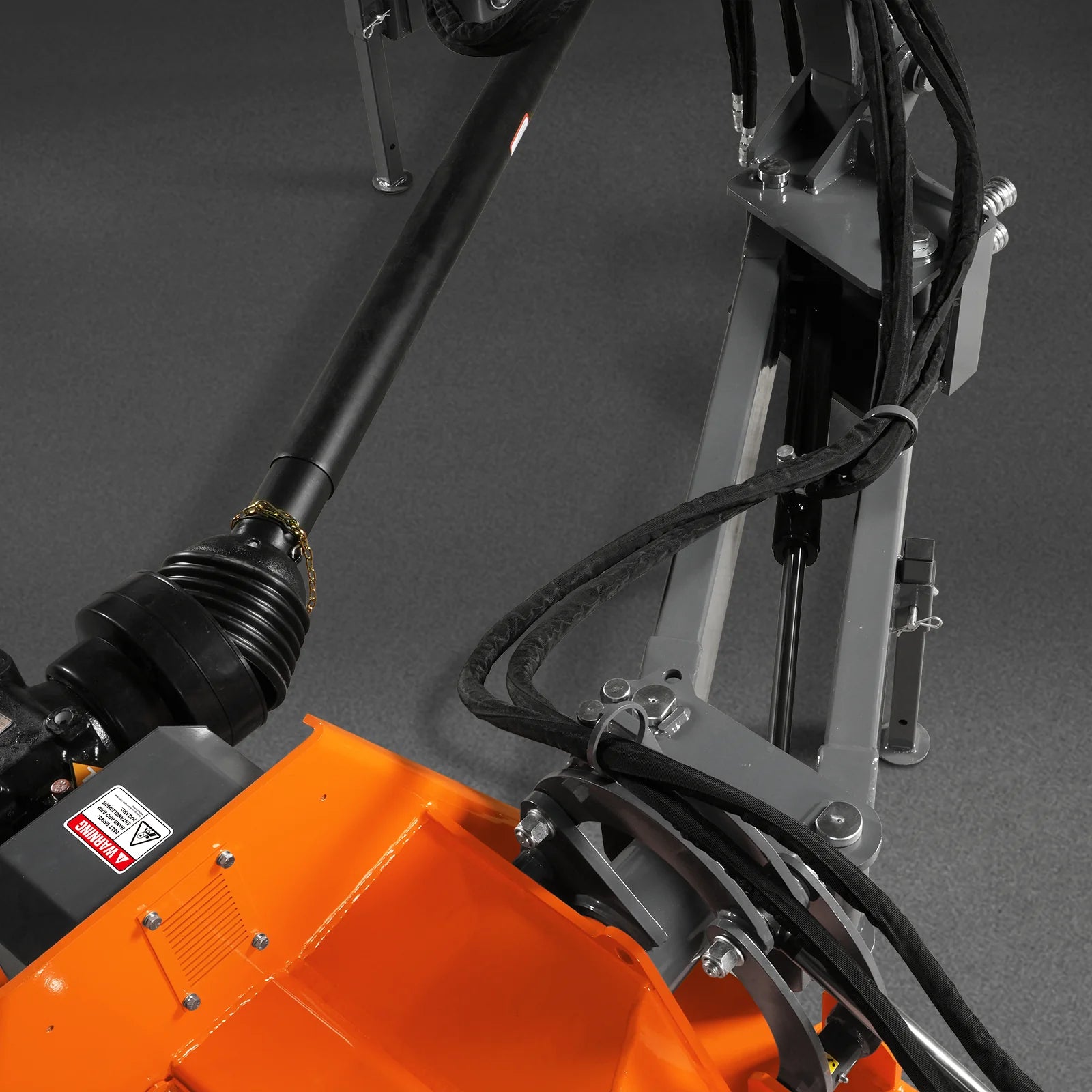

Tilt-Down Angle 55° Driveline Shaft Length T6-LF-73  With Shear Bolt ; 73in-126in
Number Of Blades 20 Spline End 1.375in  Z6

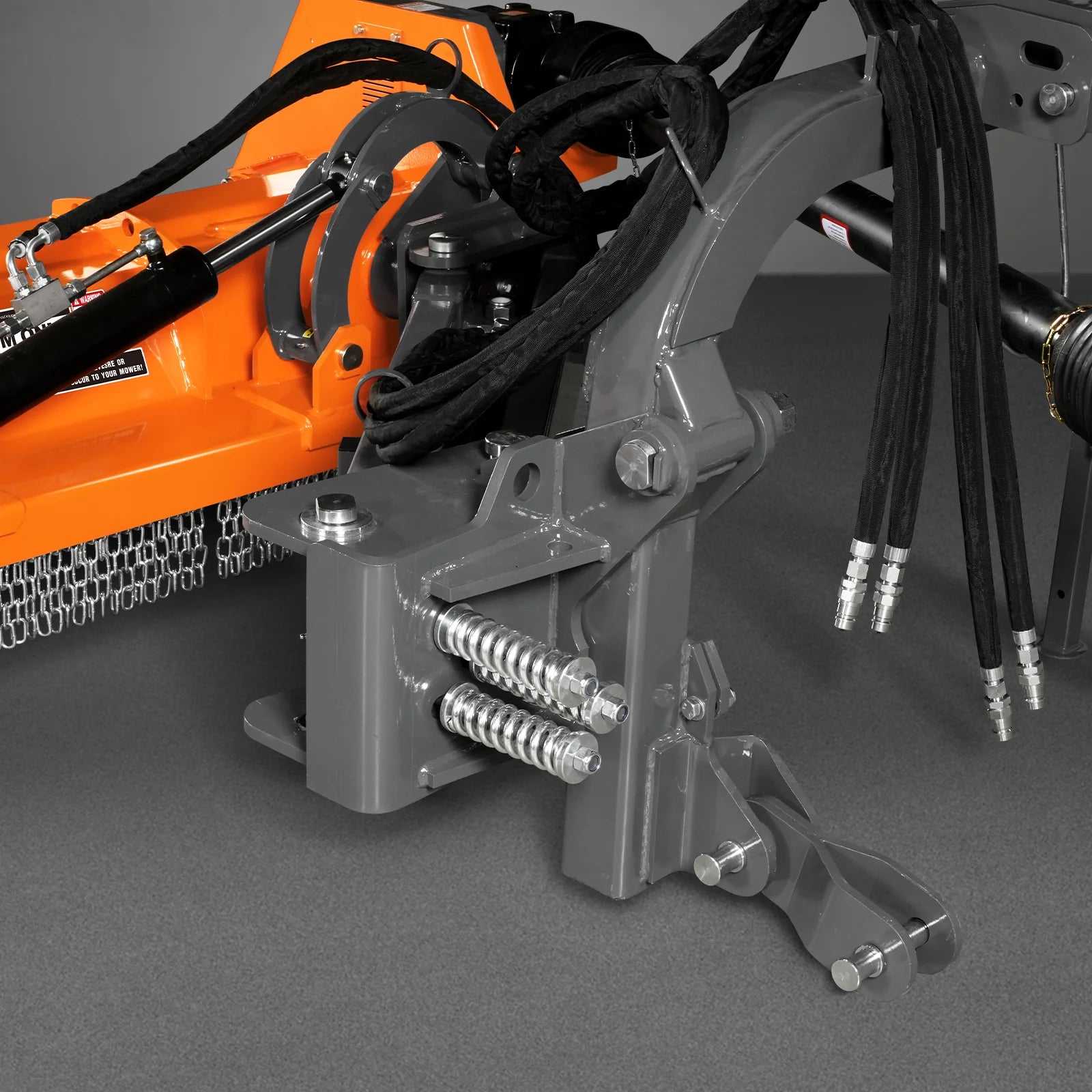

Number of Belts 4 3-Point Hitch CAT 2

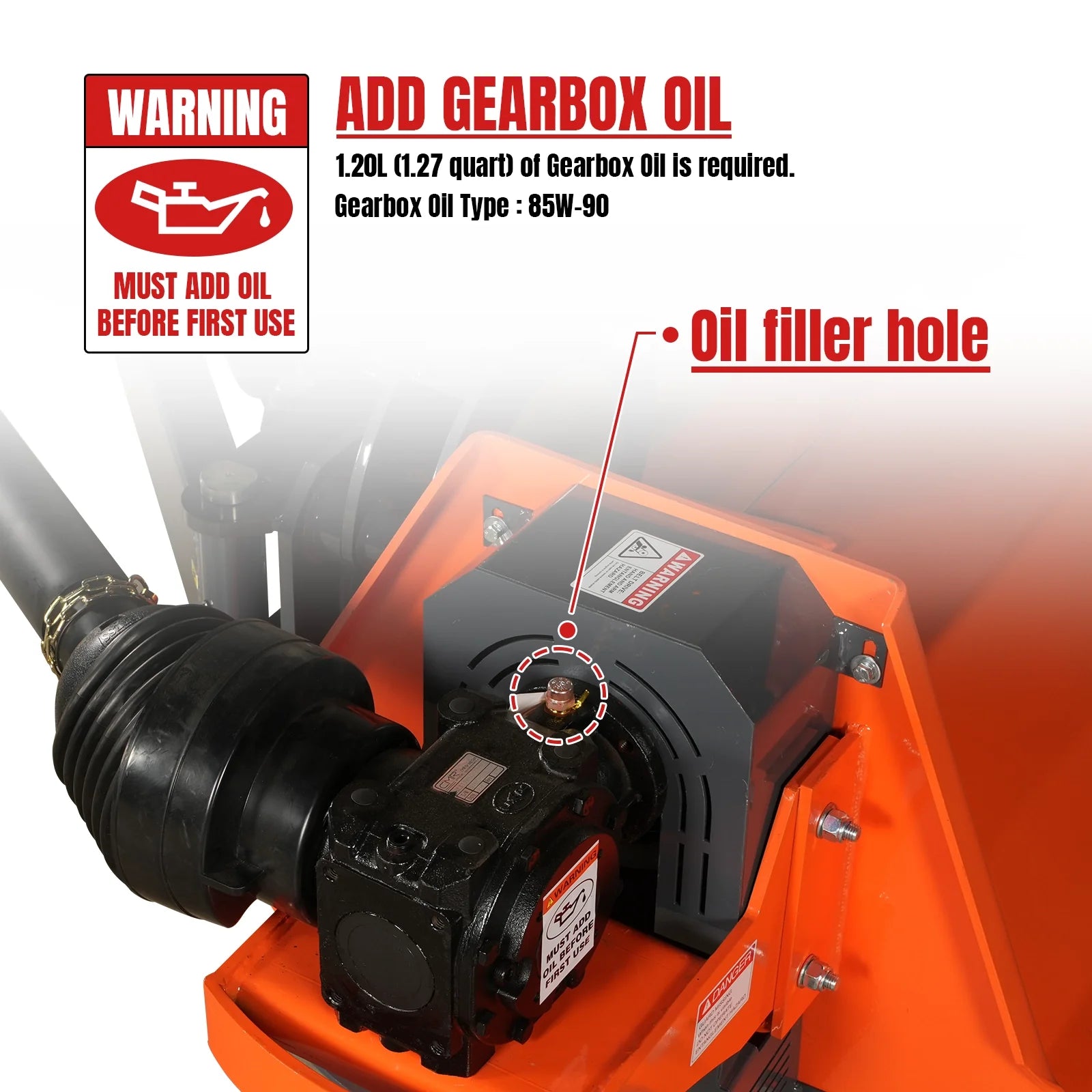

Blade Type Hammer Gearbox 0il Type 85W-90
Blade Weight 2.6 lbs Finish Powder Coating
Blade Material Cast Steel Warranty 1 Year
Belt Adjustment Bolt Tightening Shipping Box 109 X 41 X 31in
Working Efficiency450 cu.ft./Hr. 450 cu.ft./Hr. Weight (N.W./G.W.) 1910 /2121 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
